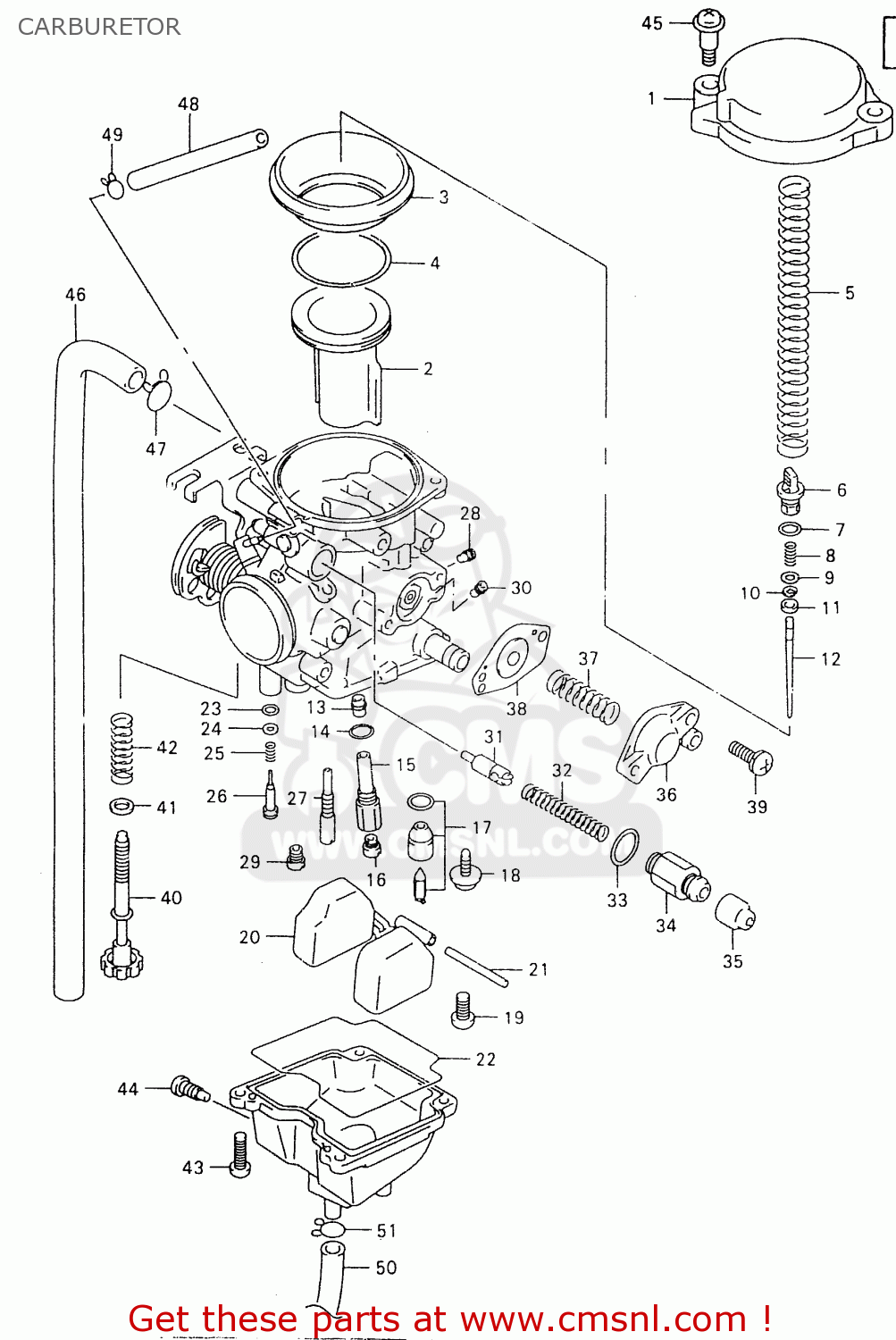

CARBURETOR

ref

part #

description

quantity

0

1320013F00
ref: 0

CARBURETOR ASSY

€ 446.00

0

1320013F20
ref: 0
E17, E22, E24

CARBURETOR ASSY

€ 0.00

0

1320013F50
ref: 0
E18

CARBURETOR ASSY

€ 0.00

1

1350219E00
ref: 1

COVER,DIAPHRAGM

€ 47.00

2

1350113F00
ref: 2

VALVE,PISTON

€ 83.50

3

1350719E00
ref: 3

DIAPHRAGM

€ 33.50

4

1350416E00
ref: 4

RING

€ 4.00

5

1357304F00
ref: 5

SPRING

€ 11.50

6

1341833E00
ref: 6

HOLDER

€ 4.50

7

0928005004
ref: 7

O RING(D:1.9,ID:4.8)

€ 2.00

8

1348104F00
ref: 8

SPRING

€ 2.50

9

1338219E00
ref: 9

WASHER

€ 3.00

10

1339417E60
ref: 10

E RING,MULTIPLE JET NOZZLE

€ 1.50

11

1338733E00
ref: 11

RING

€ 5.00

12

1338313F00
ref: 12
5C60-50-3

NEEDLE,JET

€ 14.00

13

0949400910
ref: 13

JET,NEEDLE(P-0)

€ 38.50

14

1324643010
ref: 14

O RING

€ 4.00

15

1338513F00
ref: 15

HOLDER,JET

€ 29.00

16

0949123012
ref: 16

JET,MAIN(115)

€ 11.50

17

1337004F00
ref: 17

VALVE ASSY,NEEDLE

€ 67.50

18

1360205A10
ref: 18

SCREW

€ 4.00

19

0211204083
ref: 19

SCREW

€ 2.00

20

1325004F00
ref: 20

FLOAT ASSY

€ 27.50

21

1325401010
ref: 21

PIN,FLOAT

€ 3.00

22

1325804F00
ref: 22

GASKET (NAS)

€ 9.00

23

1329529900
ref: 23

O RING,PILOT AIR SCREW

€ 4.00

24

1329129900
ref: 24

WASHER

€ 2.00

25

1326848700
ref: 25

SPRING,THROTTLE SCREW

€ 3.50

26

1327913F00
ref: 26

ADJUSTER

€ 10.50

26

1327913F00
ref: 26
E17, E22, E24

ADJUSTER

€ 10.50

27

0949217016
ref: 27

JET,PILOT(17.5)

€ 15.50

28

0949287002
ref: 28

JET,MAIN(87.5)

€ 16.00

29

0949152003
ref: 29

JET,MAIN(52.5)

€ 9.00

30

0949328013
ref: 30

JET,PILOT AIR(140)

€ 10.50

30

0949324013
ref: 30
E17, E22, E24

JET,PILOT AIR(120)

€ 15.50

31

1341124D00
ref: 31

PLUNGER

€ 25.50

32

1341707F00
ref: 32

SPRING

€ 8.00

33

1327847090
ref: 33

O RING

€ 2.00

34

1341807F00
ref: 34

HOLDER,GUIDE

€ 12.50

35

1368104010
ref: 35

CAP

€ 3.00

36

1350210F00
ref: 36

COVER ASSY

€ 26.00

37

1327113F00
ref: 37

SPRING

€ 4.00

38

1348013F00
ref: 38

DIAPHRAGM ASSY

€ 21.50

39

1360104148
ref: 39

SCREW

€ 2.50

40

1326713F00
ref: 40

SCREW,ADJUST

€ 12.50

41

1328507F00
ref: 41

PACKING (NAS)

€ 3.50

42

1334282370
ref: 42

SPRING

€ 4.50

43

0211204107
ref: 43

SCREW

€ 2.00

44

1324713A00
ref: 44

SCREW,DRAIN

€ 5.50

45

1324733E00
ref: 45

SCREW

€ 3.00

46

1368613F00
ref: 46

HOSE

€ 35.00

47

1367106A10
ref: 47

CLIP

€ 3.00

48

1368613F10
ref: 48

HOSE

€ 19.50

49

1367113F00
ref: 49

CLIP

€ 4.00

50

1368613F20
ref: 50

HOSE

€ 8.00

51

0940108410
ref: 51

CLIP

€ 3.00
