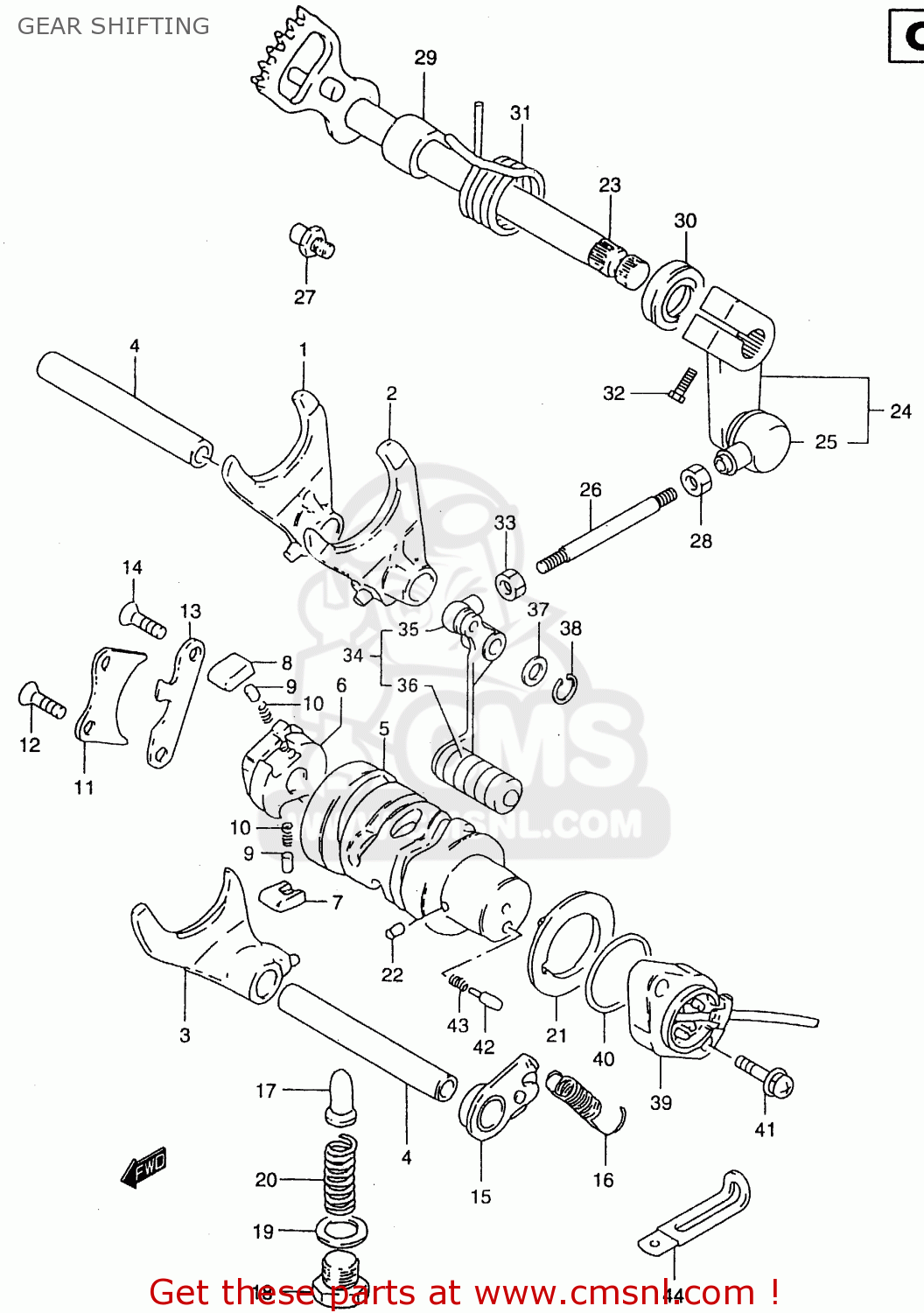

GEAR SHIFTING

ref

part #

description

quantity

1

2521132402
ref: 1

FORK,GEAR SHIFT NO.1

€ 71.50

2

2522132403
ref: 2

FORK,GEAR SHIFT NO.2

€ 71.50

3

2523113F00
ref: 3

FORK,GEAR SHIFT NO.3

€ 77.00

4

2541114331
ref: 4

SHAFT,GEAR SHIFT FORK

€ 14.00

5

2531013F00
ref: 5

CAM,GEAR SHIFT

€ 132.50

6

2532231310
ref: 6

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

7

2532334201
ref: 7

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532434201
ref: 8

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533138201
ref: 11

LIFTER,GEAR SHIFT POLE

€ 4.50

12

0212206123
ref: 12

SCREW

€ 3.00

13

2534138200
ref: 13

GUIDE,GEAR SHIFT CAM

€ 8.50

14

0212206123
ref: 14

SCREW

€ 3.00

15

2535034000
ref: 15

STOPPER,GEAR SHIFT CAM

€ 10.50

16

0944308026
ref: 16

SPRING

€ 14.50

17

2535130010
ref: 17

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

18

0924714026
ref: 18

PLUG(14X12)

€ 3.50

19

0916814002
ref: 19

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

20

0944011026
ref: 20

SPRING

€ 7.50

21

2538113F00
ref: 21

PLATE,GEAR SHIFT CAM STOPPER

€ 15.50

22

0422104069
ref: 22

PIN

€ 2.00

23

2551038200
ref: 23

SHAFT,GEAR SHIFT

€ 83.50

24

2552022A00
ref: 24

ARM,GEAR SHIFT LINK

€ 46.50

25

2552647000
ref: 25

COVER,DUST

€ 3.50

26

2552513F00
ref: 26

ROD,GEAR SHIFT LINK

€ 19.00

27

2567101000
ref: 27

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0914006011
ref: 28

NUT

€ 1.50

29

0918012068
ref: 29

SPACER(12X20X15.3)

€ 3.00

30

0928512002
ref: 30

OIL SEAL

€ 7.00

31

0944426004
ref: 31

SPRING

€ 4.00

32

0150006207
ref: 32

BOLT

€ 2.00

33

0831000067
ref: 33

NUT

€ 2.50

34

2560013F00
ref: 34

LEVER ASSY,GEAR SHIFT

€ 53.00

35

2552647000
ref: 35

COVER,DUST

€ 3.50

36

2565220C00
ref: 36

RUBBER,GEAR SHIFT PEDAL

€ 8.00

37

0916012011
ref: 37

WASHER(12.5X20X1)

€ 1.50

38

0833131126
ref: 38

CIRCLIP,12 MM

€ 2.00

39

3772047D00
ref: 39

BASE ASSY,NEUTRAL SW TERMINAL

€ 103.50

40

0928026003
ref: 40

O-RING (D:2.4 ID:26.2)

€ 2.50

41

0211205203
ref: 41

SCREW

€ 2.50

42

0920905011
ref: 42

PIN(5X15.5)

€ 2.00

43

0944004010
ref: 43

SPRING

€ 1.50

44

0940406432
ref: 44

CLAMP(L:65)

€ 2.50
