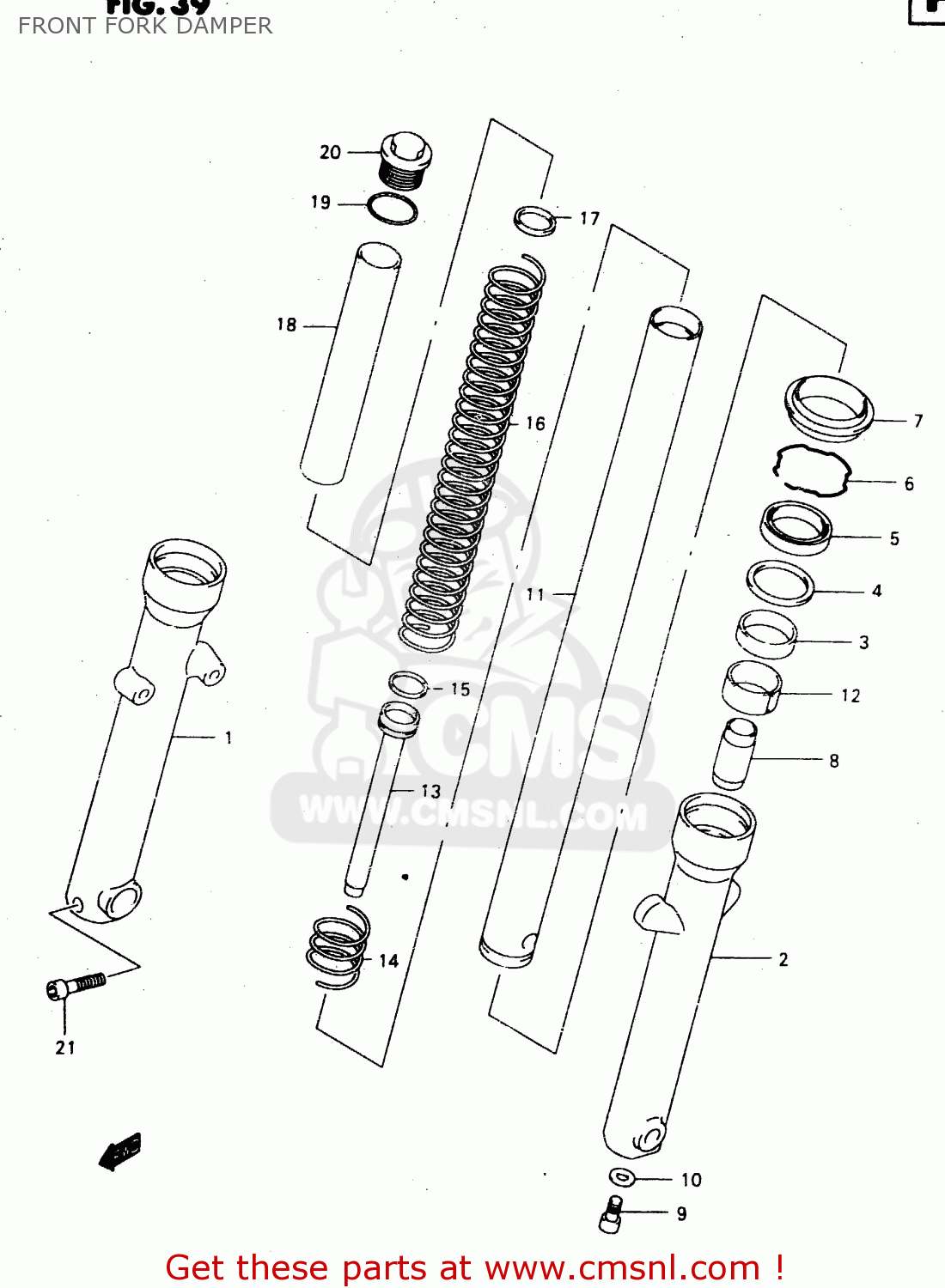

FRONT FORK DAMPER

ref

part #

description

quantity

0

5110312F00
ref: 0

DAMPER ASSY,FR FORK,R

€ 410.50

0

5110412F00
ref: 0

DAMPER ASSY,FR FORK,L

€ 410.50

1

5113012F00
ref: 1

TUBE,OUTER,R

€ 303.50

2

5114012F00
ref: 2

TUBE,OUTER,L

€ 296.00

3

5115212F00
ref: 3

BUSHING,GUIDE

€ 10.50

4

5116825D00
ref: 4

SPACER,SEAL

€ 5.50

5

5115325D00
ref: 5

OIL SEAL,FRONT FORK

€ 15.00

6

5155625D00
ref: 6

RING,STOPPER

€ 3.00

7

5117325D00
ref: 7

SEAL,DUST

€ 15.00

8

5119525D00
ref: 8

PIECE,OIL LOCK

€ 19.00

9

5114742AA0
ref: 9

BOLT,CENTER (8X18)

€ 3.00

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5111012F00
ref: 11

TUBE,INNER

€ 296.00

12

5112125D00
ref: 12

BUSHING,SLIDE

€ 10.50

13

5114612F00
ref: 13

PIPE,SEAT

€ 30.00

14

5117725D00
ref: 14

SPRING,REBOUND

€ 8.50

15

5119625D00
ref: 15

RING,PISTON

€ 7.50

16

5117112F00
ref: 16

SPRING,FR

€ 14.00

17

5119225D00
ref: 17

JOINT,SPRING

€ 4.50

18

5117625D00
ref: 18

SPACER,SPRING

€ 14.00

19

5111725D00
ref: 19

O RING

€ 4.50

20

5118912F00
ref: 20

BOLT,FR FORK

€ 23.00

21

0713008357
ref: 21

BOLT

€ 4.50
