CRANKCASE

GZ250 2000 (Y) (E01)

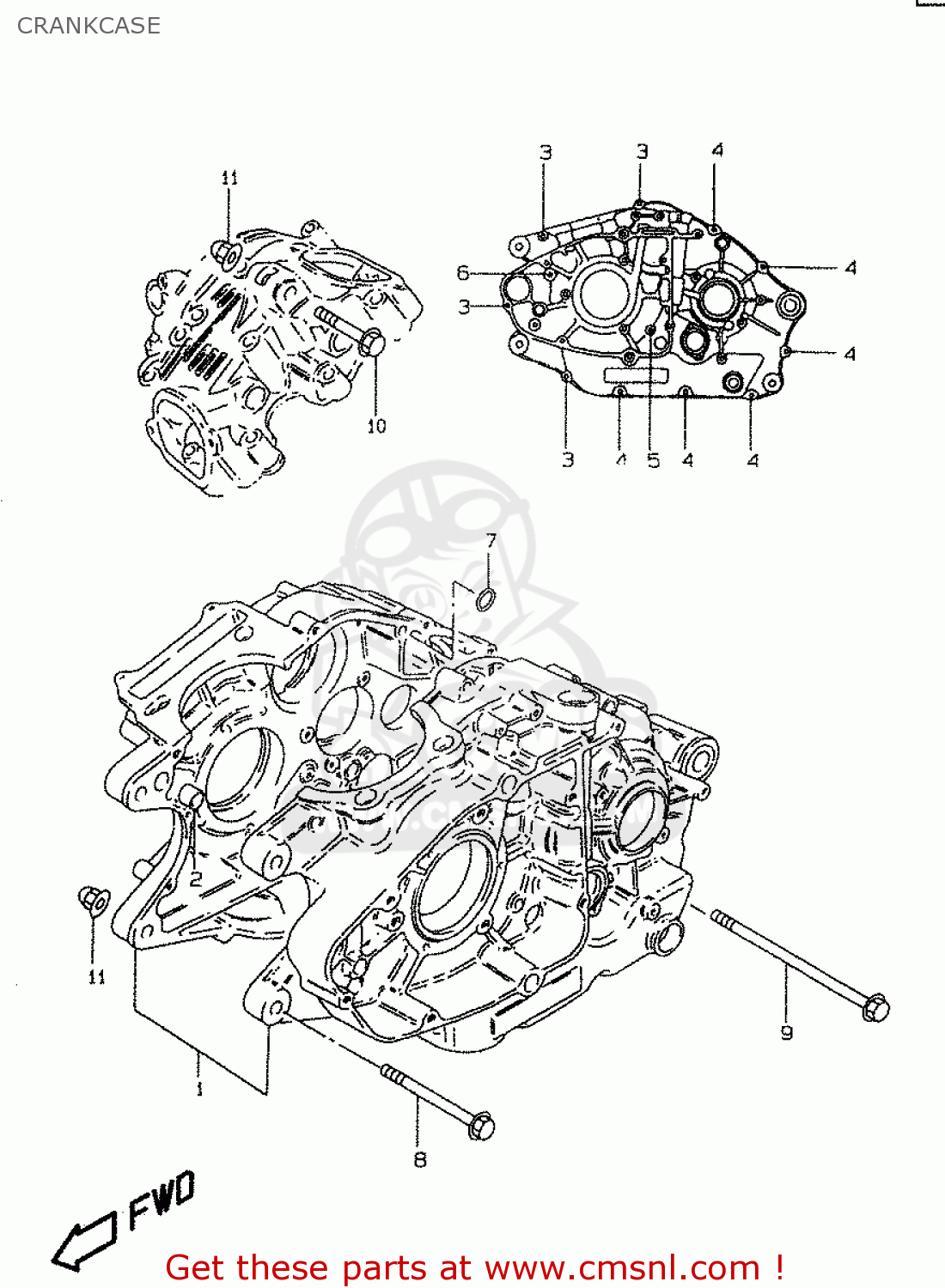

Crankcase diagram GZ250 2000 (Y) (E01)

CRANKCASE GZ250 2000 (Y) (E01)

CRANKCASE GZ250 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1

1130038863
ref: 1

CRANKCASE SET

€ 622.50

2

0421113189
ref: 2

PIN

€ 2.50

3

0154706357
ref: 3

BOLT

€ 2.50

4

0154706457
ref: 4

BOLT

€ 2.50

5

0154706553
ref: 5

BOLT

€ 3.00

6

0154706603
ref: 6

BOLT

€ 3.50

7

0928010016
ref: 7

O RING(D:1.9,ID:9.8)

€ 3.50

8

0910308037
ref: 8

BOLT(8X67)

€ 6.50

9

0910308070
ref: 9

BOLT(8X100)

€ 5.00

10

0910308081
ref: 10

BOLT(8X50)

€ 3.50

11

0831931087
ref: 11

NUT

€ 2.50
