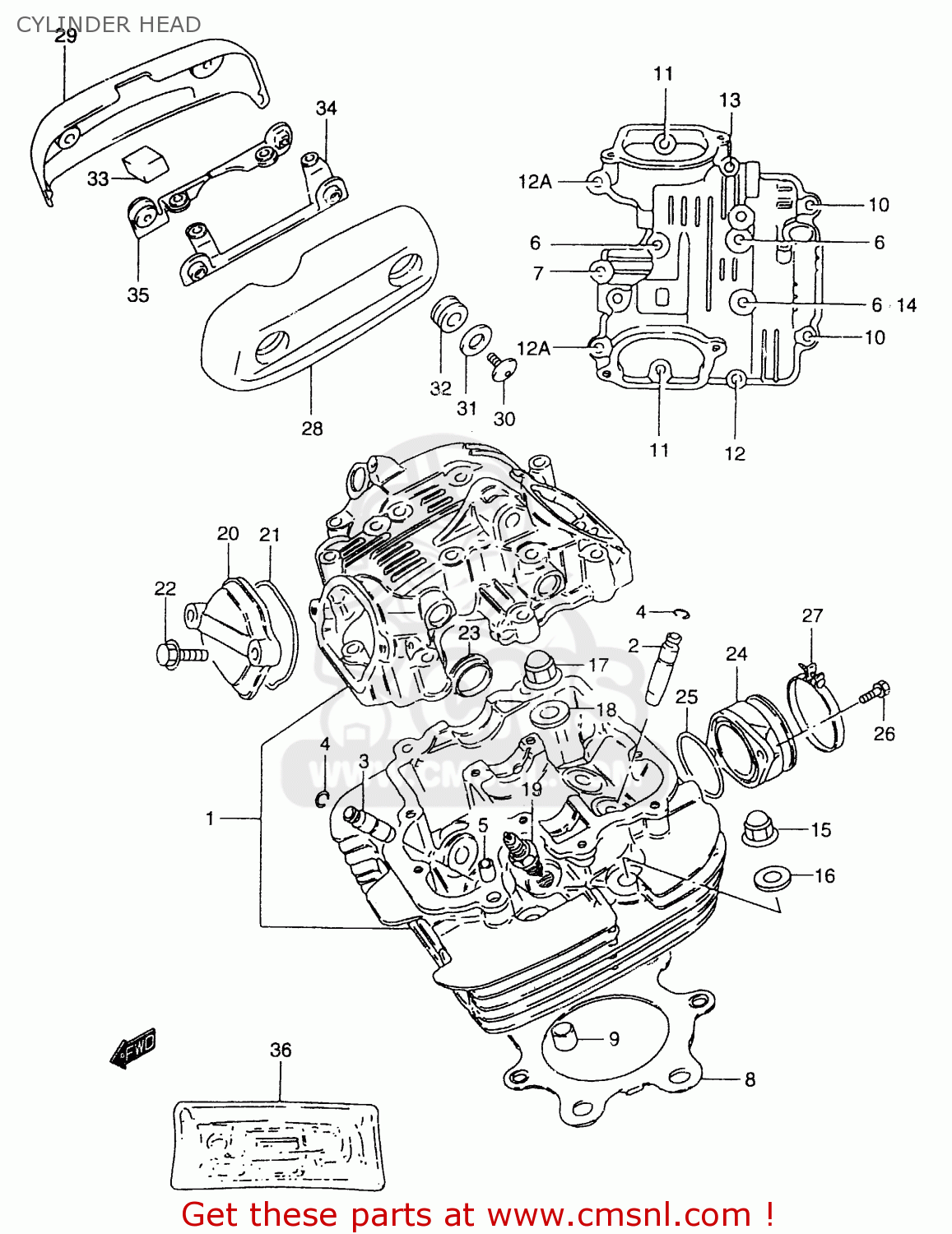

CYLINDER HEAD

ref

part #

description

quantity

1

1110025D00
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 1,157.50

2

1111538270
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111505270
ref: 3

GUIDE,VALVE

€ 18.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0155006607
ref: 6

BOLT

€ 2.50

7

0155006307
ref: 7

BOLT

€ 2.00

8

1114138201
ref: 8

GASKET,CYLINDER HEAD (NAS)

€ 37.50

9

0421113189
ref: 9

PIN

€ 2.50

10

0910306148
ref: 10

BOLT(6X120)

€ 5.00

11

0155006307
ref: 11

BOLT

€ 2.00

12

0155006457
ref: 12

BOLT

€ 2.50

12A

0155006507
ref: 12A

BOLT

€ 2.00

13

0155006607
ref: 13

BOLT

€ 2.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15

0915910026
ref: 15

NUT

€ 6.00

16

0916010060
ref: 16

WASHER (10.5X22X2.3)

€ 2.50

17

0915910069
ref: 17

NUT

€ 5.00

18

0916810017
ref: 18

GASKET(10.5X22X2) (NAS)

€ 3.50

19

0948200399
ref: 19

PLUG,SPARK(DR8EA)

€ 3.50

19

0948200223
ref: 19

PLUG,SPARK(X24ESR-U)

€ 3.50

20

1117538202
ref: 20

CAP,INSPECTION

€ 23.50

21

0928055003
ref: 21

O RING(D:2.4,ID:23)

€ 4.50

22

0155006257
ref: 22

BOLT

€ 2.50

23

0924130004
ref: 23

PLUG(OD:30)

€ 6.50

24

1311013F00
ref: 24

PIPE,INTAKE

€ 38.00

25

0928040010
ref: 25

O RING(D:2.4,ID:39.7)

€ 3.50

26

0212206163
ref: 26

SCREW ,6X16

€ 2.00

27

0940248208
ref: 27

CLAMP

€ 4.50

28

1117113F00
ref: 28

CAP,CYLINDER HEAD COVER,L

€ 113.50

29

1117213F00
ref: 29

CAP,CYLINDER HEAD COVER,R

€ 113.50

30

1117812F10
ref: 30

BOLT

€ 5.50

31

0916006134
ref: 31

WASHER(6.5X24X1.6)

€ 1.50

32

0932013015
ref: 32

CUSHION

€ 3.00

33

1117813F00
ref: 33

DAMPER,HEAD CAP,R

€ 6.50

34

1117913F00
ref: 34

BRACKET COMP,HEAD CAP

€ 36.50

35

1117913F10
ref: 35

BRACKET COMP,HEAD CAP

€ 19.50

36

1140113821
ref: 36

GASKET SET (NAS)

€ 97.00

all assemblies
