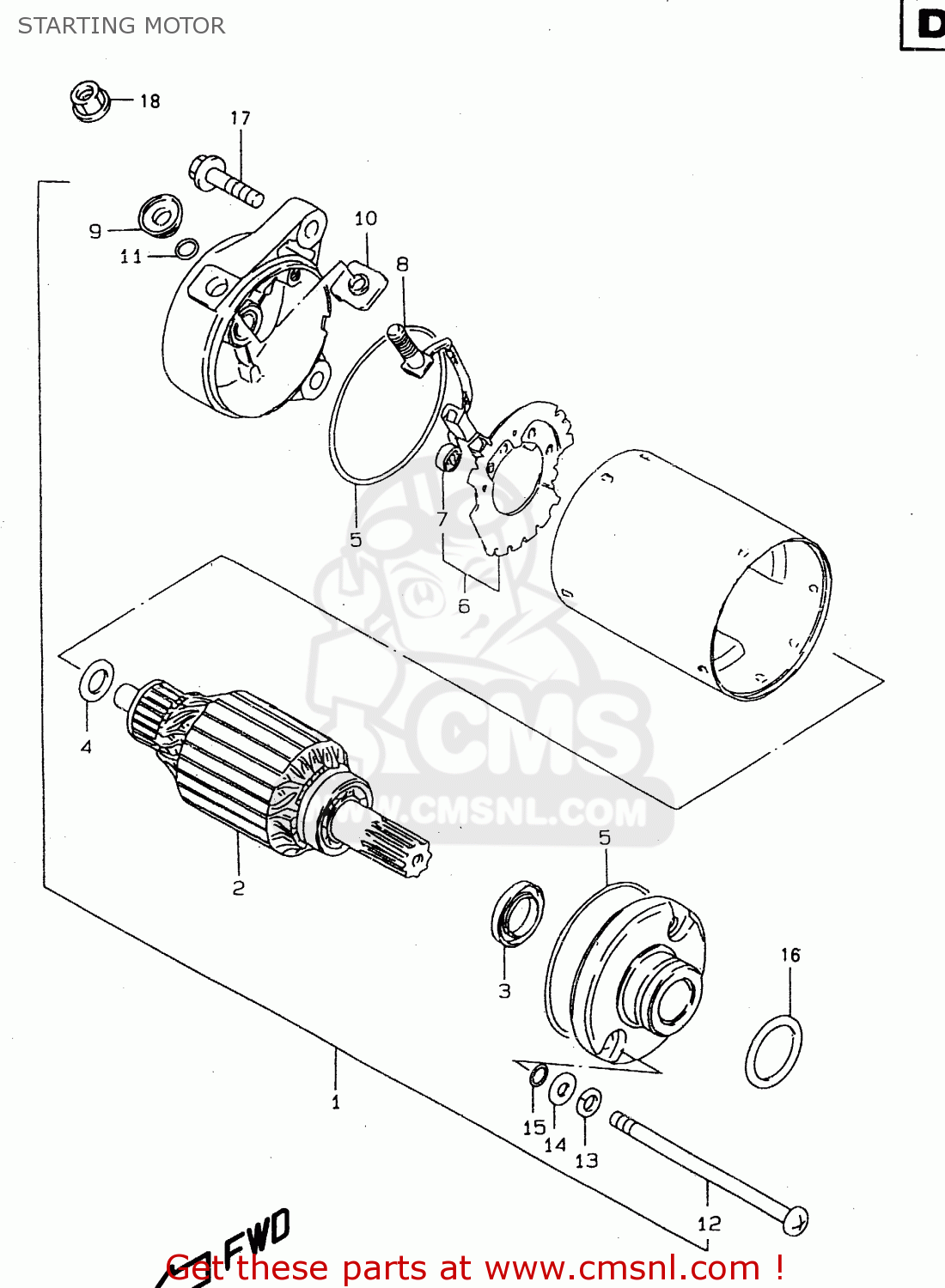

STARTING MOTOR

ref

part #

description

quantity

1

3110038300H17
ref: 1

MOTOR ASSY,STARTING

€ 707.00

2

3131149211H17
ref: 2

ARMATURE

€ 255.00

3

3115349210
ref: 3

SEAL,OIL

€ 15.00

4

3117043400
ref: 4

SHIM SET,STARTING MOTOR

€ 3.50

5

3126444110
ref: 5

O RING

€ 8.00

6

3113227A01
ref: 6

HOLDER,BRUSH

€ 47.00

7

3113565010
ref: 7

SPRING

€ 3.00

8

3113038300
ref: 8

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

9

3117238300
ref: 9

BUSHING

€ 4.00

10

3117138300
ref: 10

BUSH,B

€ 5.50

11

3114338300
ref: 11

O RING

€ 3.50

12

3128187402
ref: 12

BOLT

€ 11.50

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

3116138300
ref: 14

WASHER

€ 2.50

15

3115638300
ref: 15

O RING

€ 3.00

16

0928024003
ref: 16

O RING(D:3,ID:24.5)

€ 2.00

17

0155006257
ref: 17

BOLT

€ 2.50

18

0836135068
ref: 18

NUT

€ 2.00

all assemblies
