FRAME

GZ250 2000 (Y) (E01)

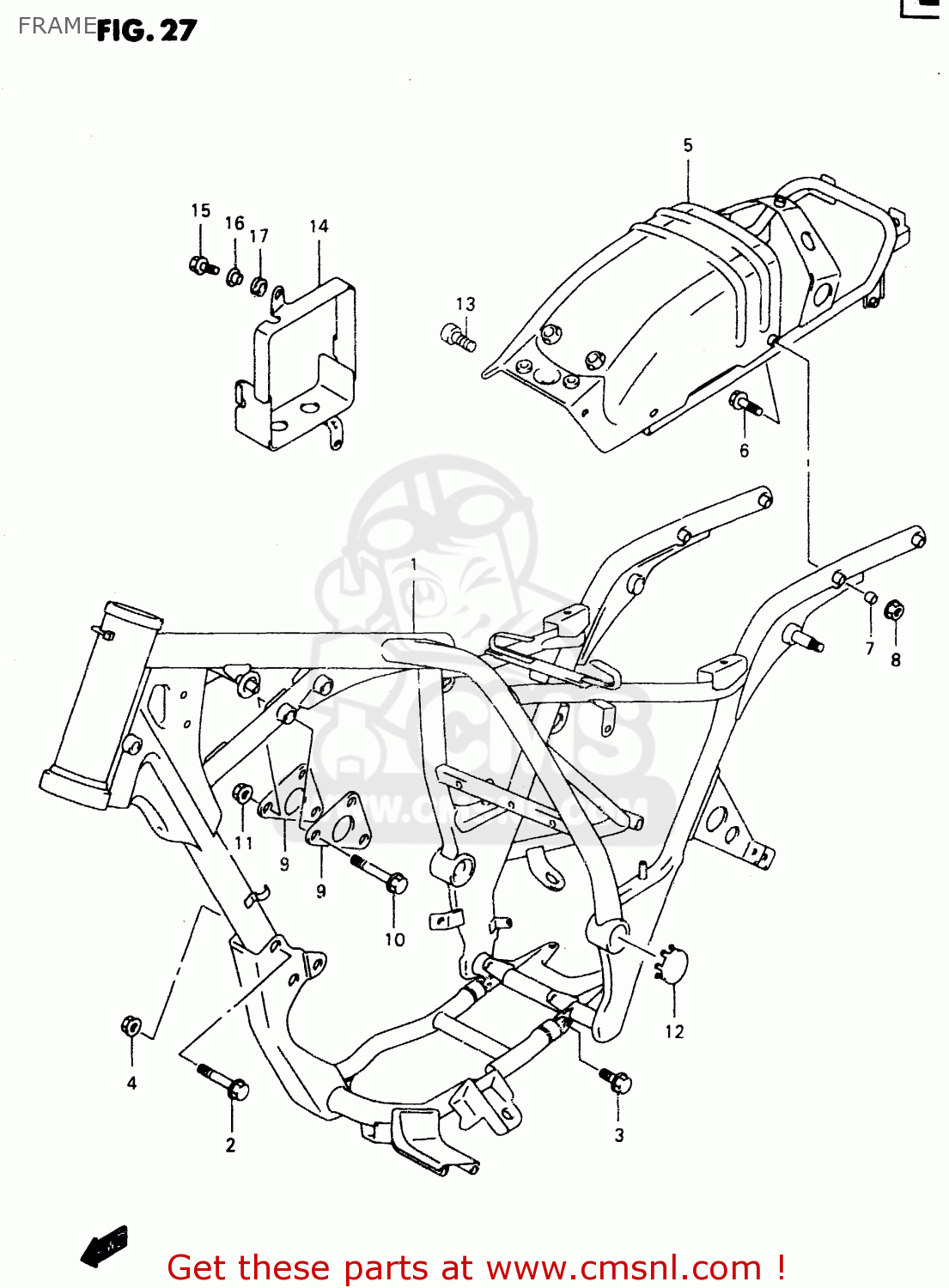

Frame diagram GZ250 2000 (Y) (E01)

FRAME GZ250 2000 (Y) (E01)

FRAME GZ250 2000 (Y) (E01)

prices are in EUR

ref

part #

description

quantity

1

4110013F01019
ref: 1

FRAME(BLACK)

€ 815.50

2

0155008603
ref: 2

BOLT

€ 3.50

3

0155008253
ref: 3

BOLT

€ 2.50

4

0831610083
ref: 4

NUT

€ 3.00

5

4158012F00
ref: 5

BRACE,RR FRAME

€ 115.50

6

0155008553
ref: 6

BOLT

€ 3.00

7

0918008208
ref: 7

SPACER(8.5X16X10)

€ 7.50

8

0831320087
ref: 8

NUT

€ 2.50

9

4199113F00
ref: 9

PLATE,ENG MTG UPR

€ 6.50

10

0910308289
ref: 10

BOLT(8X50)

€ 5.00

11

0831931087
ref: 11

NUT

€ 2.50

12

6122238A01
ref: 12

CAP,RR SWINGING ARM PIVOT,R

€ 6.50

13

0910606061
ref: 13

BOLT(6X12)

€ 6.00

14

4154012F00
ref: 14

HOLDER,BATTERY

€ 24.50

15

0155006163
ref: 15

BOLT

€ 2.50

16

0916906065
ref: 16

WASHER

€ 3.50

17

0932008021
ref: 17

CUSHION

€ 4.00

all assemblies
