BATTERY

GZ250 MARAUDER 2000 (Y) USA (E03)

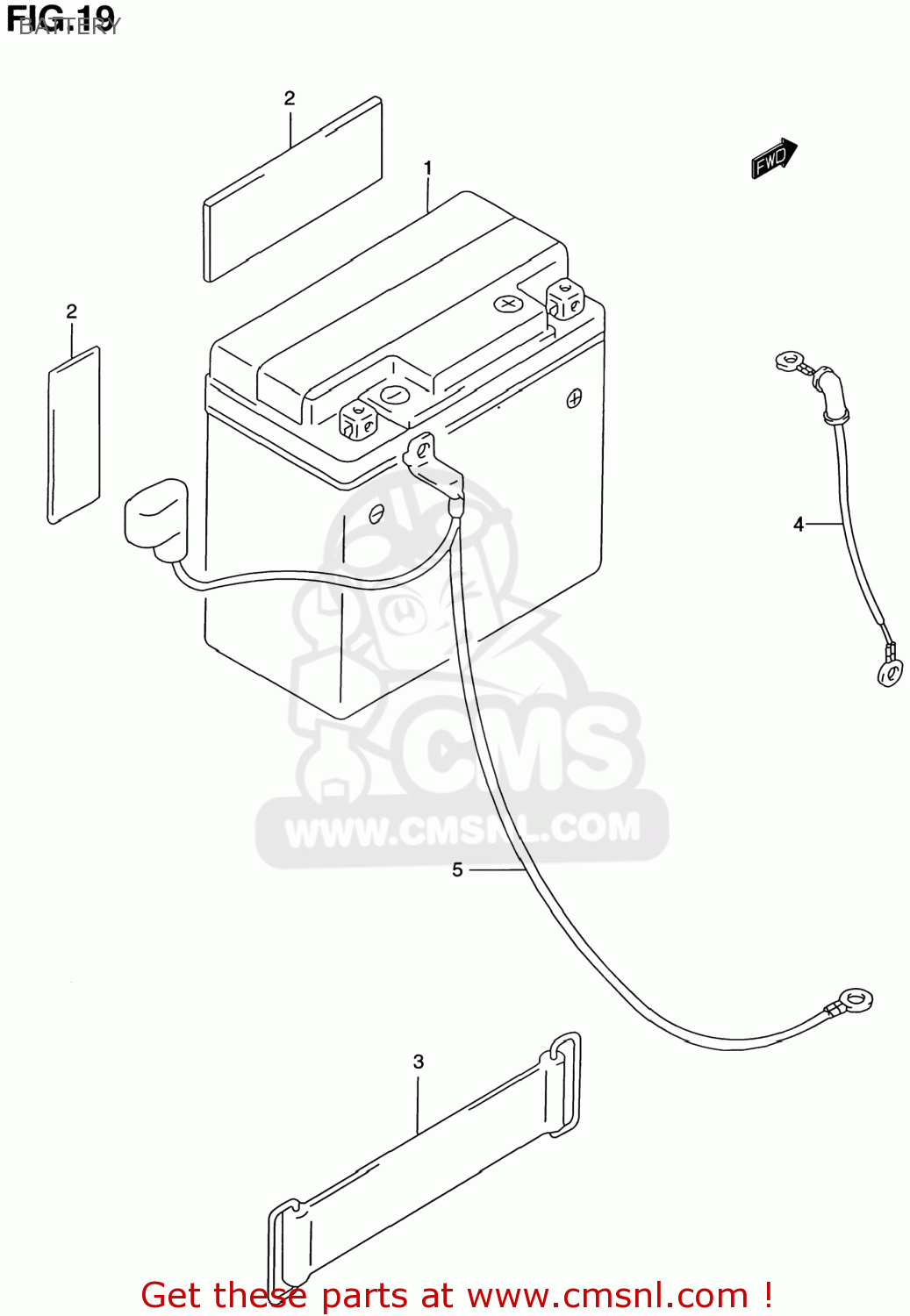

Battery diagram GZ250 MARAUDER 2000 (Y) USA (E03)

BATTERY GZ250 MARAUDER 2000 (Y) USA (E03)

BATTERY GZ250 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361012F10
ref: 1
33610-15D20

BATTERY ASSEMBLY (12V) FTX

€ 65.50

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

2

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3

0946200043
ref: 3

BAND

€ 4.50

4

3382012F00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 35.00

5

3386012F00
ref: 5

WIRE,BATTERY MINUS

€ 21.00
