SEAT (MODEL K1)
GZ250 MARAUDER 2000 (Y) USA (E03)

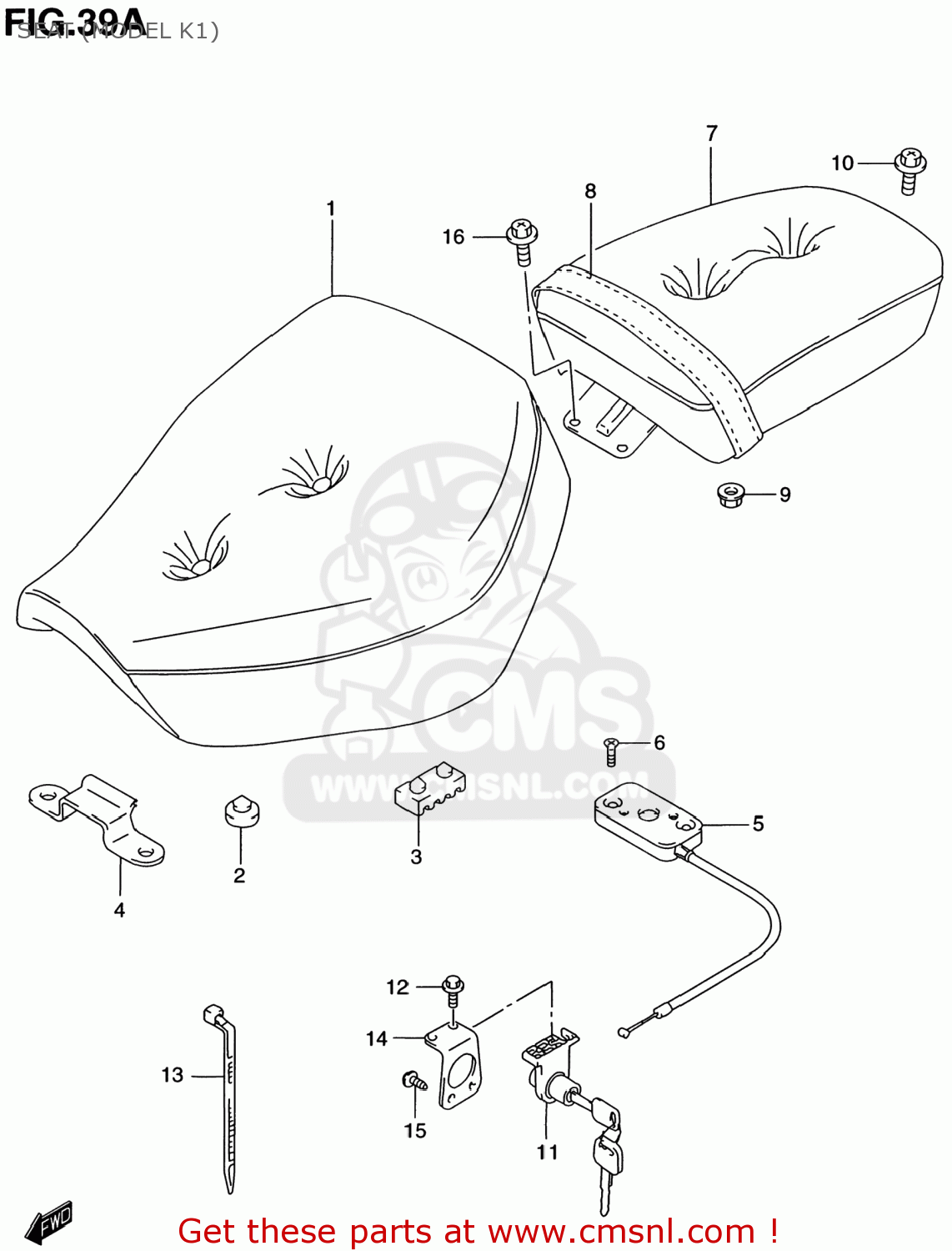

Seat (model k1) diagram GZ250 MARAUDER 2000 (Y) USA (E03)
SEAT (MODEL K1) GZ250 MARAUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510012F10K9C
ref: 1
45100-0AE00-K9C
SEAT ASSY
€ 143.50
2
4514836C00
ref: 2
CUSHION,SEAT
€ 4.00
3
4514931300
ref: 3
CUSHION,SEAT(40X20X15)
€ 2.00
4
4511912F00
ref: 4
PLATE,FR SEAT HOOK
€ 5.50
5
4522012F00
ref: 5
BRACKET,SEAT SUPPORT
€ 34.00
6
0212206253
ref: 6
02122-0625A
SCREW
€ 2.00
7
4530012F10K9C
ref: 7
45300-0AE00-K9C
SEAT ASSY,PILLION
€ 163.00
8
4518012F00T65
ref: 8
BAND,SEAT(BLACK)
€ 32.50
9
0831610063
ref: 9
08316-1006B
NUT
€ 2.50
10
0910608140
ref: 10
BOLT(8X16)
€ 6.00
11
9570031840
ref: 11
95700-31841
LOCK SET,SEAT
€ 57.00
12
0154705103
ref: 12
01547-0510B
BOLT
€ 2.50
13
0940722403
ref: 13
CLAMP(L:220)
€ 2.00
14
4528903F00
ref: 14
BRACKET,SEAT LOCK
€ 6.00
15
0314114123
ref: 15
03141-1412B
SCREW
€ 2.00
16
0910606061
ref: 16
BOLT(6X12)
€ 6.00
