REAR FENDER (MODEL Y
GZ250 MARAUDER 2000 (Y) USA (E03)

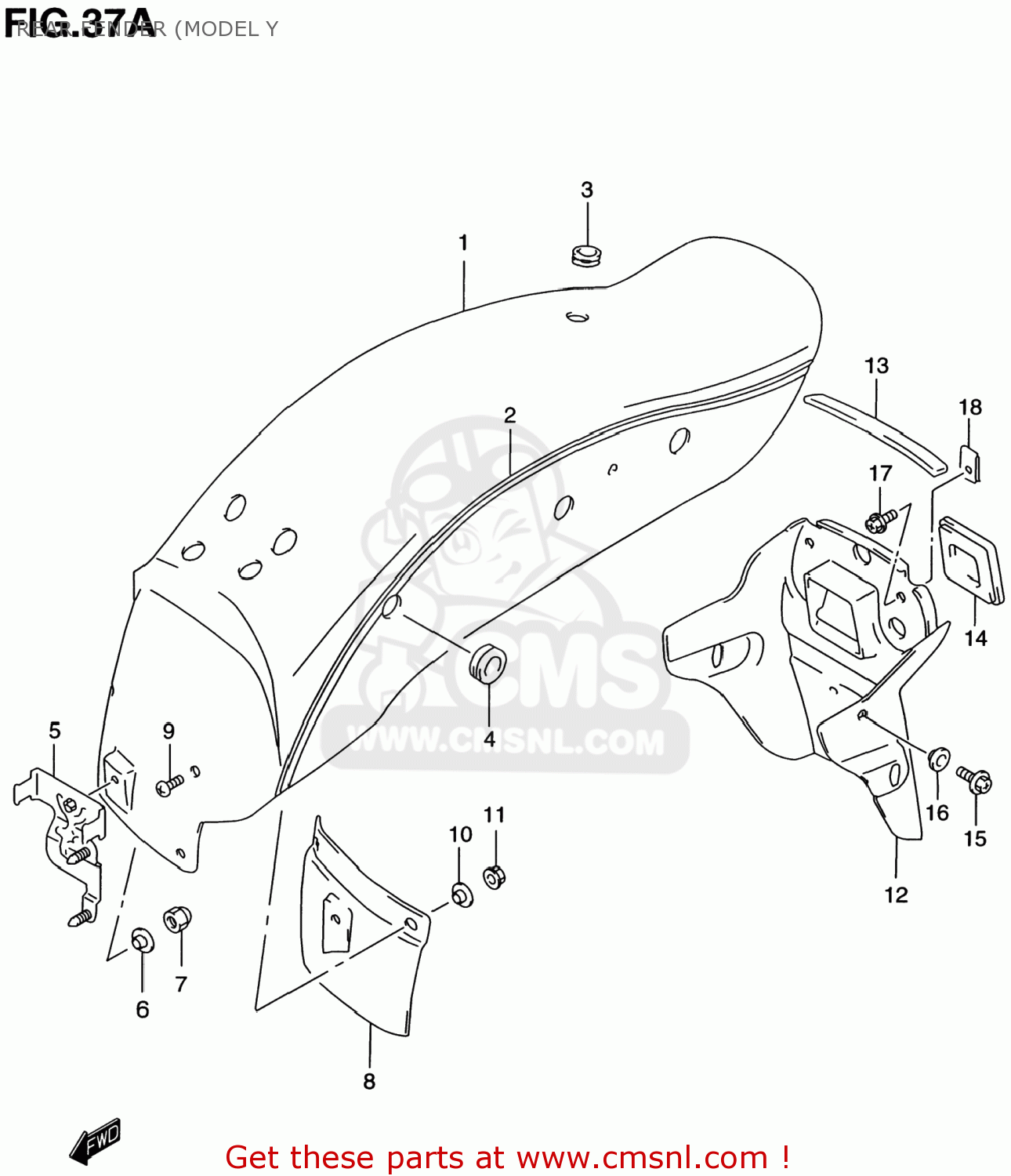

Rear fender (model y diagram GZ250 MARAUDER 2000 (Y) USA (E03)
REAR FENDER (MODEL Y GZ250 MARAUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311012F20Y98
ref: 1
FENDER COMP,REAR
€ 193.50
2
6817012F20N6D
ref: 2
TAPE SET,REAR FENDER
€ 64.50
3
0932013015
ref: 3
CUSHION
€ 3.00
4
6311812F00
ref: 4
CUSHION,RR FENDER
€ 14.50
5
6314013F00
ref: 5
BRACKET,RR FENDER
€ 11.00
6
0916906071
ref: 6
WASHER
€ 2.50
7
0831310063
ref: 7
08313-1006A
NUT
€ 2.00
8
6333112F00
ref: 8
63331C12F00J000
MUDGUARD,RR FENDER
€ 5.50
9
0214206163
ref: 9
02142-0616A
SCREW
€ 2.50
10
0916906071
ref: 10
WASHER
€ 2.50
11
0831610063
ref: 11
08316-1006B
NUT
€ 2.50
12
6331112F00
ref: 12
63311C12F00J000
EXTENSION,RR FENDER
€ 13.50
13
6331248E00
ref: 13
CUSHION,RR FENDER EXTENSION
€ 5.50
14
6319148E00
ref: 14
CAP,RR FENDER EXTENSION
€ 8.00
15
0216206123
ref: 15
02162-0612A
BOLT
€ 1.50
16
0916906071
ref: 16
WASHER
€ 2.50
17
0216206163
ref: 17
02162-0616B
SCREW
€ 2.50
18
4715319C01
ref: 18
PLATE,FRAME COVER
€ 4.00
