HEADLAMP HOUSING (MODEL X)

GZ250 MARAUDER 2000 (Y) USA (E03)

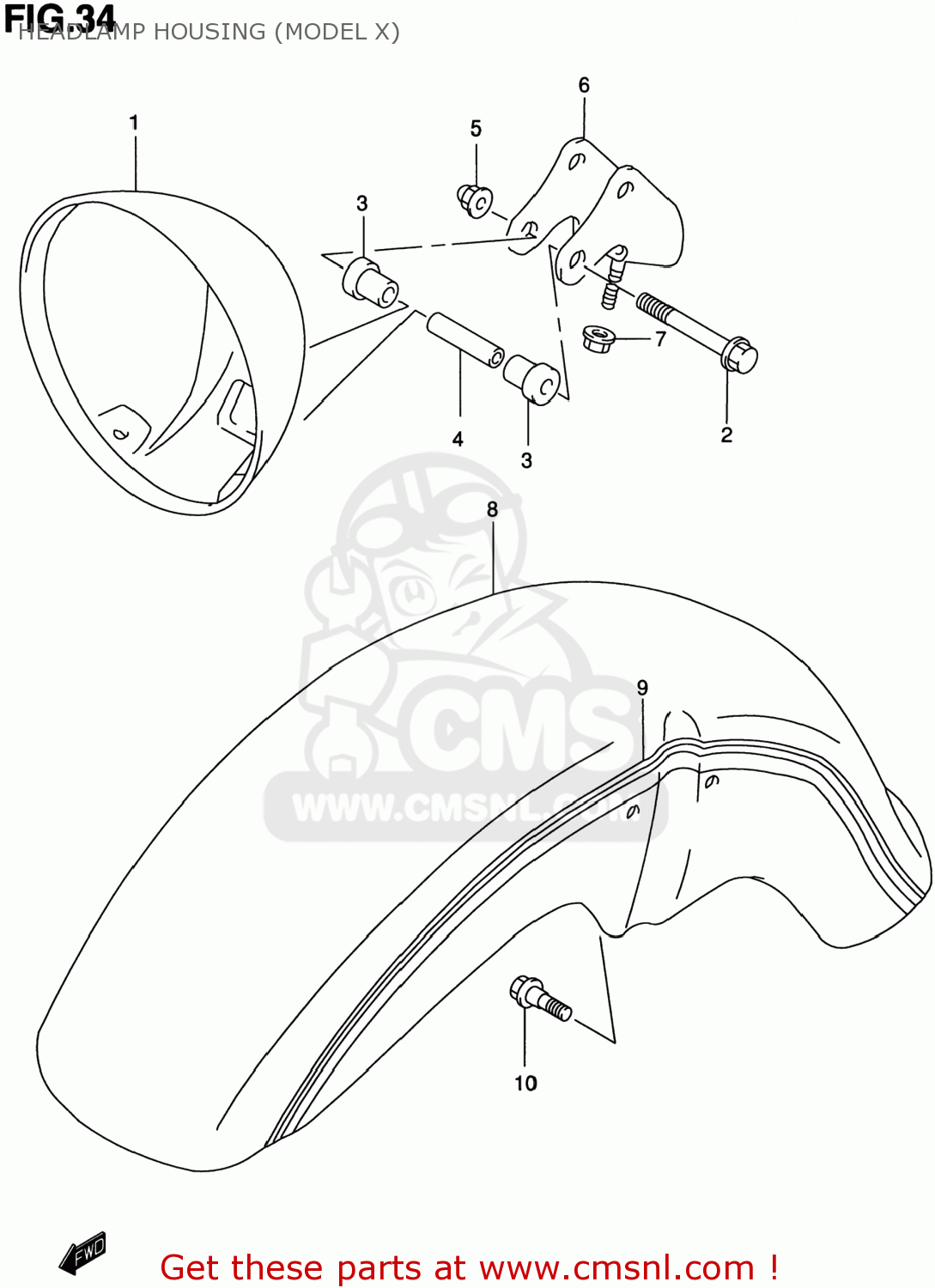

Headlamp housing (model x) diagram GZ250 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181112F00
ref: 1

HOUSING,HEADLAMP

€ 138.00

0154706507
ref: 2

BOLT

€ 2.50

5182712F00
ref: 3

CUSHION,HEADLAMP HOUSING

€ 31.50

0918006279
ref: 4

SPACER(6.5X9X38.3)

€ 4.50

0831320067
ref: 5

NUT

€ 2.00

5185012F00
ref: 6
51850-12F01

BRACKET COMP,HEADLAMP

€ 66.00

0831931103
ref: 7
08319-3110A

NUT

€ 3.00

8-1

5310012850Y98
ref: 8-1
53111-12F01-Y98

FENDER SET,FRONT (GREEN)

€ 230.00

8-2

5310012850Y0W
ref: 8-2
53111-12F01-33J

FENDER SET,FRONT (ORANGE)

€ 158.50

9-1

6815012F00L3V
ref: 9-1

TAPE SET,FR FENDER

€ 31.00

9-2

6815012F00L3W
ref: 9-2

TAPE SET,FR FENDER

€ 31.00

0911106066
ref: 10

BOLT(6X16)

€ 2.50
