MAGNETO

GZ250 MARAUDER 2000 (Y) USA (E03)

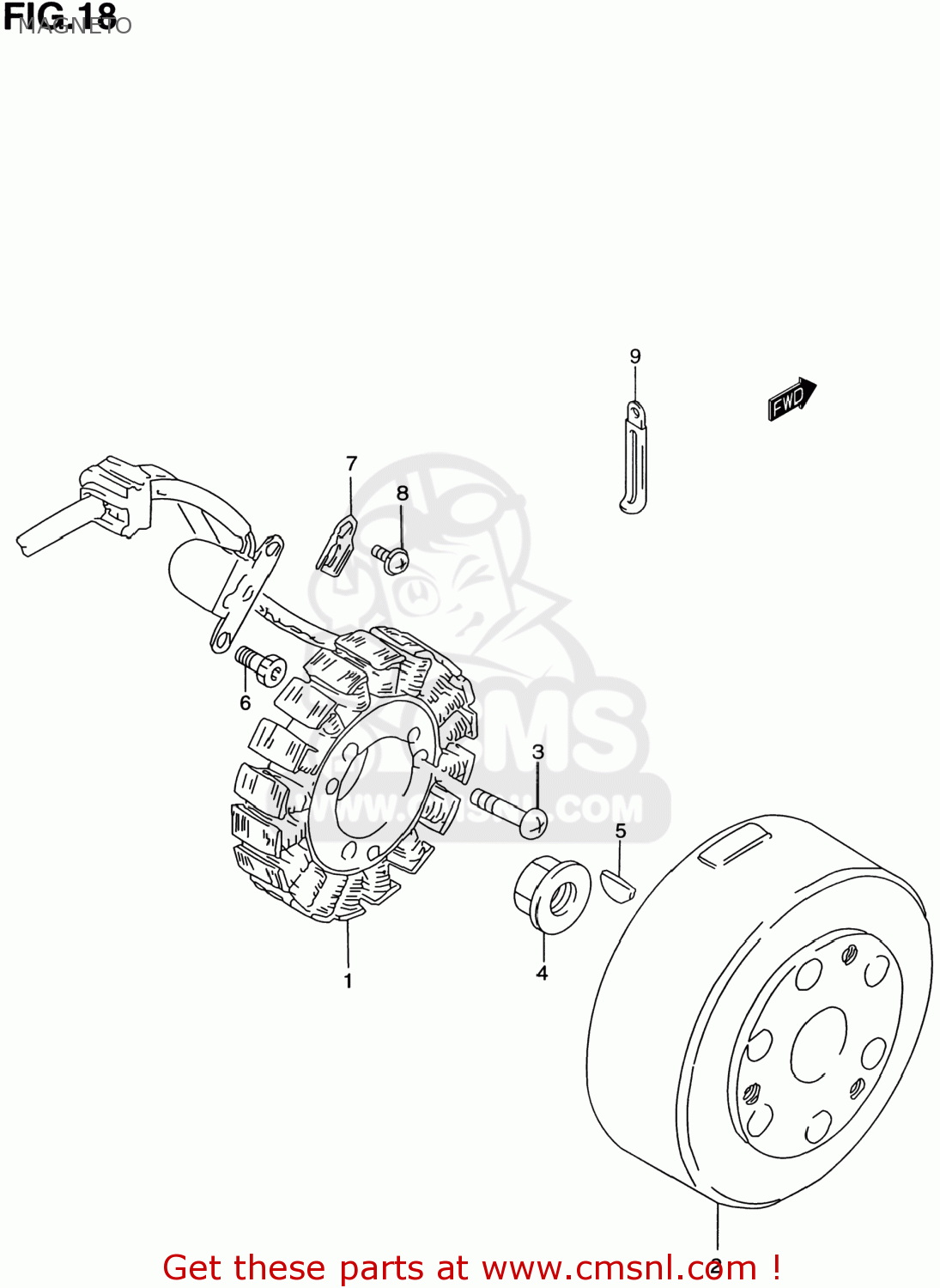

Magneto diagram GZ250 MARAUDER 2000 (Y) USA (E03)

MAGNETO GZ250 MARAUDER 2000 (Y) USA (E03)

MAGNETO GZ250 MARAUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210113F00
ref: 1

STARTER ASSY

€ 676.00

2

3210213F01
ref: 2

ROTOR ASSY

€ 469.50

3

0211206253
ref: 3
02112-0625A

SCREW

€ 1.50

4

3179249200
ref: 4

NUT,GENERATOR ROTOR

€ 10.00

5

0834131039
ref: 5

KEY

€ 2.00

6

0713005123
ref: 6
07130-0512B

BOLT

€ 2.50

7

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

8

0214235083
ref: 8
02142-3508B

SCREW

€ 2.50
