GEAR SHIFTING
GZ250 MARAUDER 2000 (Y) USA (E03)

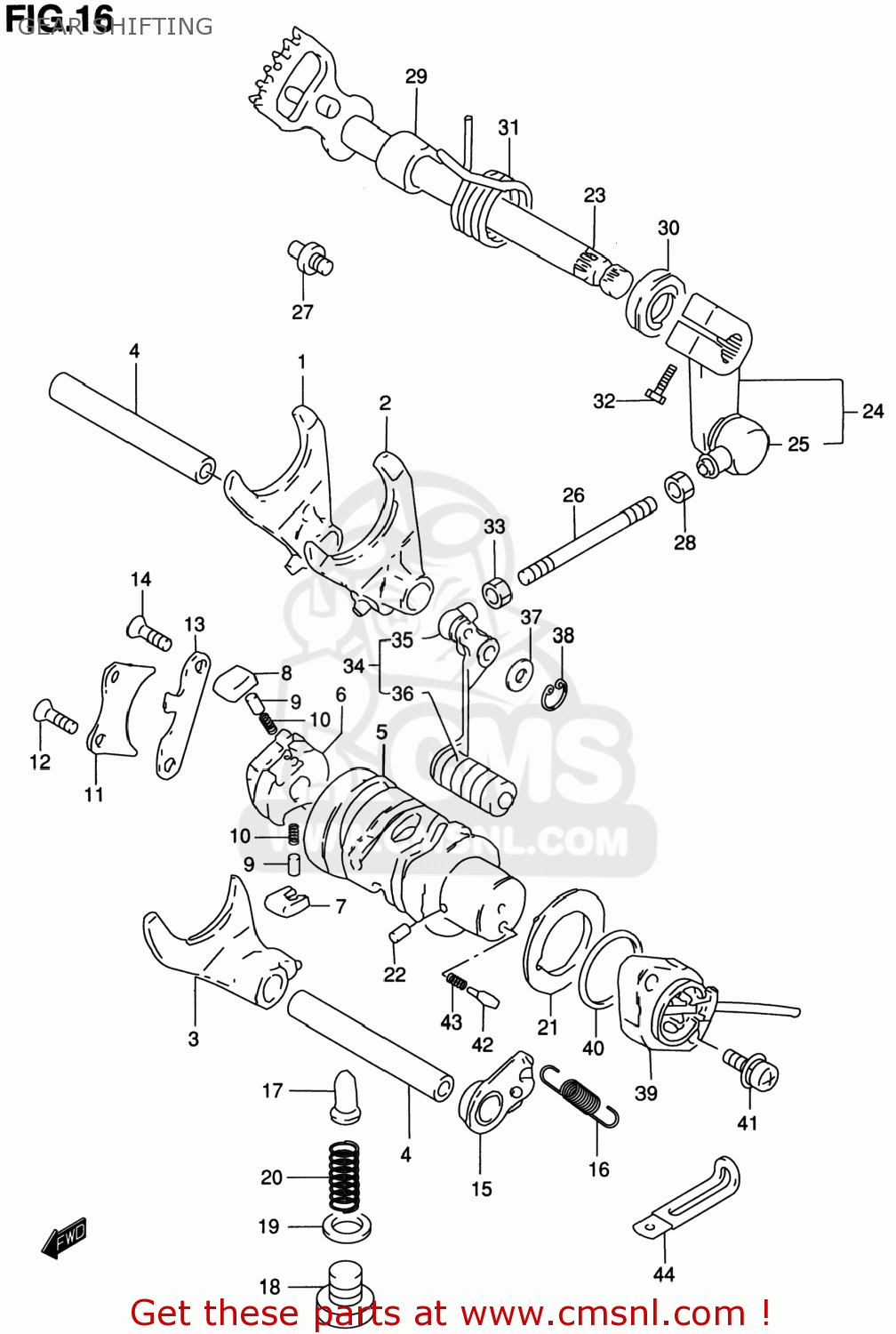

Gear shifting diagram GZ250 MARAUDER 2000 (Y) USA (E03)
GEAR SHIFTING GZ250 MARAUDER 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521132402
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522132403
ref: 2
FORK,GEAR SHIFT NO.2
€ 71.50
3
2523113F00
ref: 3
FORK,GEAR SHIFT NO.3
€ 77.00
4
2541114331
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2531013F00
ref: 5
25310-13F10
CAM,GEAR SHIFT
€ 132.50
6
2532231310
ref: 6
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138201
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12
0212206123
ref: 12
02122-0612A
SCREW
€ 3.00
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206123
ref: 14
02122-0612A
SCREW
€ 3.00
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
€ 10.50
16
0944308026
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
0924714012
ref: 18
09247-14026
PLUG (14X12)
€ 3.50
19
0916814002
ref: 19
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
20
0944011026
ref: 20
SPRING
€ 7.50
21
2538113F00
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 15.50
22
0422104069
ref: 22
PIN
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
€ 83.50
24
2552022A00
ref: 24
ARM,GEAR SHIFT LINK
€ 46.50
25
2552647000
ref: 25
COVER,DUST
€ 3.50
26
2552513F00
ref: 26
ROD,GEAR SHIFT LINK
€ 19.00
27
2567101000
ref: 27
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
28
0914006011
ref: 28
NUT
€ 1.50
29
0918012068
ref: 29
SPACER(12X20X15.3)
€ 3.00
30
0928512002
ref: 30
09285-12006
OIL SEAL
€ 7.00
31
0944426004
ref: 31
SPRING
€ 4.00
32
0150006207
ref: 32
BOLT
€ 2.00
33
0831000067
ref: 33
NUT
€ 2.50
34
2560013F00
ref: 34
LEVER ASSY,GEAR SHIFT
€ 53.00
35
2552647000
ref: 35
COVER,DUST
€ 3.50
36
2565220C00
ref: 36
RUBBER,GEAR SHIFT PEDAL
€ 8.00
37
0916012011
ref: 37
WASHER(12.5X20X1)
€ 1.50
38
0833131126
ref: 38
08331-3112A
CIRCLIP,12 MM
€ 2.00
39
3772047D00
ref: 39
BASE ASSY,NEUTRAL SW TERMINAL
€ 103.50
40
0928026003
ref: 40
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
41
0211275203
ref: 41
02112-7520A
SCREW
€ 3.00
42
0920905011
ref: 42
PIN(5X15.5)
€ 2.00
43
0944004010
ref: 43
SPRING
€ 1.50
44
0940406432
ref: 44
CLAMP(L:65)
€ 2.50
