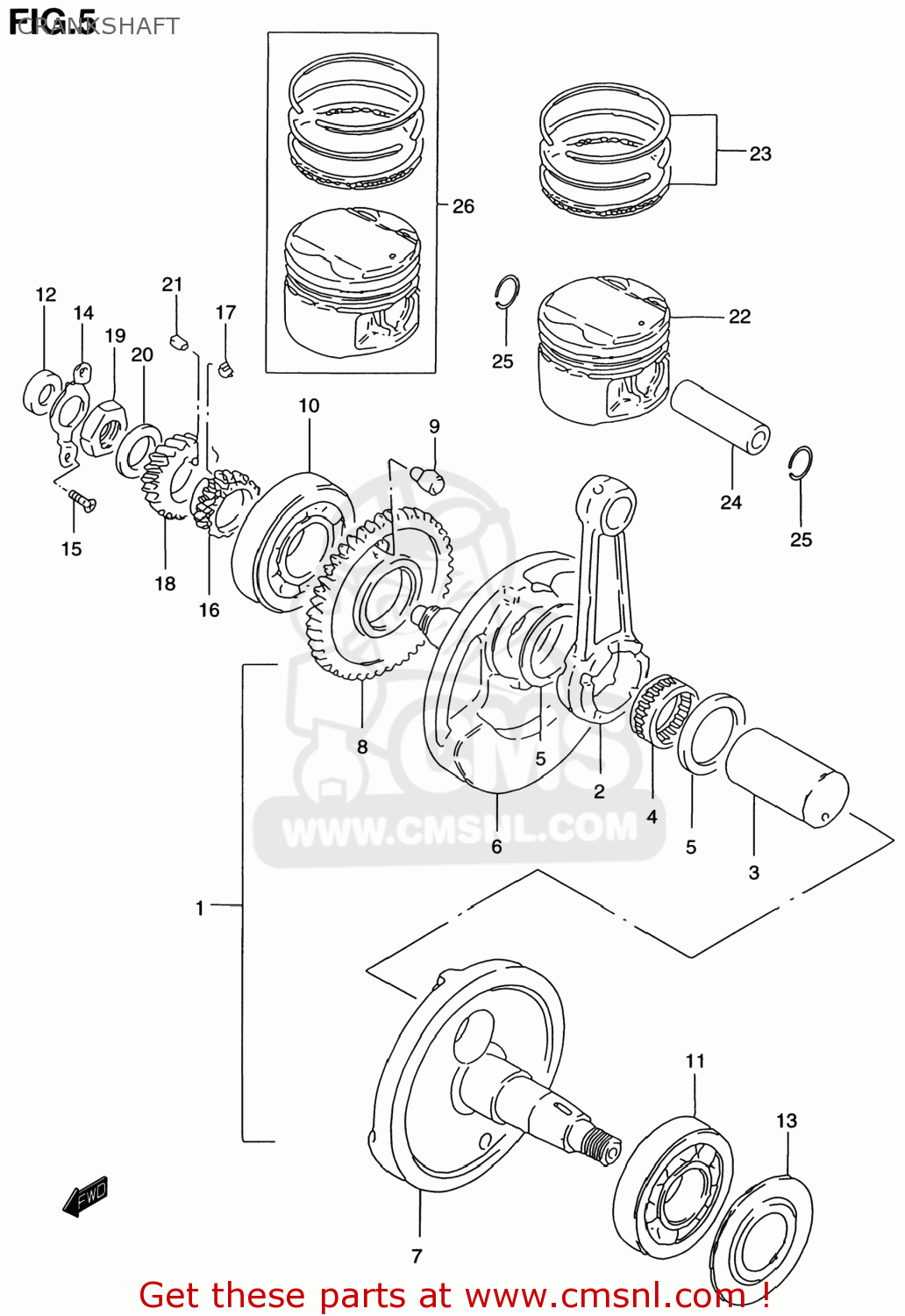

CRANKSHAFT

ref

part #

description

quantity

1

1220038310
ref: 1
12200-38320

CRANKSHAFT ASSEMBLY

€ 482.00

2

1216138201
ref: 2

ROD,CONNECTING

€ 129.50

3

1221138211
ref: 3

PIN,CRANK

€ 38.00

4

0926331004
ref: 4

BEARING(31X39X21)

€ 53.00

5

0916031002
ref: 5

WASHER(31X48.5X1)

€ 7.00

6

1222138200
ref: 6

CRANKSHAFT,R

€ 196.00

7

1226138300
ref: 7

CRANKSHAFT,LEFT

€ 199.50

8

1266138202
ref: 8

GEAR,CRANK BALANCER DRIVE

€ 128.00

9

0920912006
ref: 9

PIN

€ 6.50

10

0926230077
ref: 10

BEARING(30X72X19)

€ 47.50

11

0926235028
ref: 11

BEARING(35X80X21)

€ 50.50

12

0928214001
ref: 12

SEAL,OIL(14X26X6)

€ 38.00

13

1252138300
ref: 13

WASHER,CRANKSHAFT OIL SEALING

€ 6.00

14

1254838200
ref: 14

RETAINER,CRANKSHAFT BEARING,R

€ 4.50

15

0212205103
ref: 15
02122-0510A

SCREW

€ 1.00

16

1273138200
ref: 16

SPROCKET,CAM CHAIN DRIVE(NT:21

€ 36.00

16

1273138200
ref: 16

SPROCKET,CAM CHAIN DRIVE(NT:21

€ 36.00

17

1274932400
ref: 17

KEY,SPROCKET

€ 13.50

18

2111138200
ref: 18

GEAR,PRIMARY DRIVE NO.21

€ 62.00

19

0914020008
ref: 19
09140-20013

NUT (20MM)

€ 4.00

20

0916420003
ref: 20

WASHER

€ 2.50

21

0942107002
ref: 21

KEY

€ 4.00

22

12111382010F0
ref: 22

PISTON

€ 76.00

23

1214049270
ref: 23

RING SET,PISTON

€ 67.00

24

1215115501
ref: 24

PIN,PISTON

€ 15.00

25

0938118002
ref: 25

CIRCLIP

€ 1.50

26-1

1210038200050
ref: 26-1

PISTON SET(OS:0.5)

€ 125.00

26-2

1210038200100
ref: 26-2

PISTON SET (OS:1.0)

€ 101.50
