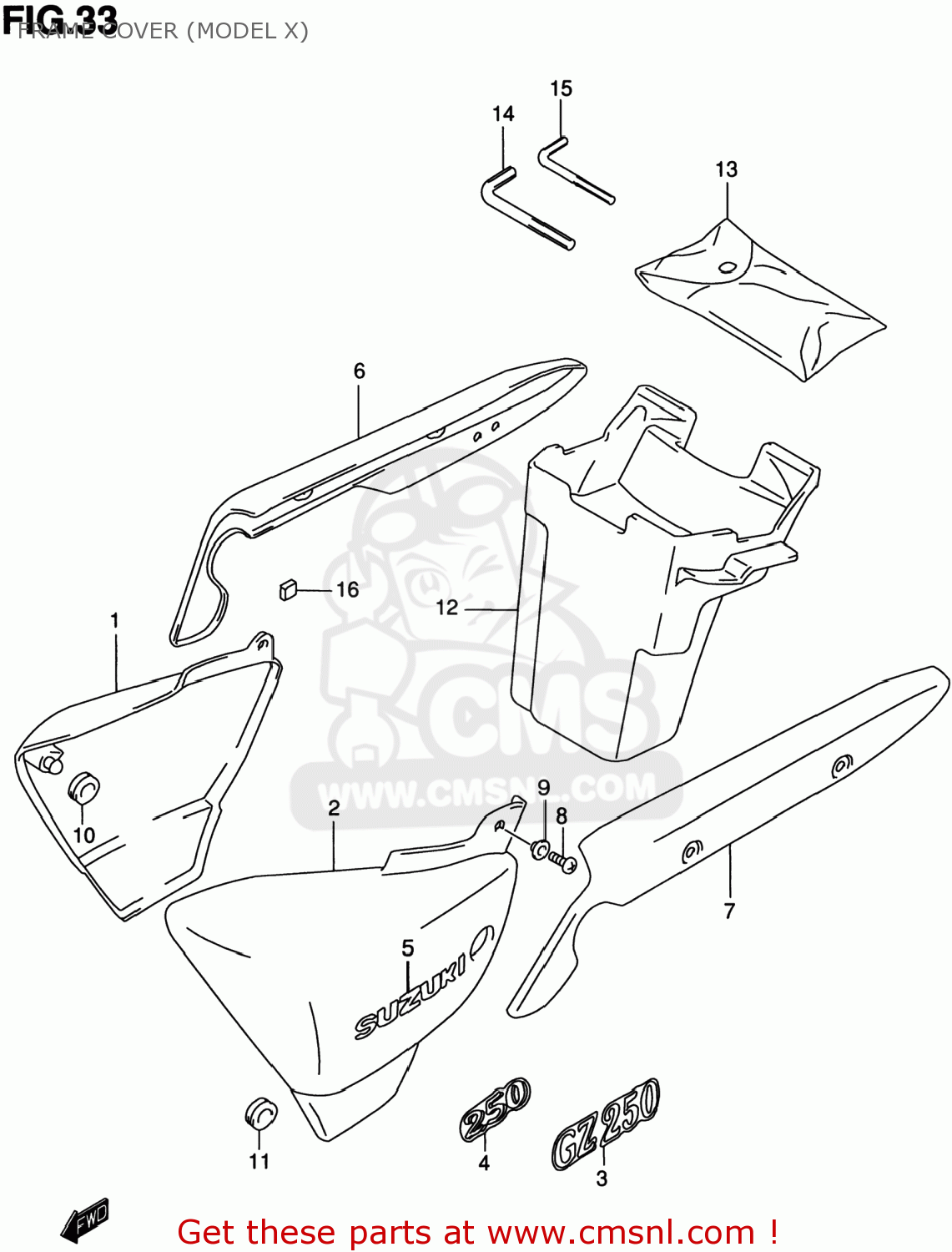

FRAME COVER (MODEL X)

ref

part #

description

quantity

1-1

4711112F00Y98
ref: 1-1

COVER,FRAME,R(GREEN)

€ 85.50

1-2

4711112F00Y0W
ref: 1-2

COVER,FRAME,R(ORANGE)

€ 59.00

2-1

4721112F00Y98
ref: 2-1

COVER,FRAME,L(GREEN)

€ 60.50

2-2

4721112F00Y0W
ref: 2-2

COVER,FRAME,L(ORANGE)

€ 34.00

3-1

6813112F20M7F
ref: 3-1

EMBLEM,FRAME COVER

€ 0.00

3-2

6813112F20M7E
ref: 3-2

EMBLEM,FRAME COVER

€ 9.50

4-1

6813112F10M3B
ref: 4-1

EMBLEM (250)

€ 13.00

4-2

6813112F10M3C
ref: 4-2

EMBLEM,250

€ 11.00

5

6813112F00
ref: 5

EMBLEM,FRAME COVER

€ 40.50

6

4712112F00
ref: 6

COVER,FRAME RR,R

€ 75.00

7

4722112F00
ref: 7
47221-12FA0

COVER,FRAME RR,L

€ 67.50

8

0214206123
ref: 8
02142-0612A

SCREW 6X12

€ 2.00

9

0916906071
ref: 9

WASHER

€ 2.50

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0932008013
ref: 11

CUSHION

€ 4.00

12

9221112F00
ref: 12
92211C12F01J000

BODY,LUGGAGE BOX

€ 25.50

13

0980021022
ref: 13

TOOL ASSY

€ 27.00

14

0981600050
ref: 14

SPANNER,HEXAGON(6)

€ 5.50

15

0981600103
ref: 15

SPANNER,HEXAGON(4)

€ 3.00

16

5312333E00
ref: 16
33652-01D10

CUSHION

€ 3.00
