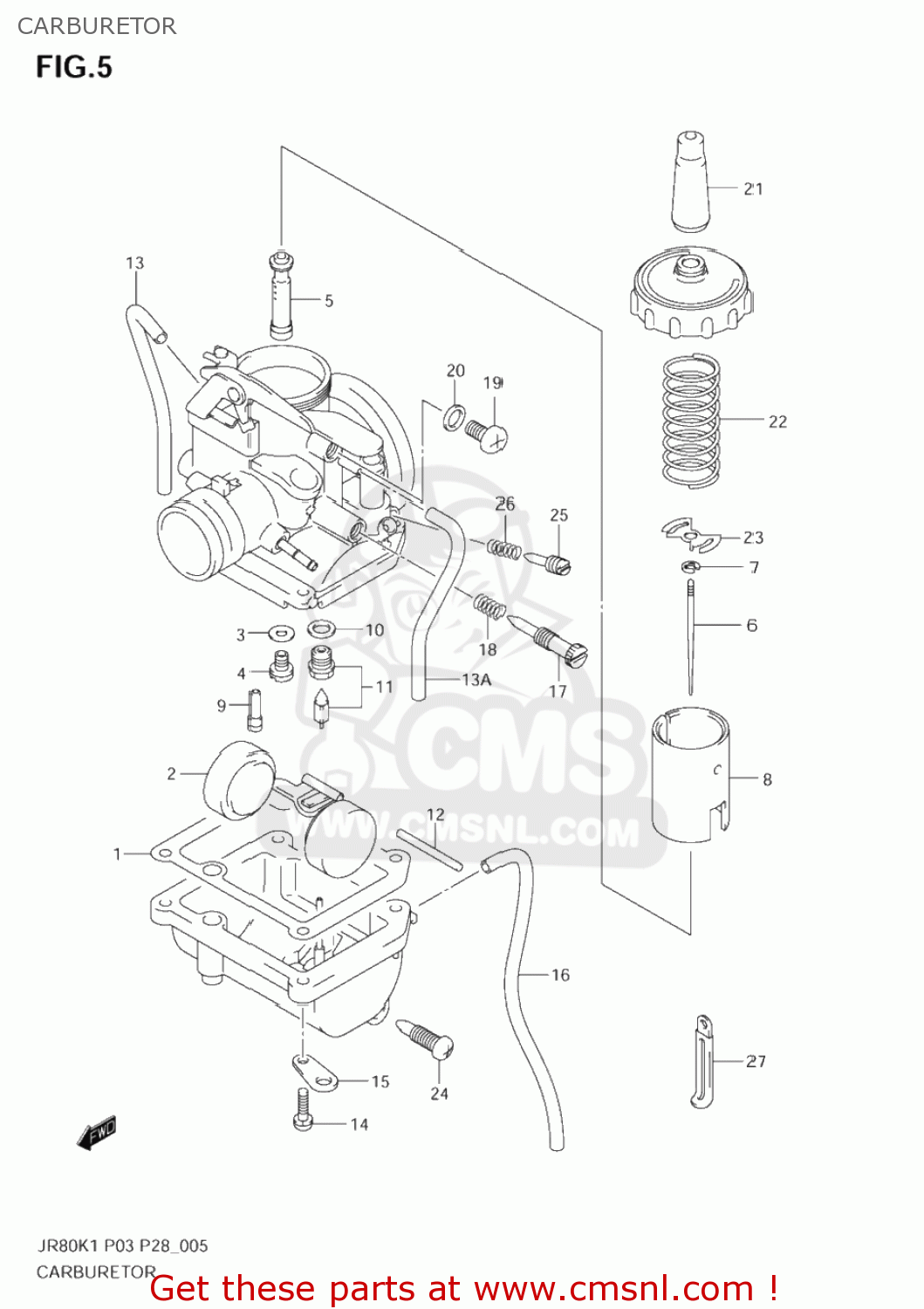

CARBURETOR

ref

part #

description

quantity

1

1320003410
ref: 1

CARBURETOR ASSY

€ 142.50

1A

1325103410
ref: 1A

GASKET,FLOAT CAHMBER (NAS)

€ 4.50

2

1325004700
ref: 2

FLOAT

€ 21.50

3

1338203110
ref: 3

WASHER

€ 2.50

4

0949187005
ref: 4

JET,MAIN(87.5)

€ 6.50

5

0949400398
ref: 5

JET,NEEDLE

€ 12.50

6

1338303400
ref: 6

NEEDLE,JET

€ 10.50

7

1339440D20
ref: 7

E RING

€ 4.50

8

1355103400
ref: 8

VALVE,THROTTLE

€ 0.00

9

0949225005
ref: 9

JET,PILOT(25)

€ 6.50

10

1339201010
ref: 10

GASKET,NEEDLE VALVE (NAS)

€ 2.50

11

1337023010
ref: 11

VALVE ASSY,NEEDLE

€ 34.00

12

1325401010
ref: 12

PIN,FLOAT

€ 3.00

13

0935230503600
ref: 13

HOSE(3X5X600)

€ 8.00

13A

0935130503600
ref: 13A

HOSE(3X5X600)

€ 6.50

14

1360104148
ref: 14

SCREW

€ 2.50

15

1369330010
ref: 15

PLATE

€ 4.00

16

1368403410
ref: 16

HOSE(3X5X125)

€ 0.00

17

1326795110
ref: 17

SCREW,THROTTLE STOP

€ 6.00

18

1326848700
ref: 18

SPRING,THROTTLE SCREW

€ 3.50

19

0211205063
ref: 19
02112-0506B

SCREW

€ 2.00

20

1352346110
ref: 20

GASKET,DRAIN PLUG (NAS)

€ 3.00

21

1368133010
ref: 21

CAP,CABLE ADJUSTER

€ 8.00

22

1357336110
ref: 22

SPRING,THROTTLE VALVE

€ 3.00

23

1358109210
ref: 23

STOPPER,NEEDLE CLIP

€ 5.50

24

1324702340
ref: 24

PLUG,DRAIN

€ 5.50

25

1326995110
ref: 25

SCREW,PILOT AIR

€ 8.50

26

1326801010
ref: 26

SPRING

€ 3.50

27

0940406433
ref: 27

CLAMP(L:80)

€ 3.00
