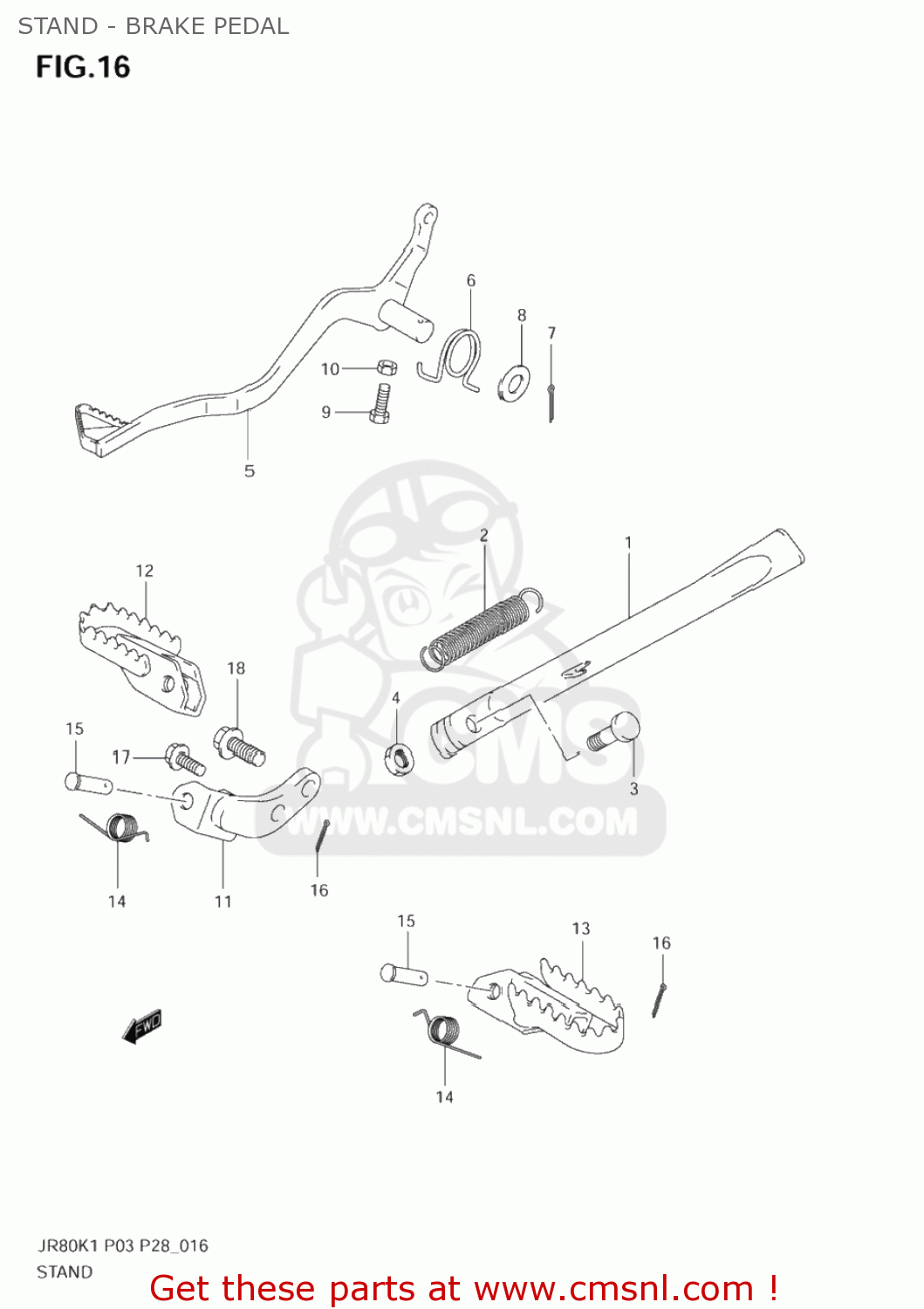

STAND - BRAKE PEDAL - JR80 2003 (K3) USA (E03)

ref

part #

description

quantity

1

4231003400019
ref: 1

STAND,SIDE

€ 27.50

2

0944314017
ref: 2

SPRING

€ 6.50

3

0910010287
ref: 3

BOLT(10X27)

€ 4.50

4

0914010043
ref: 4

NUT

€ 2.00

5

4311003401
ref: 5

PEDAL,BRAKE

€ 29.50

6

0944825007
ref: 6
09448-25007-XC0

SPRING

€ 6.00

7

0411130308
ref: 7
04111-3030A

COTTER PIN

€ 1.50

8

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

9-1

0910006009
ref: 9-1

BOLT(6X23)

€ 1.50

9-2

0912806028
ref: 9-2

SCREW(6X23)

€ 2.00

10

0831000063
ref: 10
08310-0006A

NUT 6MM

€ 2.00

11-1

4351003401019
ref: 11-1

BAR,FRONT FOOTREST

€ 7.00

11-2

4351003402019
ref: 11-2

HOLDER,FR FOOTREST

€ 7.00

12

4355046000019
ref: 12

FOOTREST,FR,R

€ 9.00

13

4356046000019
ref: 13

FOOTREST,FR,L

€ 9.00

14

0944814012
ref: 14

SPRING

€ 3.00

15

0920008002
ref: 15

PIN

€ 2.00

16

0411120158
ref: 16
04111-2015A

PIN

€ 1.50

17

0155010253
ref: 17
01550-1025A

BOLT

€ 3.00

18

0910308505
ref: 18

BOLT(8X20)

€ 4.00

STAND - BRAKE PEDAL
