WIRING HARNESS (MODEL K2/K3/K4)

JR80 2003 (K3) USA (E03)

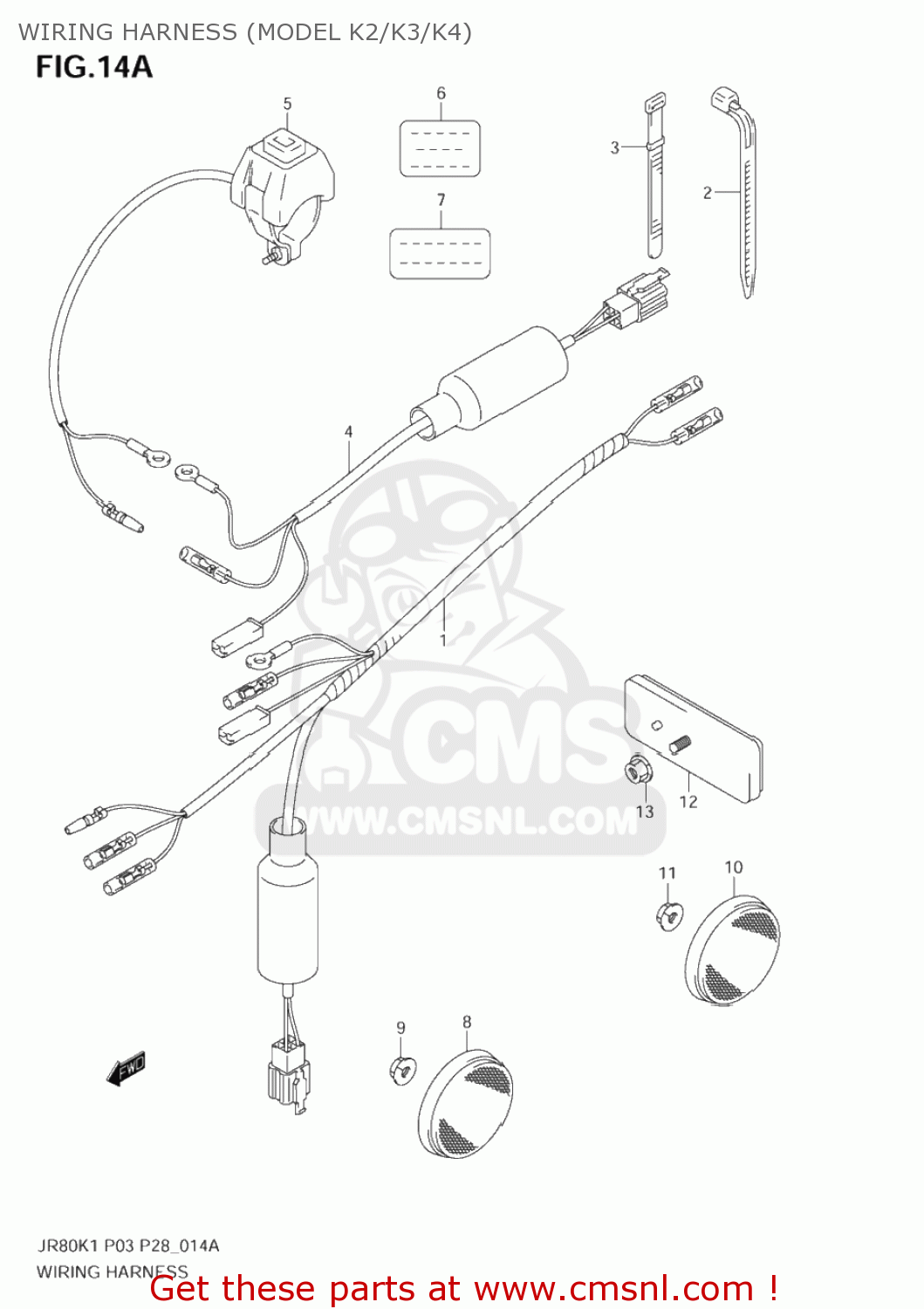

Wiring harness (model k2/k3/k4) diagram JR80 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

3661003430
ref: 1

HARNESS,WIRING

€ 0.00

2-1

0940714403
ref: 2-1

CLAMP(L:125)

€ 2.50

2-2

0940718402
ref: 2-2

CLAMP(L:165)

€ 2.50

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

3685303400
ref: 4

WIRE,MAGNETO LEAD

€ 0.00

3782014X50
ref: 5

SWITCH ASSY,ENGINE STOP

€ 24.50

3723846401
ref: 6

LABEL,ENGINE STEP SWITCH

€ 0.00

3723846411
ref: 7

LABEL,ENGINE STEP SWITCH

€ 0.00

3595030910
ref: 8

REFLEX REFLECTOR,FR

€ 43.50

0831610053
ref: 9
08316-1005A

NUT

€ 2.50

3597030910
ref: 10

REFLEX REFLECTOR,RR

€ 47.50

0831620053
ref: 11
08316-2005A

NUT

€ 2.00

3597007F00
ref: 12
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

0831620053
ref: 13
08316-2005A

NUT

€ 2.00

WIRING HARNESS (MODEL K2/K3/K4)

all assemblies
