HANDLEBAR - CABLE

JR80 2003 (K3) USA (E03)

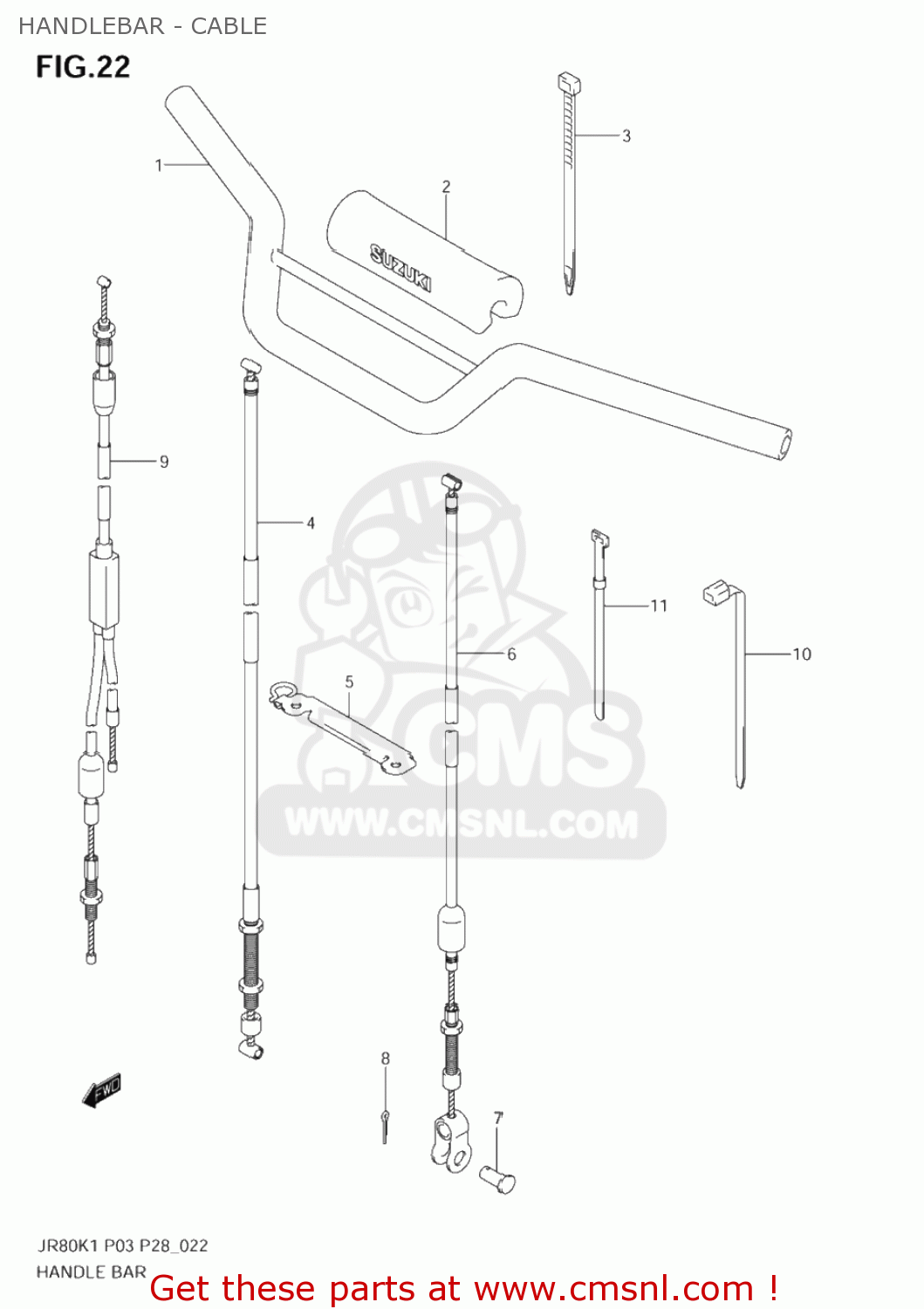

Handlebar - cable diagram JR80 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

56110034A0291
ref: 1-1
56110-034A1-291

HANDLEBAR(BLACK)

€ 39.50

1-2

HANDLEBAR(BLACK)

€ 39.50

5617203401
ref: 2
56172-24500

PAD,CROSSBAR

€ 11.50

0940714407
ref: 3

CLAMP(L:145)

€ 4.00

58110034A0
ref: 4

CABLE,FR BRAKE

€ 15.50

58620034A0
ref: 5

GUIDE,FR BRAKE CABLE

€ 8.50

58200034A0
ref: 6

CABLE ASSY,CLUTCH

€ 12.50

0920006004
ref: 7

PIN(L:13)

€ 1.50

0411120158
ref: 8
04111-2015A

PIN

€ 1.50

58300034A0
ref: 9

CABLE ASSY,THROTTLE

€ 31.00

0940714403
ref: 10

CLAMP(L:125)

€ 2.50

0940718402
ref: 11

CLAMP(L:165)

€ 2.50
