WIRING HARNESS (MODEL K1)

JR80 2003 (K3) USA (E03)

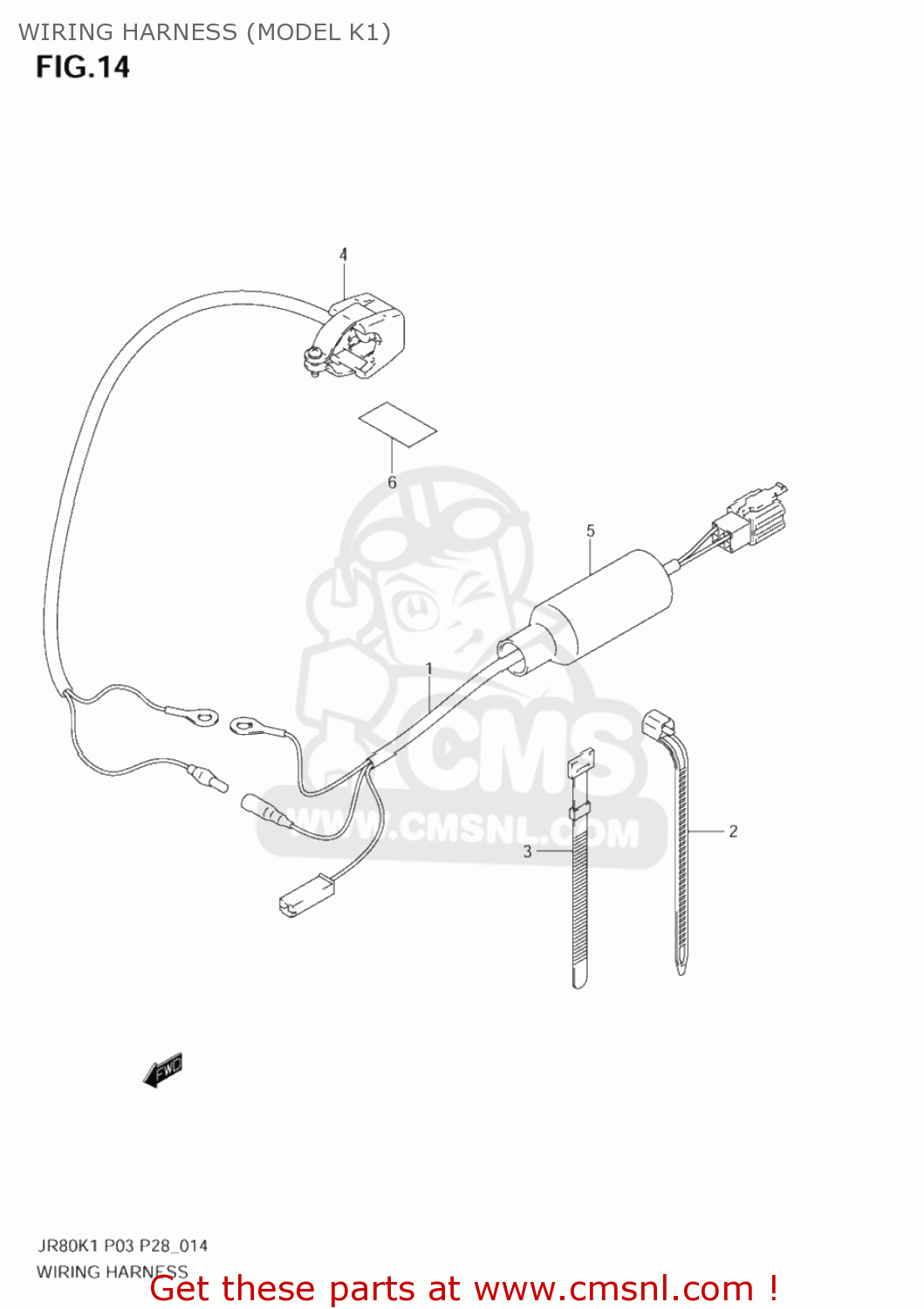

Wiring harness (model k1) diagram JR80 2003 (K3) USA (E03)

WIRING HARNESS (MODEL K1) JR80 2003 (K3) USA (E03)

WIRING HARNESS (MODEL K1) JR80 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661003411
ref: 1

HARNESS,WIRING

€ 0.00

2-1

0940714403
ref: 2-1

CLAMP(L:125)

€ 2.50

2-2

0940718402
ref: 2-2

CLAMP(L:165)

€ 2.50

3

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

4

3782014X50
ref: 4

SWITCH ASSY,ENGINE STOP

€ 24.50

5

3661844200
ref: 5

COVER,WIRE

€ 4.00

6

3723846401
ref: 6

LABEL,ENGINE STEP SWITCH

€ 0.00
