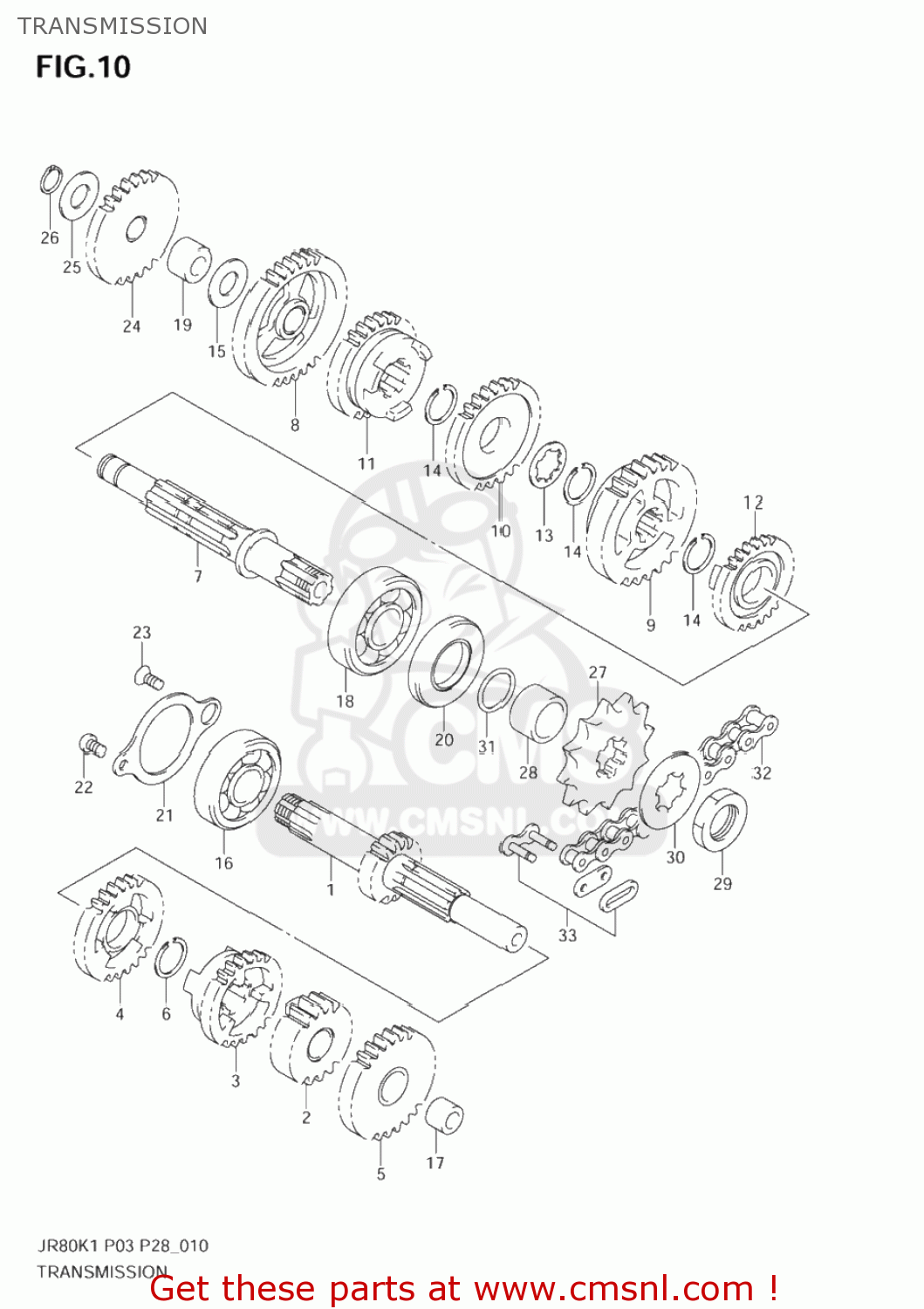

TRANSMISSION

ref

part #

description

quantity

1

2412146001
ref: 1

SHAFT,COUNTER(NT:13)

€ 47.50

2

2422046000
ref: 2

GEAR,2ND DRIVE(NT:19)

€ 0.00

3

2423146001
ref: 3

GEAR,3RD DRIVE(NT:22)

€ 0.00

4

2424146000
ref: 4

GEAR,4TH DRIVE(NT:24)

€ 31.50

5-1

2425146001
ref: 5-1

GEAR,FIFTH DRIVE

€ 32.50

5-2

2425146002
ref: 5-2
24251-46001

GEAR,5TH DRIVE

€ 32.50

6

0938017007
ref: 6

CIRCLIP

€ 2.00

7

2413146000
ref: 7

SHAFT,DRIVE

€ 77.00

8

2431046001
ref: 8

GEAR,1ST DRIVEN(NT:35)

€ 31.50

9

2432146001
ref: 9

GEAR,2ND DRIVEN(NT:32)

€ 50.00

10

2433146000
ref: 10

GEAR,3RD DRIVEN(NT:29)

€ 38.50

11

2434146000
ref: 11

GEAR,4TH DRIVEN(NT:36)

€ 39.50

12

2435146000
ref: 12

GEAR,5TH DRIVEN(NT:24)

€ 40.00

13

0916013006
ref: 13

WASHER(13X24X1)

€ 2.50

14

0938017007
ref: 14

CIRCLIP

€ 2.00

15

0916717003
ref: 15

WASHER,LOCK

€ 1.50

16

0926217023
ref: 16

BEARING(17X40X12)

€ 14.00

17

0930313001
ref: 17

BUSH

€ 6.50

18

0811363030
ref: 18

BEARING

€ 15.50

19

0930313001
ref: 19

BUSH

€ 6.50

20

0928321003
ref: 20

SEAL,OIL(21X40X6)

€ 5.50

21

2474146000
ref: 21

RETAINER,CNTR SHAFT BEARING

€ 3.50

22-1

0211206103
ref: 22-1
02112-0610B

SCREW

€ 1.50

22-2

0912506112
ref: 22-2

SCREW(6X10)

€ 2.50

23-1

0212206123
ref: 23-1
02122-0612A

SCREW

€ 3.00

23-2

0912606011
ref: 23-2

SCREW(6X12)

€ 2.00

24

2626046001
ref: 24

GEAR,KICK STARTER IDLE

€ 24.00

25

0821112261
ref: 25

WASHER

€ 2.50

26

0833131126
ref: 26
08331-3112A

CIRCLIP,12 MM

€ 2.00

27

2751146700
ref: 27

SPROCKET,ENGINE

€ 9.50

28

0918017008
ref: 28

SPACER(17X21X13)

€ 7.00

29

0914016002
ref: 29

NUT

€ 4.00

30

0916716001
ref: 30

WASHER,LOCK

€ 1.50

31

0928017001
ref: 31

O RING(D:1,ID:16.8)

€ 2.00

32

2760020910112
ref: 32

CHAIN,DRIVE

€ 38.00

33

2762020910
ref: 33

JOINT,CHAIN

€ 3.00
