KICK STARTER

JR80 2003 (K3) USA (E03)

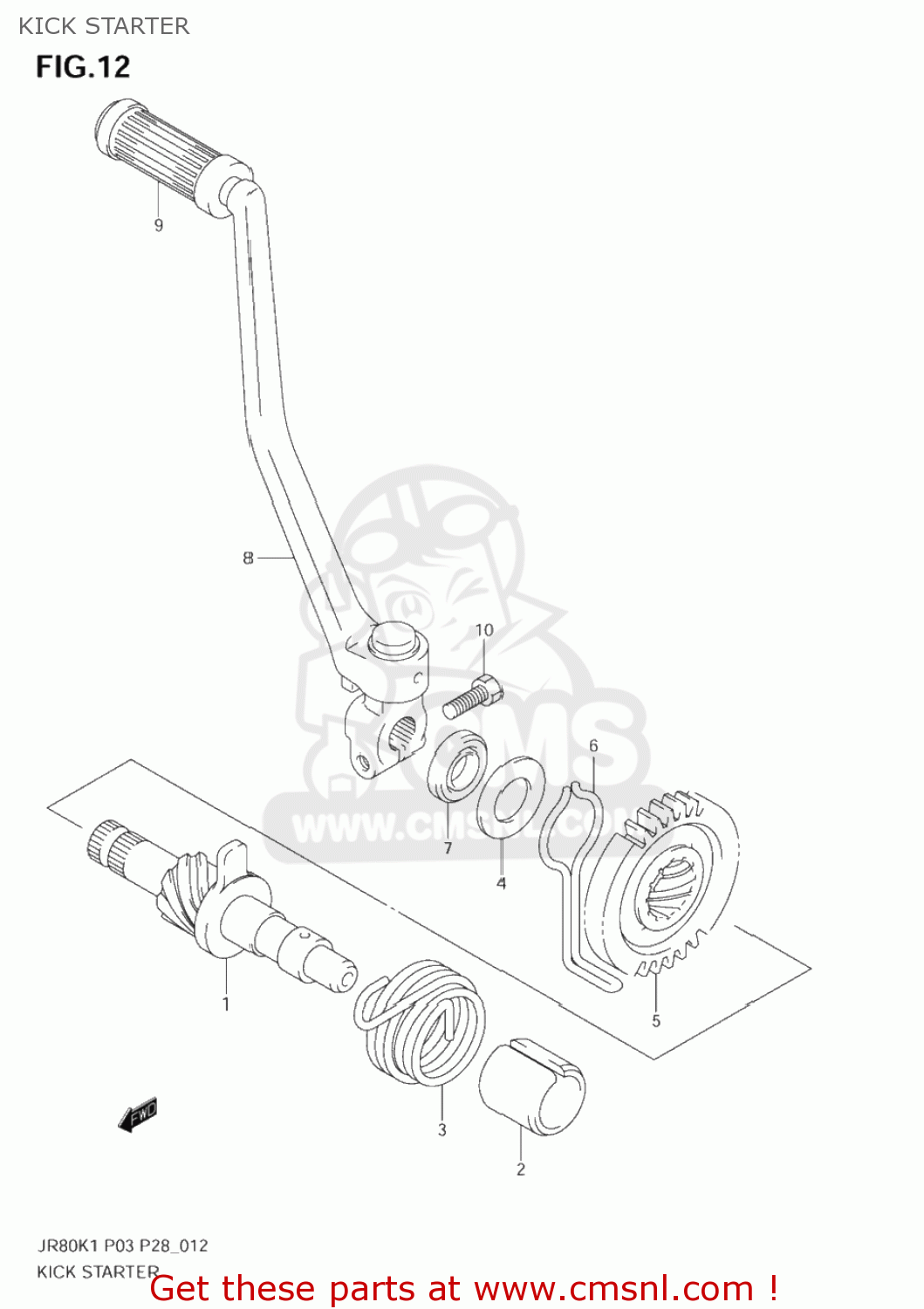

Kick starter diagram JR80 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

2621046001
ref: 1

SHAFT,KICK STARTER

€ 52.50

2622146000
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 5.50

0944840001
ref: 3

SPRING

€ 5.50

0916014046
ref: 4
09160-14046-XC0

WASHER

€ 4.50

2624146000
ref: 5

GEAR,KICK STARTER DRIVE(NT:30)

€ 42.50

0938428001
ref: 6

RETAINER,SNAP

€ 2.50

0928514001
ref: 7

SEAL,OIL(14X24X6)

€ 9.50

2630026420
ref: 8

LEVER ASSY,KICK STARTER

€ 69.50

2635201000
ref: 9

RUBBER,KICK STARTER PEDAL

€ 4.00

0910306185
ref: 10

BOLT(6X20)

€ 2.00
