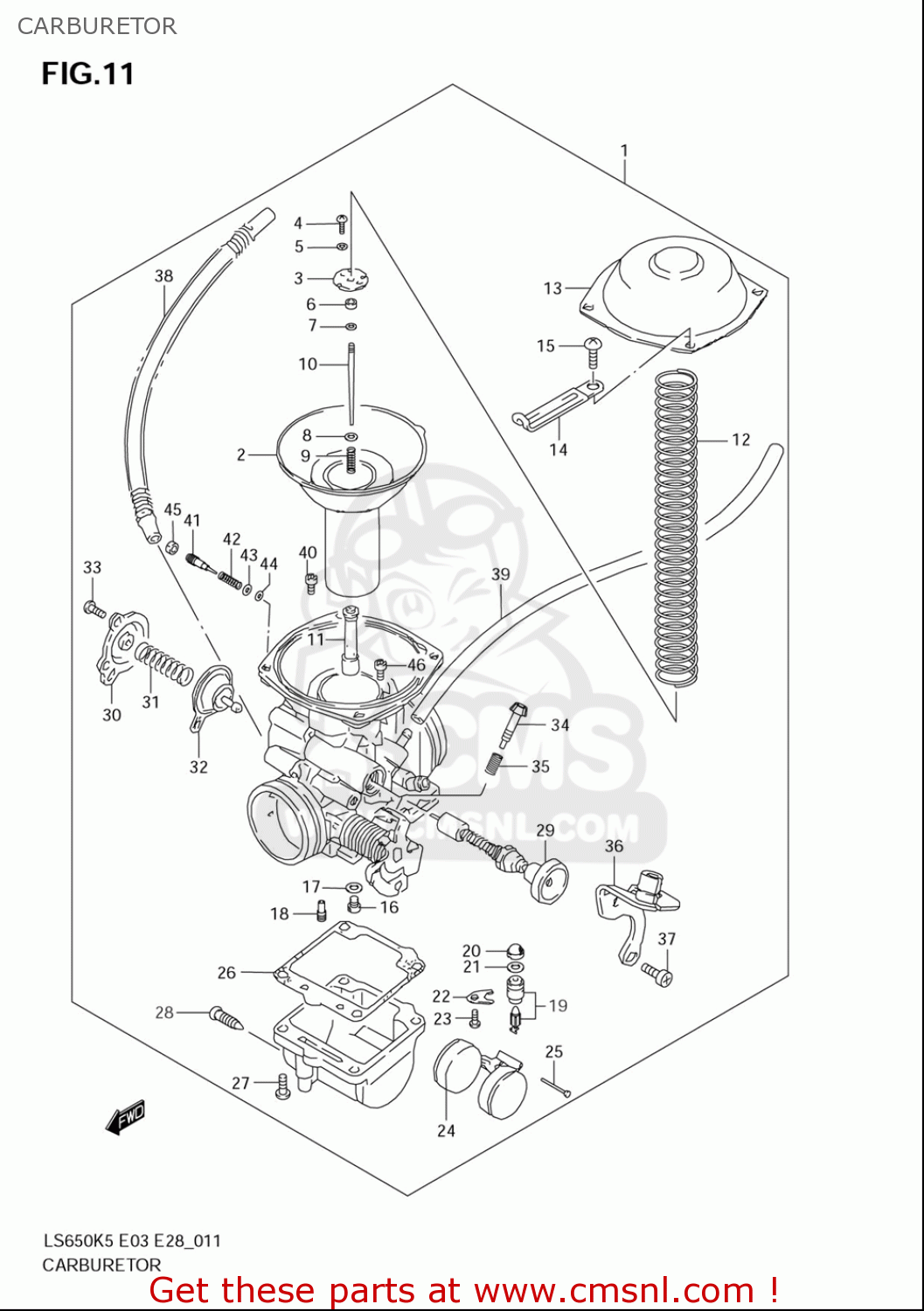

CARBURETOR

ref

part #

description

quantity

1-1

1320024C90
ref: 1-1

CARBURETOR ASSY

€ 0.00

1-2

1320024CA0
ref: 1-2

CARBURETOR ASSY

€ 0.00

2

1350024B40
ref: 2

DIAPHRAGM ASSY

€ 136.00

3

1338937400
ref: 3

PLATE

€ 5.50

4

0211203063
ref: 4

SCREW

€ 2.00

5

0832121033
ref: 5

WASHER,LOCK

€ 1.50

6

1338744030
ref: 6

RING

€ 5.00

7

1339431210
ref: 7

CLIP,NEEDLE

€ 3.50

8

1338244030
ref: 8

WASHER

€ 3.50

9

1338844030
ref: 9

SPRING

€ 6.00

10

1338324C40
ref: 10

NEEDLE,JET(5C17)

€ 11.50

11

0949400861
ref: 11

JET,NEEDLE(X-7M)

€ 0.00

12

1350324B00
ref: 12

SPRING

€ 11.00

14

0940406434
ref: 14

CLAMP(L:80 T:1.0)

€ 3.00

15

021120510A
ref: 15

SCREW

€ 2.00

16

0949129013
ref: 16

JET,MAIN(145)

€ 10.50

17

1338203110
ref: 17

WASHER

€ 2.50

18

0949252010
ref: 18

JET,PILOT(52.5)

€ 12.50

19

1337024C80
ref: 19

VALVE ASSY,NEEDLE

€ 66.50

20

1337619F00
ref: 20

FILTER

€ 6.50

21

1337435C00
ref: 21

O RING,NEEDLE VALVE SEAT

€ 6.00

22

1337339110
ref: 22

PLATE

€ 6.50

23

0211204063
ref: 23

SCREW 4X6

€ 2.00

24

1325037400
ref: 24

FLOAT

€ 26.00

25

1325492311
ref: 25

PIN,FLOAT

€ 2.00

26

1325138300
ref: 26

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

27

0211235163
ref: 27

SCREW

€ 2.50

28

1324702340
ref: 28

PLUG,DRAIN

€ 5.50

29

1341124C00
ref: 29

PLUNGER ASSY

€ 42.00

30

1348438A10
ref: 30

COVER

€ 16.00

31

1348138B40
ref: 31

SPRING

€ 5.50

32

1348005A10
ref: 32

DIAPHRAGM ASSY

€ 54.50

33

0211204103
ref: 33

SCREW

€ 1.00

34

1326725D00
ref: 34

ADJUSTER

€ 9.00

35

1327193011
ref: 35

SPRING

€ 4.50

36

1362124B01
ref: 36

BRACKET ASSY

€ 32.50

37

021120510A
ref: 37

SCREW

€ 2.00

38

1331824C00
ref: 38

HOSE ASSY

€ 18.50

39

0935250823600
ref: 39

HOSE(5X8.2X600)

€ 13.00

40

0949146005
ref: 40

JET,PILOT(230)

€ 12.00

41

1326937400
ref: 41

SCREW,AIR

€ 9.50

42

1326847070
ref: 42

SPRING

€ 5.00

43

1329129900
ref: 43

WASHER

€ 2.00

44

1329529900
ref: 44

O RING,PILOT AIR SCREW

€ 4.00

45

1328105A00
ref: 45

PLUG

€ 3.50

46

0949145002
ref: 46

JET(45)

€ 9.50
