REAR COMBINATION LAMP
LS650 2005 (K5) USA (E03)

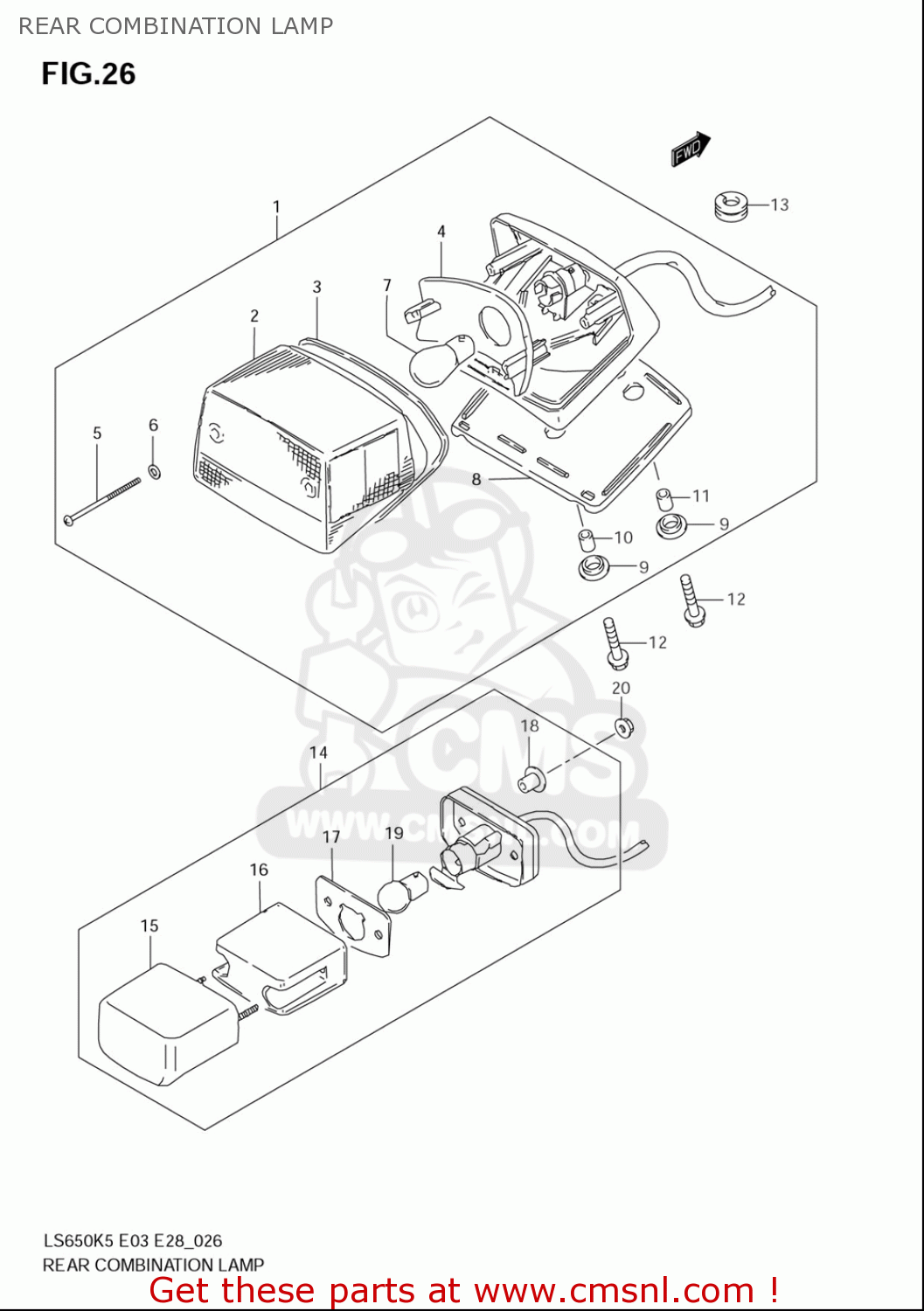

Rear combination lamp diagram LS650 2005 (K5) USA (E03)
REAR COMBINATION LAMP LS650 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571024B40
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
2
3571224B30
ref: 2
LENS
€ 28.50
3
3571331D00
ref: 3
GASKET (NAS)
€ 9.50
4
3571438A00
ref: 4
REFLECTOR
€ 16.50
5
3572344130
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0947112128
ref: 7
BULB(12V21/5W,BF141-49642A)
€ 6.00
9
3576426470
ref: 9
CUSHION
€ 2.50
10
3576640640
ref: 10
SPACER
€ 0.00
11
3576624B40
ref: 11
SPACER
€ 0.00
12
0911606093
ref: 12
BOLT(6X25)
€ 2.00
13
0930809004
ref: 13
GROMMET
€ 0.00
14-1
3591024B40
ref: 14-1
LAMP ASSY,LICENSE
€ 0.00
14-2
3591024B50
ref: 14-2
LAMP ASSY,LICENSE
€ 0.00
15
3591717C10
ref: 15
COVER,LENS
€ 72.00
16
3591238A30
ref: 16
LENS
€ 11.50
17
3591338A30
ref: 17
GASKET,LICENSE LAMP (NAS)
€ 2.00
18
3596624B40
ref: 18
SPACER
€ 0.00
19
0947112058
ref: 19
BULB
€ 4.00
20
0831610043
ref: 20
NUT, LICENSE
€ 2.50
