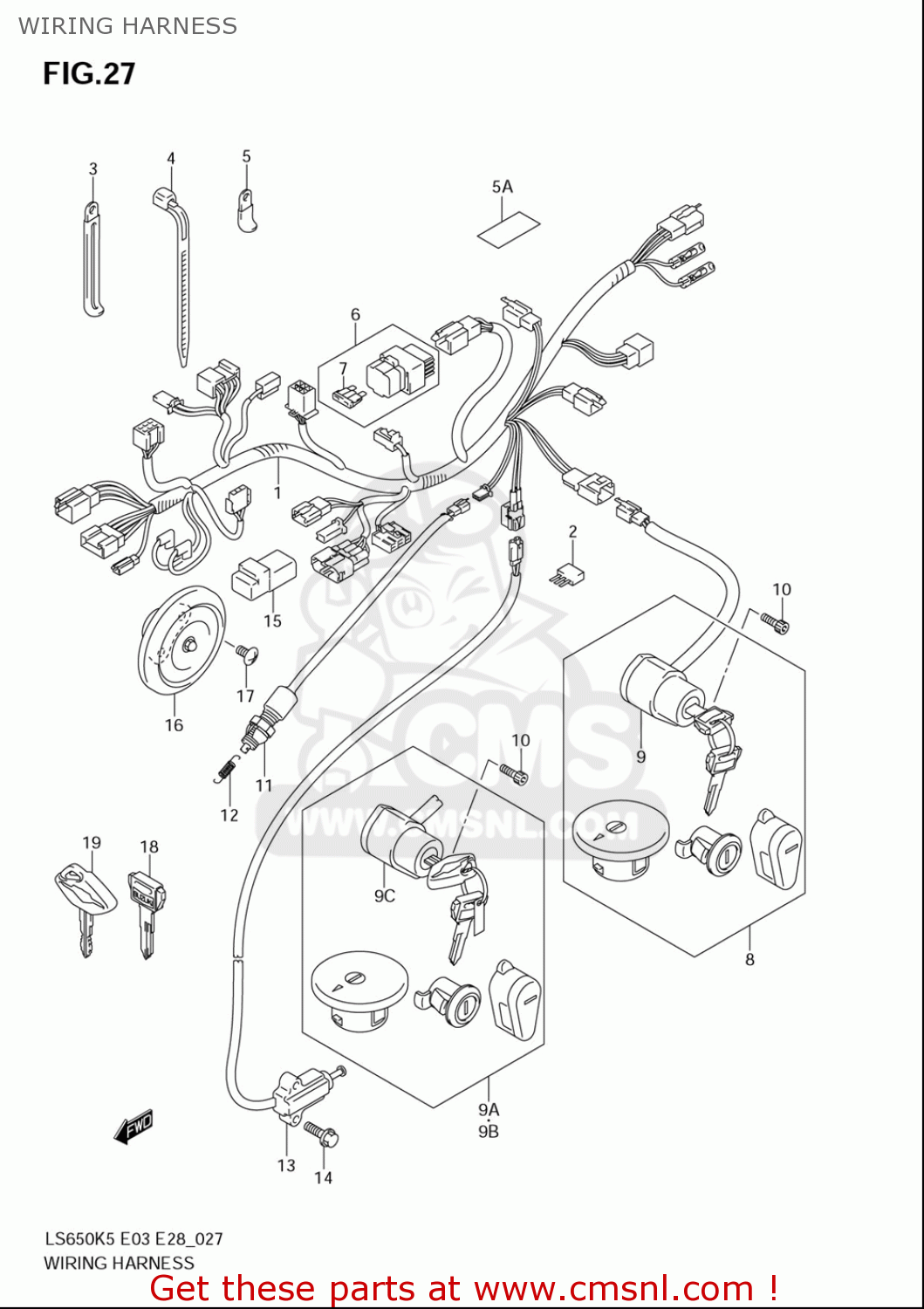

WIRING HARNESS

ref

part #

description

quantity

1-1

3661024BB0
ref: 1-1

HARNESS,WIRING

€ 0.00

1-2

3661024BD0
ref: 1-2

HARNESS,WIRING

€ 0.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0940408207
ref: 3

CLAMP(L:80)

€ 3.00

4-1

0940711401
ref: 4-1

CLAMP(L:95)

€ 2.50

4-2

0940714403
ref: 4-2

CLAMP(L:125)

€ 2.50

4-3

0940718402
ref: 4-3

CLAMP(L:165)

€ 2.50

4-4

0940725401
ref: 4-4

CLAMP(L:235)

€ 4.00

5

3665124B10
ref: 5

CLAMP,WIRING HARNESS

€ 0.00

5A

3692008D10
ref: 5A

PROTECTOR(30X30X3)

€ 2.00

6

3674024B01
ref: 6

BOX ASSY,FUSE

€ 18.00

7

0948120101
ref: 7

FUSE(20A)

€ 2.00

8-1

3710024844
ref: 8-1

LOCK SET

€ 262.50

8-2

3710024880
ref: 8-2

LOCK SET

€ 0.00

9

3711024B03
ref: 9

SWITCH ASSY,IGNITION

€ 71.00

9A

3710124830
ref: 9A

LOCK SET

€ 0.00

9B

3710124840
ref: 9B

LOCK SET

€ 0.00

9C

3711024B10
ref: 9C

SWITCH ASSY,IGNITION

€ 134.50

11

3774031D00
ref: 11

SWITCH ASSY,STOP LAMP

€ 20.50

12

0944306077
ref: 12

SPRING

€ 4.50

13

3784012X50
ref: 13

SWITCH ASSY,SIDE STAND WARNING

€ 76.00

14

015500620A
ref: 14

BOLT

€ 2.50

15

3874024X50
ref: 15

RELAY ASSY

€ 37.50

16

3850024B00
ref: 16

HORN ASSY

€ 52.00

17

021420612A
ref: 17

SCREW

€ 2.00

18-1

3714603A00
ref: 18-1

KEY,BLANK(TYPE:C)

€ 6.00

18-2

3714603A10
ref: 18-2

KEY,BLANK(TYPE:D)

€ 6.00

18-3

3714603A20
ref: 18-3

KEY,BLANK(TYPE:E)

€ 6.00

18-4

3714603A30
ref: 18-4

KEY,BLANK(TYPE:F)

€ 6.00

19-1

3714638B00
ref: 19-1

KEY,BLANK(TYPE:C)

€ 0.00

19-3

3714638B20
ref: 19-3

KEY,BLANK(TYPE:E)

€ 0.00
