SEAT

LS650 2005 (K5) USA (E03)

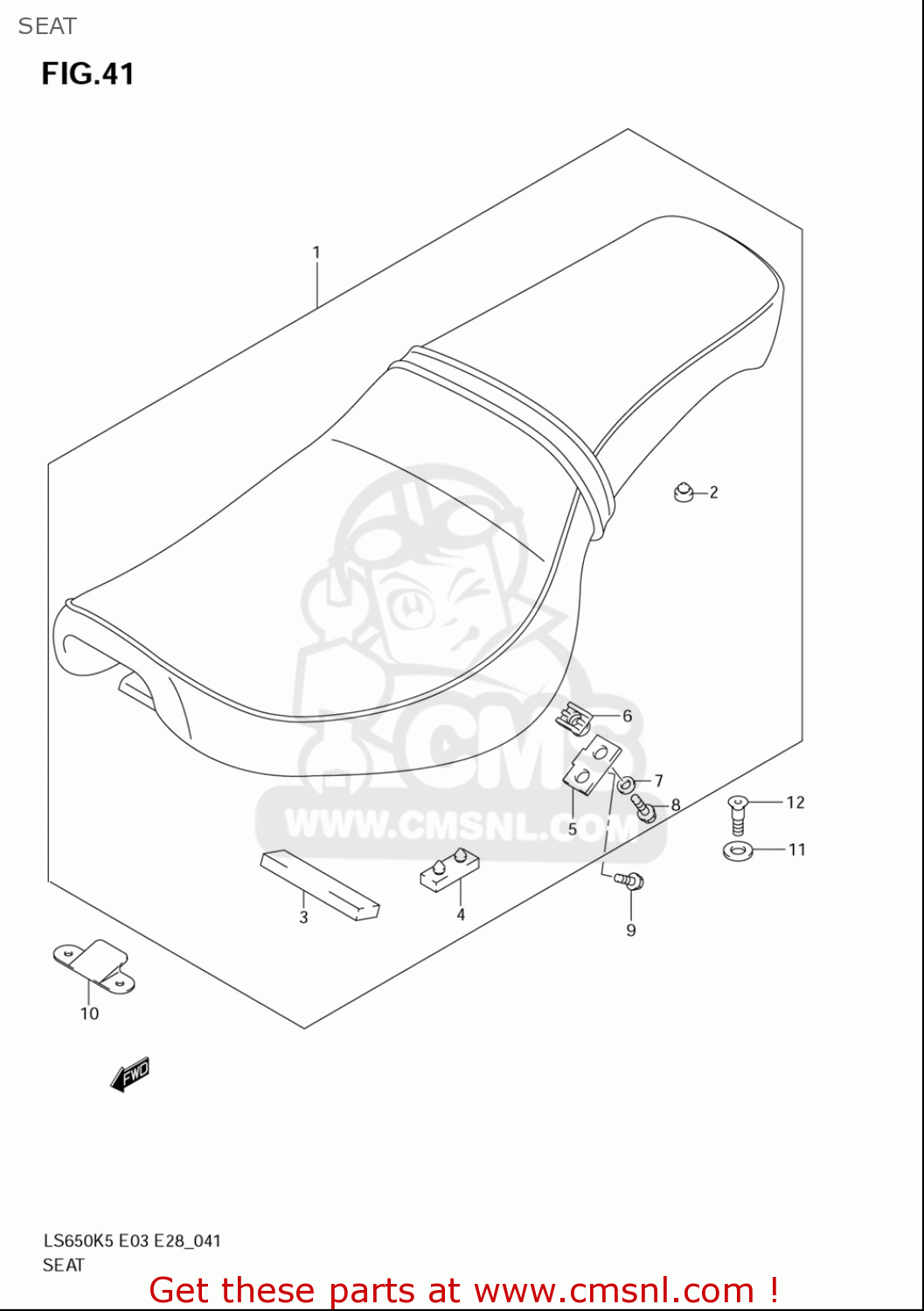

Seat diagram LS650 2005 (K5) USA (E03)

SEAT LS650 2005 (K5) USA (E03)

SEAT LS650 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4510024BA0HW9
ref: 1

SEAT ASSY

€ 0.00

2

4514924B00
ref: 2

CUSHION,SEAT

€ 0.00

3

4511624B00
ref: 3

CUSHION,CTR FR

€ 5.00

4

4514943500
ref: 4

CUSHION,SEAT

€ 3.00

5

4511424B00
ref: 5

BRACKET,SEAT RR

€ 6.00

6

4511824B00
ref: 6

CUSHION,SEAT RR BRACKET

€ 2.50

7

0916006066
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

8

015500625A
ref: 8

BOLT

€ 2.50

9

015500612A
ref: 9

BOLT

€ 2.50

10

4511924B00
ref: 10

PLATE,SEAT HOOK FR

€ 2.00

11

4514924BA0
ref: 11

CUSHION,SEAT RR

€ 0.00

12

0913906115
ref: 12

SCREW(6X12)

€ 4.50

all assemblies
