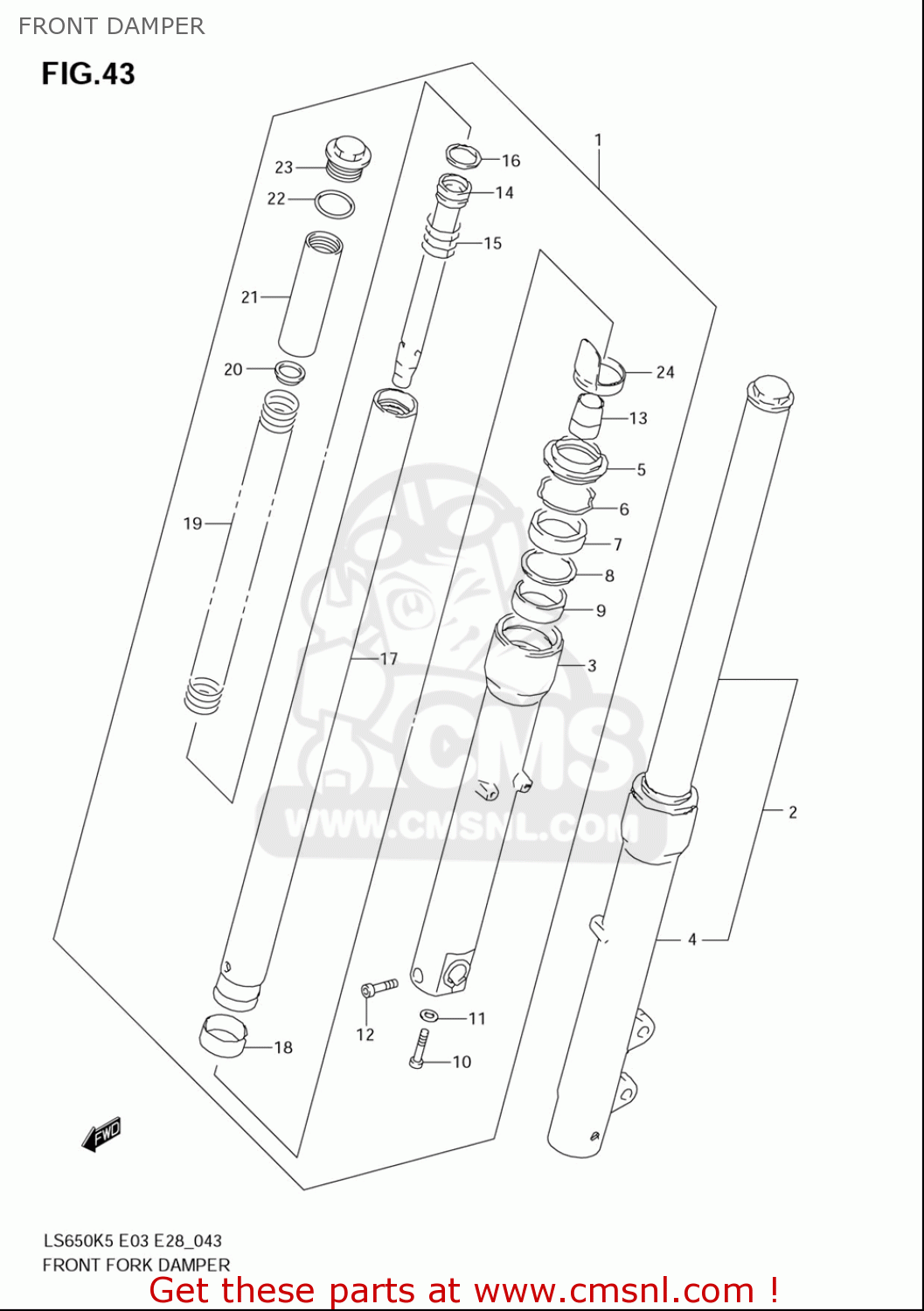

FRONT DAMPER

ref

part #

description

quantity

1

5110324B50
ref: 1

DAMPER ASSY,FR FORK,R

€ 0.00

2

5110424B50
ref: 2

DAMPER ASSY,FR FORK,L

€ 0.00

3

5113024B50
ref: 3

TUBE,OUTER,R

€ 0.00

4

5114024B50
ref: 4

TUBE,OUTER,L

€ 0.00

5

5117320A00
ref: 5

SEAL,DUST

€ 11.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5115320A00
ref: 7

SEAL,OIL

€ 13.50

8

5115814100
ref: 8

WASHER(40X50X2.3)

€ 2.50

9

5116713A00
ref: 9

METAL,SLIDE

€ 7.00

10

5114716510
ref: 10

BOLT,FORK CYLINDER(10X25)

€ 3.50

11

5114841310
ref: 11

GASKET (NAS)

€ 2.50

12

0713008407
ref: 12

BOLT

€ 3.50

14

5114624B01
ref: 14

CYLINDER

€ 53.00

15

5117749440
ref: 15

SPRING,REBOUND

€ 6.50

17

5112024B01
ref: 17

TUBE,INNER

€ 301.50

18

5112114100
ref: 18

PISTON

€ 10.50

19

5117124B00
ref: 19

SPRING

€ 55.00

20

5117245C00
ref: 20

WASHER

€ 4.50

21

5117624B01
ref: 21

SPACER,SPRING

€ 6.50

22

5111740300
ref: 22

O RING

€ 2.50

23

5135124B00
ref: 23

CAP

€ 46.00

24

5120101DA0
ref: 24

PROTECTOR,FR FORK

€ 19.50

all assemblies
