FRAME

LS650 2005 (K5) USA (E03)

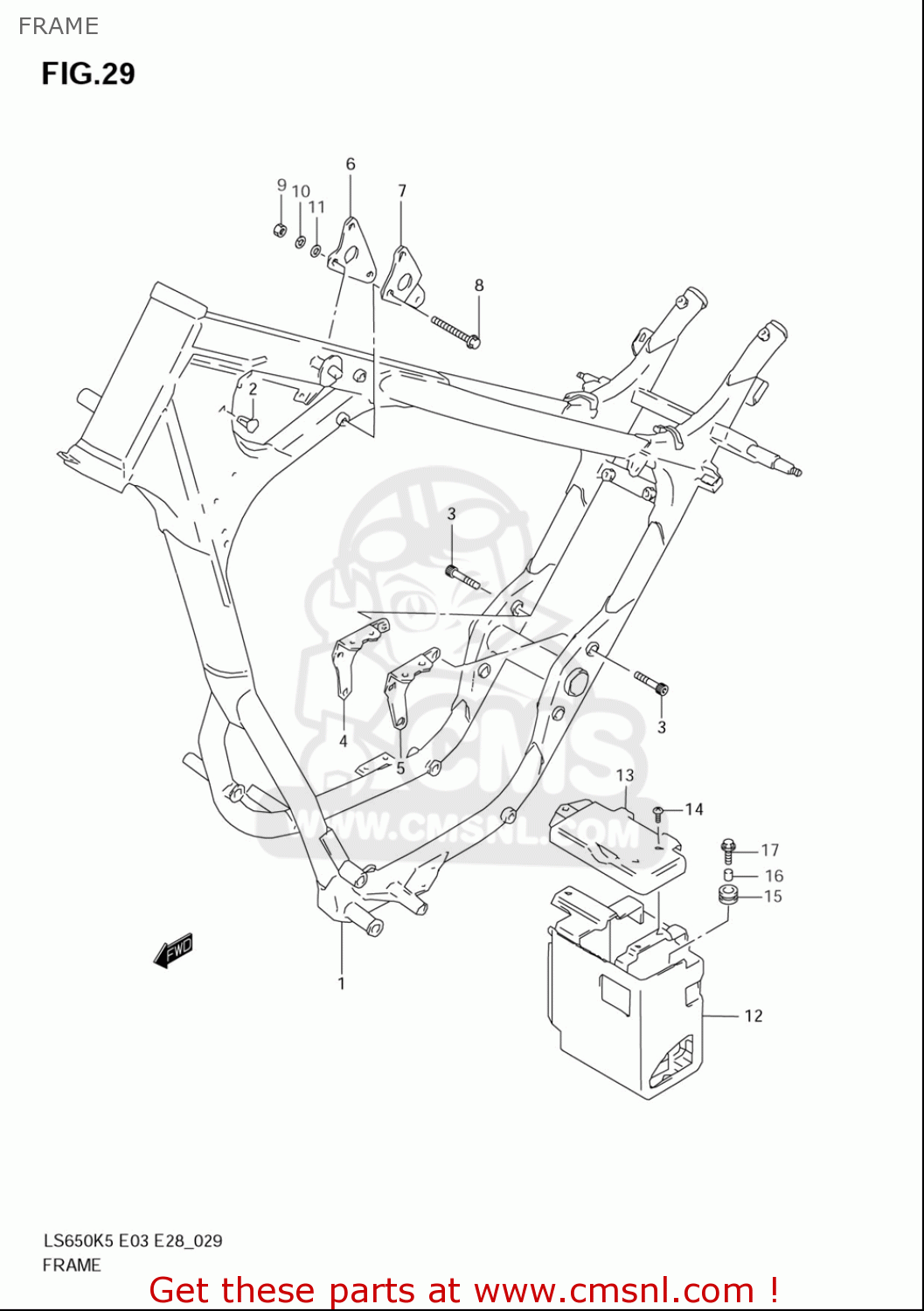

Frame diagram LS650 2005 (K5) USA (E03)

FRAME LS650 2005 (K5) USA (E03)

FRAME LS650 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110024B01019
ref: 1

FRAME(BLACK)

€ 562.50

3

0910608074
ref: 3

BOLT(8X40)

€ 3.50

5

4198024B00019
ref: 5

PLATE,ENGINE MOUNT NO.4,L

€ 10.50

6

4199124B00019
ref: 6

PLATE,ENGINE MOUNT NO.5,R

€ 7.50

7

4199224B00019
ref: 7

PLATE,ENGINE MOUNT NO.5,L

€ 7.50

9

0831921088
ref: 9

NUT

€ 1.50

10

083210108A
ref: 10

WASHER,LOCK

€ 2.00

11

083220108A
ref: 11

WASHER

€ 2.00

12

4154024B01
ref: 12

HOLDER,BATTERY

€ 87.50

13

4157624B01
ref: 13

COVER,BATTERY

€ 20.00

14

0214204107
ref: 14

SCREW

€ 1.50

15

0932008021
ref: 15

CUSHION

€ 4.00

16

0918006260
ref: 16

SPACER(6.5X9X7.2)

€ 3.50

17

0911606010
ref: 17

BOLT(6X20)

€ 2.00
