FRONT MASTER CYLINDER
LS650 2005 (K5) USA (E03)

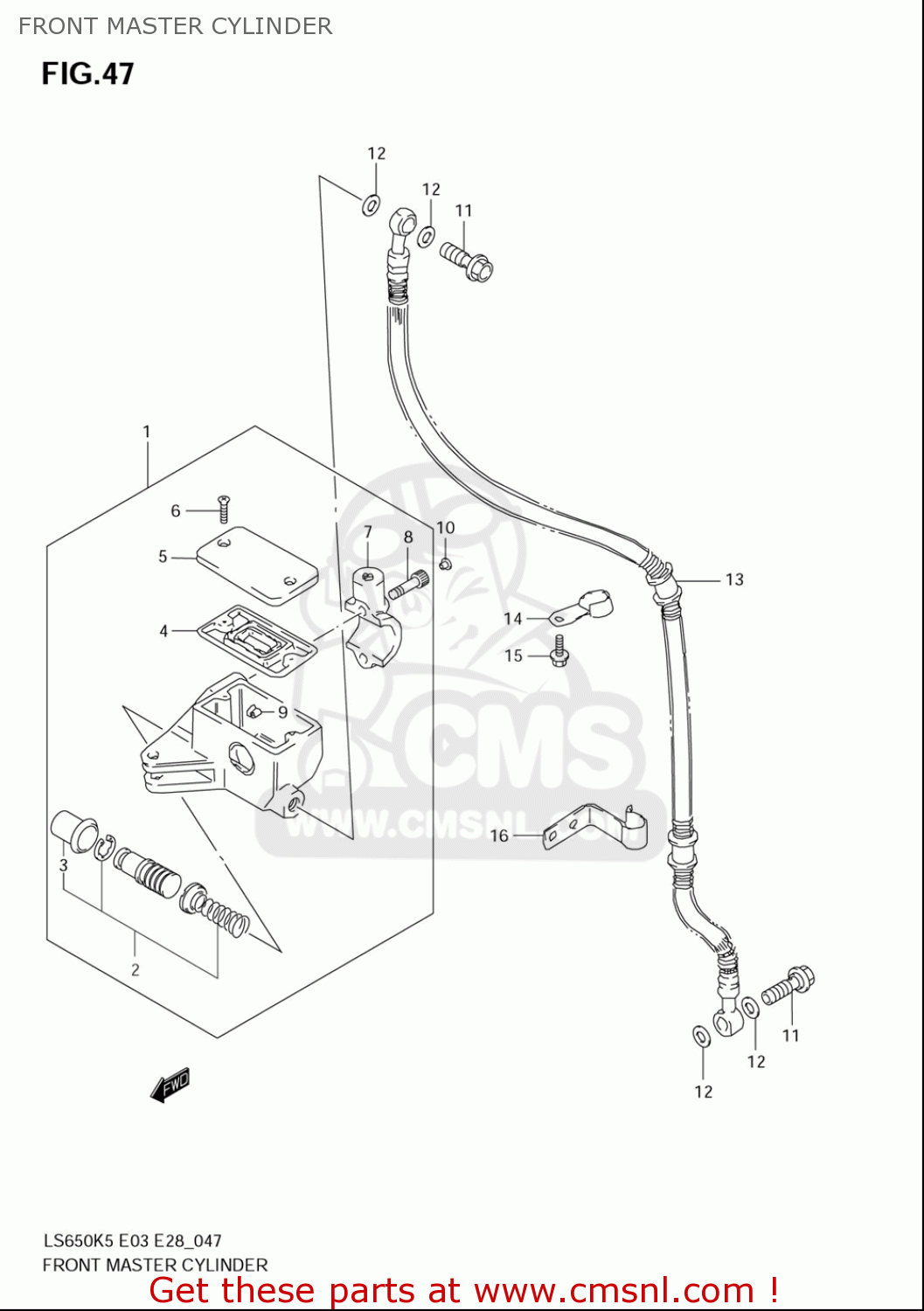

Front master cylinder diagram LS650 2005 (K5) USA (E03)
FRONT MASTER CYLINDER LS650 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960038AA0
ref: 1
CYLINDER ASSY,FR MASTER
€ 0.00
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966749460
ref: 4
5966749460
5
5966910F00
ref: 5
CAP
€ 59.50
6
0212204127
ref: 6
SCREW
€ 2.00
7
5967138A00
ref: 7
HOLDER
€ 37.50
8
0713006207
ref: 8
BOLT
€ 3.50
9
5966448B00
ref: 9
PROTECTOR
€ 8.00
10
0925005008
ref: 10
CAP(OD:10)
€ 5.00
11
0936010041
ref: 11
BOLT UNION
€ 6.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948024B40
ref: 13
HOSE, FRONT BRAKE
€ 81.50
15
0154706103
ref: 15
BOLT
€ 3.00
16
5926824B00
ref: 16
GUIDE,BRAKE HOSE NO.2
€ 7.50
