MAGNETO

LS650 2005 (K5) USA (E03)

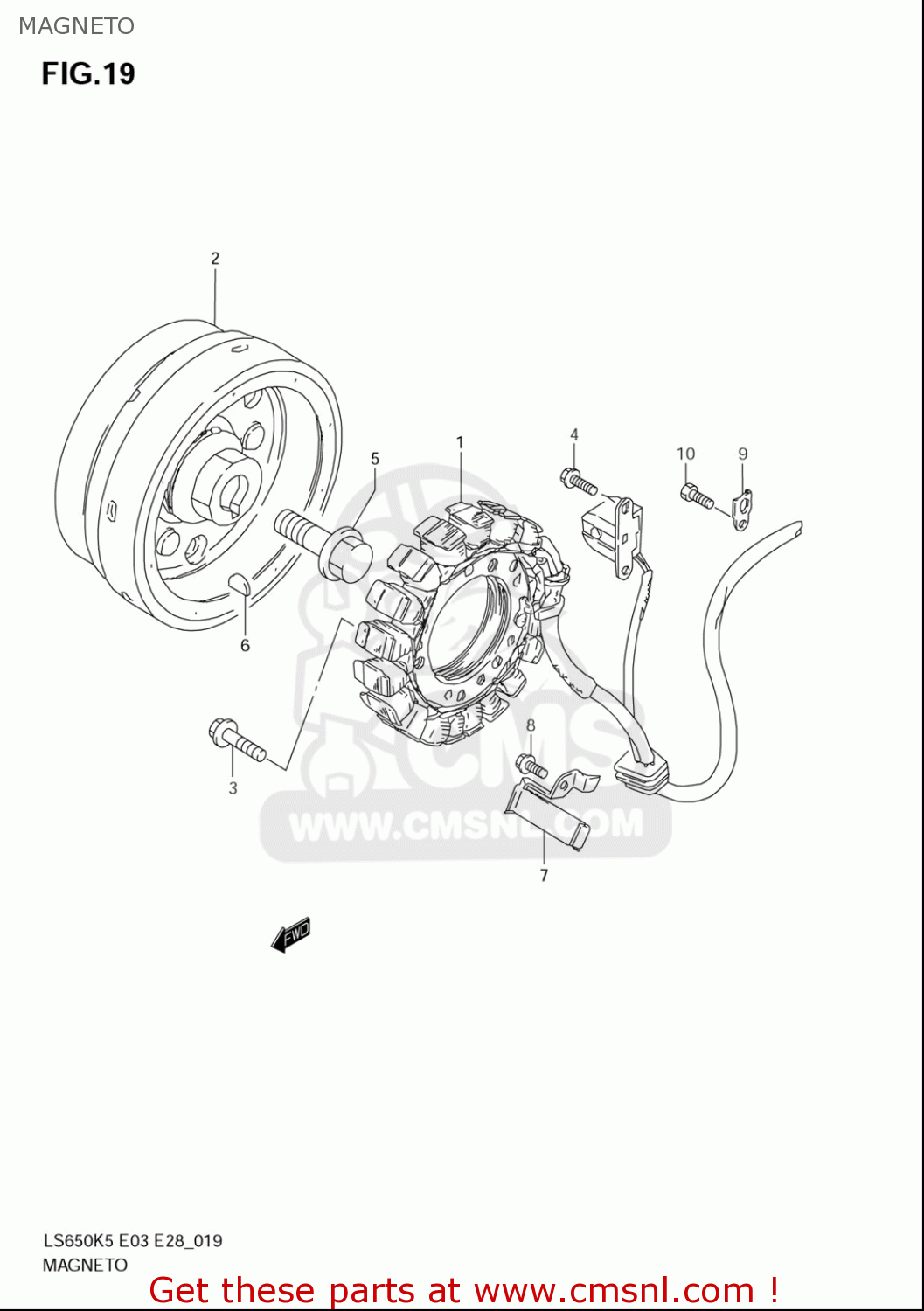

Magneto diagram LS650 2005 (K5) USA (E03)

MAGNETO LS650 2005 (K5) USA (E03)

MAGNETO LS650 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210124B02
ref: 1

STARTER ASSY

€ 603.00

2

3210224B10
ref: 2

ROTOR ASSY

€ 463.00

3

0154706253
ref: 3

SCREW

€ 2.50

4

0154705103
ref: 4

BOLT

€ 2.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

8

0154705103
ref: 8

BOLT

€ 2.50

9

3149745000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 1.50

10

0910005019
ref: 10

BOLT(5X10)

€ 1.50
