CYLINDER
PE175 1980 (T) USA (E03)

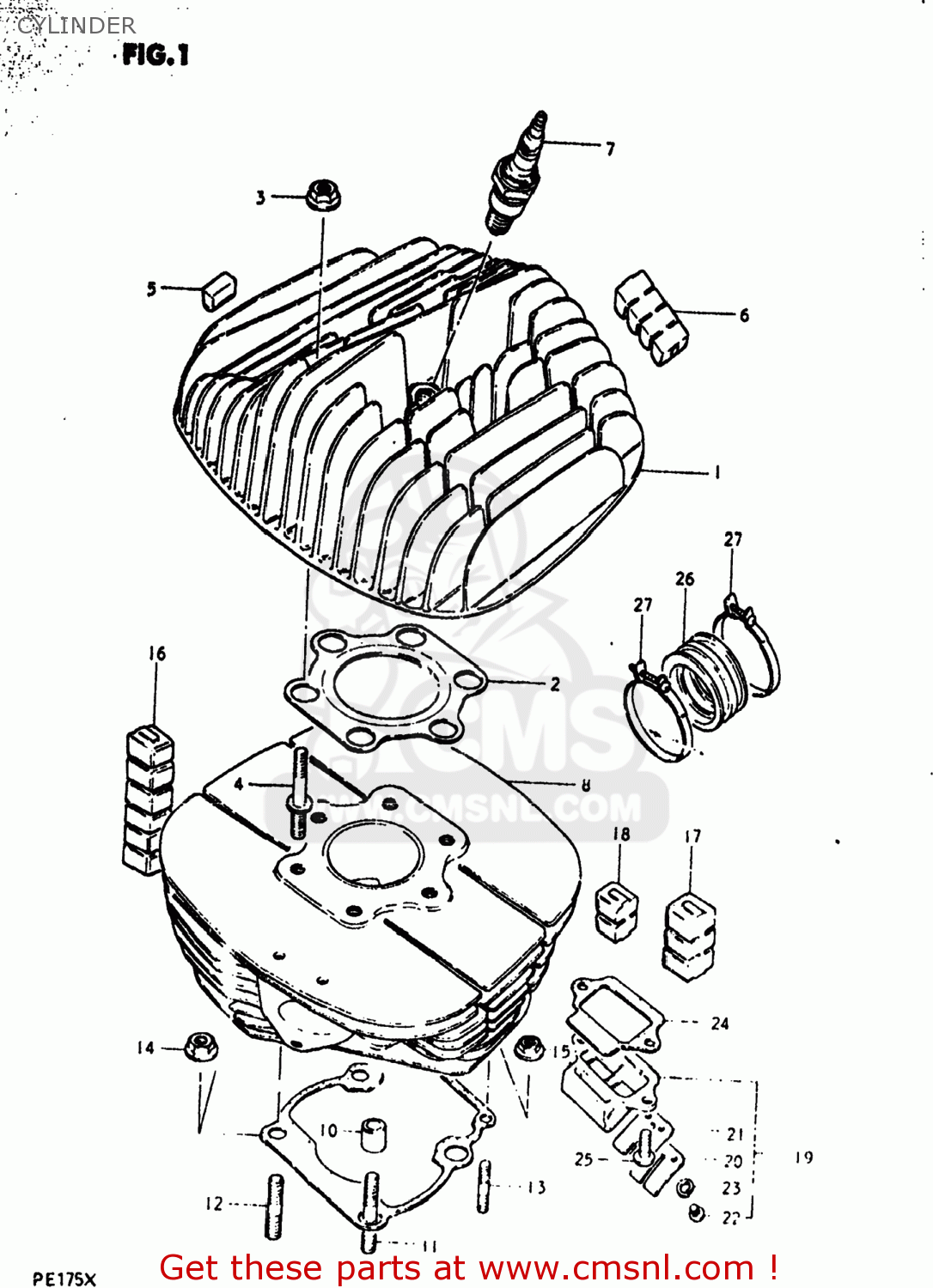

Cylinder diagram PE175 1980 (T) USA (E03)
CYLINDER PE175 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111140501
ref: 1
11111-40502
HEAD,CYLINDER
€ 0.00
2-1
1114140500
ref: 2-1
11141-40303
GASKET,CYLINDER HEAD (NAS)
€ 16.50
2-2
1114140501
ref: 2-2
11141-40303
GASKET,CYLINDER HEAD (NAS)
€ 16.50
3
0831616088
ref: 3
08316-10087
NUT
€ 2.50
4
0910808018
ref: 4
BOLT,STUD
€ 4.00
5-1
1125225000
ref: 5-1
PAD,CYLINDER
€ 5.00
5-2
1125225000
ref: 5-2
PAD,CYLINDER
€ 5.00
6
1125129310
ref: 6
11251-11300
PAD,CYLINDER
€ 11.50
7-1
0948200214
ref: 7-1
09482-00210
SPARK PLUG (CHAMPION)
€ 16.50
7-2
0948200210
ref: 7-2
PLUG,SPARK(B10EGV)
€ 16.50
8-1
1121040500
ref: 8-1
11210-40503
CYLINDER
€ 480.50
8-2
1121040501
ref: 8-2
11210-40503
CYLINDER
€ 480.50
9
1124140500
ref: 9
11241-40501
GASKET,CYLINDER (MCA)
€ 8.00
10
0920613001
ref: 10
04211-13189
PIN
€ 2.50
11
0142108408
ref: 11
09108-08144
STUD 8X40
€ 2.50
12
0142108258
ref: 12
01421-0825A
STUD 8X25
€ 2.50
13
0142106208
ref: 13
01421-0620A
STUD 6X20
€ 2.50
14
0831616088
ref: 14
08316-10087
NUT
€ 2.50
15
0831616068
ref: 15
08319-31067
NUT
€ 2.50
16
1125141510
ref: 16
11251-36500
PAD,CYLINDER
€ 6.50
17
1125141520
ref: 17
11251-36500
PAD,CYLINDER
€ 6.50
18
1125139110
ref: 18
11251-36500
PAD,CYLINDER
€ 6.50
19
1315040200
ref: 19
VALVE ASSY,REED
€ 110.50
20
1315240200
ref: 20
13150-40200
STOPPER,REED VALVE
€ 110.50
21
1315340200
ref: 21
VALVE,REED
€ 10.00
22
0211203088
ref: 22
02112-03087
SCREW
€ 1.50
23
0832121038
ref: 23
09162-03001
LOCK WASHER
€ 1.50
24
1315640200
ref: 24
13156-40200-H17
GASKET,REED VALVE (MCA)
€ 7.50
25
0211206168
ref: 25
02112-06167
SCREW
€ 2.50
26
1311140500
ref: 26
PIPE,INTAKE
€ 19.00
27
0940252306
ref: 27
CLAMP
€ 6.00
