FRONT WHEEL
PE175 1980 (T) USA (E03)

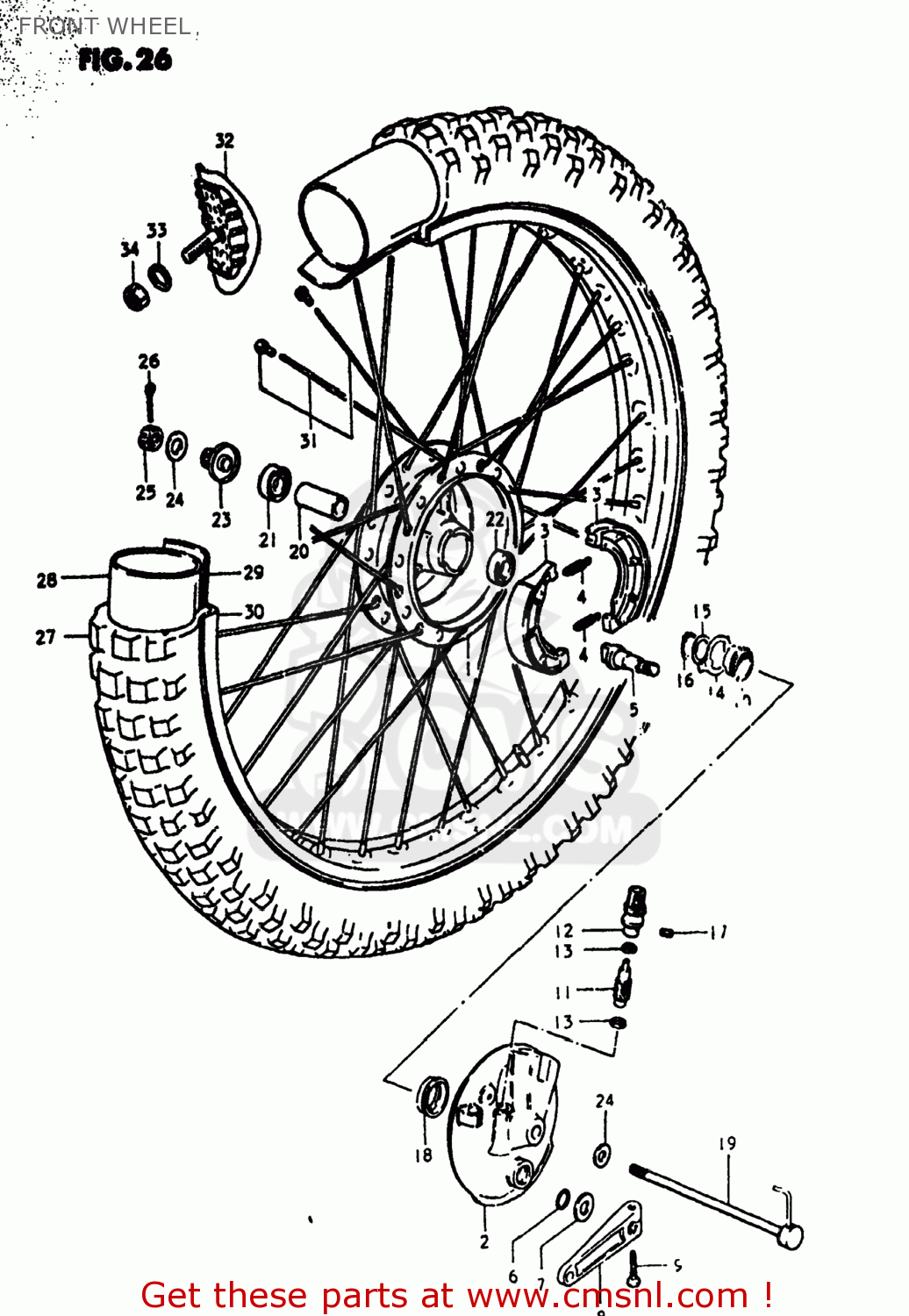

Front wheel diagram PE175 1980 (T) USA (E03)
FRONT WHEEL PE175 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411040201
ref: 1
HUB,FRONT
€ 156.50
2
5421041502
ref: 2
PANEL,FRONT HUB
€ 0.00
3
5441041500
ref: 3
54400-07870
SHOE BRAKE (MCA)
€ 35.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5
5444141300
ref: 5
CAM,FRONT BRAKE
€ 15.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7
0916012011
ref: 7
WASHER(12.5X20X1)
€ 1.50
8
5445141500
ref: 8
LEVER,FRONT BRAKE CAM
€ 22.50
9
0110706258
ref: 9
01500-06257
BOLT
€ 2.00
10
5461141500
ref: 10
54611-41501
GEAR,SPEEDOMETER
€ 8.00
11
5462141500
ref: 11
54621-41501
PINION,SPEEDOMETER
€ 5.00
12
5463201001
ref: 12
BUSH,METER GEAR OUTER
€ 9.00
13
0916005001
ref: 13
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
14
5466129300
ref: 14
DRIVER,SPEEDOMETER GEAR
€ 4.00
15
0916018002
ref: 15
WASHER(18.5X24X1)
€ 2.00
16
0833111189
ref: 16
CIRCLIP
€ 2.00
17
0913403101
ref: 17
09134-03101-A05
SCREW
€ 1.50
18
0928543001
ref: 18
09283-43004
OIL SEAL (43X58X7)
€ 10.00
19
5471040500
ref: 19
AXLE,FRONT
€ 40.50
20
0918012041
ref: 20
09180-12144
SPACER (12.6X19X52)
€ 4.50
21
0812362017
ref: 21
08133-62017
BEARING, RH
€ 15.00
22
0814362017
ref: 22
BEARING
€ 11.50
23
5474041100
ref: 23
54740-37200
SPACER,FRONT AXLE,RIGHT
€ 10.50
24
0832211128
ref: 24
08322-01127
WASHER
€ 2.00
25
0831441128
ref: 25
08314-4012A
NUT, REAR AXLE
€ 2.50
26
0411130308
ref: 26
04111-3030A
COTTER PIN
€ 1.50
27
5510040430
ref: 27
55100-14230
TIRE,FRONT
€ 0.00
28
5520028330
ref: 28
55200-16510
TUBE,INNER
€ 32.50
29
5526128330
ref: 29
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
30-1
5531140200
ref: 30-1
55311-40201
RIM,FRONT WHEEL
€ 240.50
30-2
5531140230
ref: 30-2
RIM,FRONT WHEEL
€ 128.00
31-1
5532040201
ref: 31-1
SPOKE SET,FRONT
€ 48.50
31-2
5532040230
ref: 31-2
SPOKE SET,FRONT
€ 31.50
32
6527030001
ref: 32
65270-43D00
STOPPER,BEAD
€ 30.50
33
0832211088
ref: 33
08322-01087
WASHER
€ 2.00
34
0831012088
ref: 34
08310-00087
NUT
€ 2.00
