REAR BRAKE
PE175 1980 (T) USA (E03)

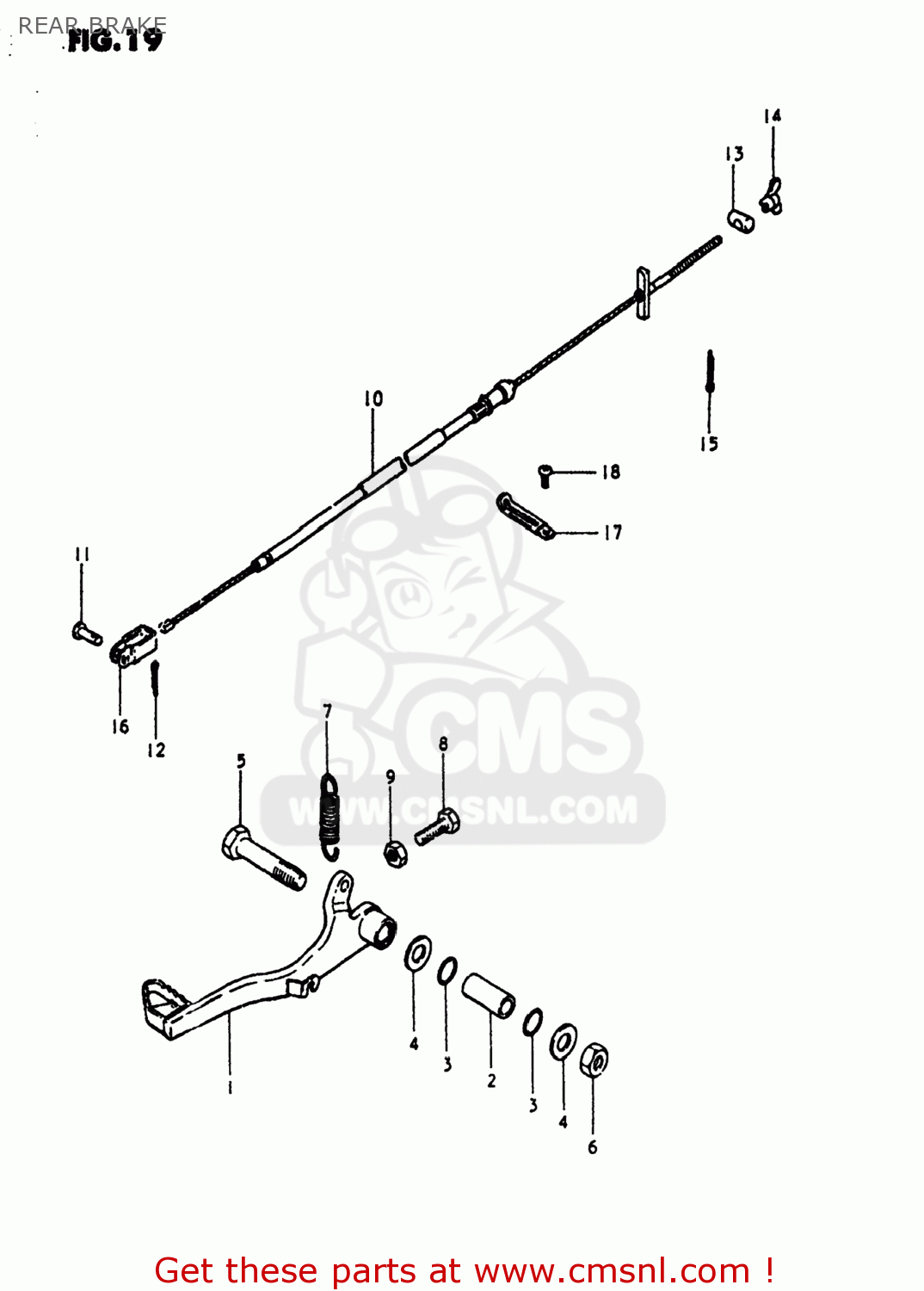

Rear brake diagram PE175 1980 (T) USA (E03)
REAR BRAKE PE175 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311040500
ref: 1
PEDAL,BRAKE
€ 23.00
2
0918008079
ref: 2
SPACER (8X10X22)
€ 9.50
3
0928010002
ref: 3
09280-10012
O-RING (D:1.5 ID:10)
€ 2.00
4
0821108181
ref: 4
WASHER
€ 2.50
5
0910008149
ref: 5
BOLT
€ 1.50
6
0831931088
ref: 6
08319-3108A
NUT
€ 2.50
7
0944311006
ref: 7
09443-11006-XC0
SPRING
€ 6.00
8
0910006009
ref: 8
BOLT(6X23)
€ 1.50
9
0831011068
ref: 9
08310-00067
NUT
€ 2.50
10
5851040500
ref: 10
CABLE,RR BRAKE
€ 37.00
11
0920006004
ref: 11
PIN(L:13)
€ 1.50
12
0411120158
ref: 12
04111-2015A
PIN
€ 1.50
13
0920913003
ref: 13
09209-13018
PIN
€ 3.50
14
0914406005
ref: 14
NUT
€ 2.50
15
0411120158
ref: 15
04111-2015A
PIN
€ 1.50
16
5864541500
ref: 16
HOOK,REAR BRAKE PEDAL
€ 3.50
17
0940406412
ref: 17
09404-06432
CLAMP
€ 2.50
18
0211206068
ref: 18
02112-06067
SCREW,6X6
€ 2.00
