GEAR SHIFTING
PE175 1980 (T) USA (E03)

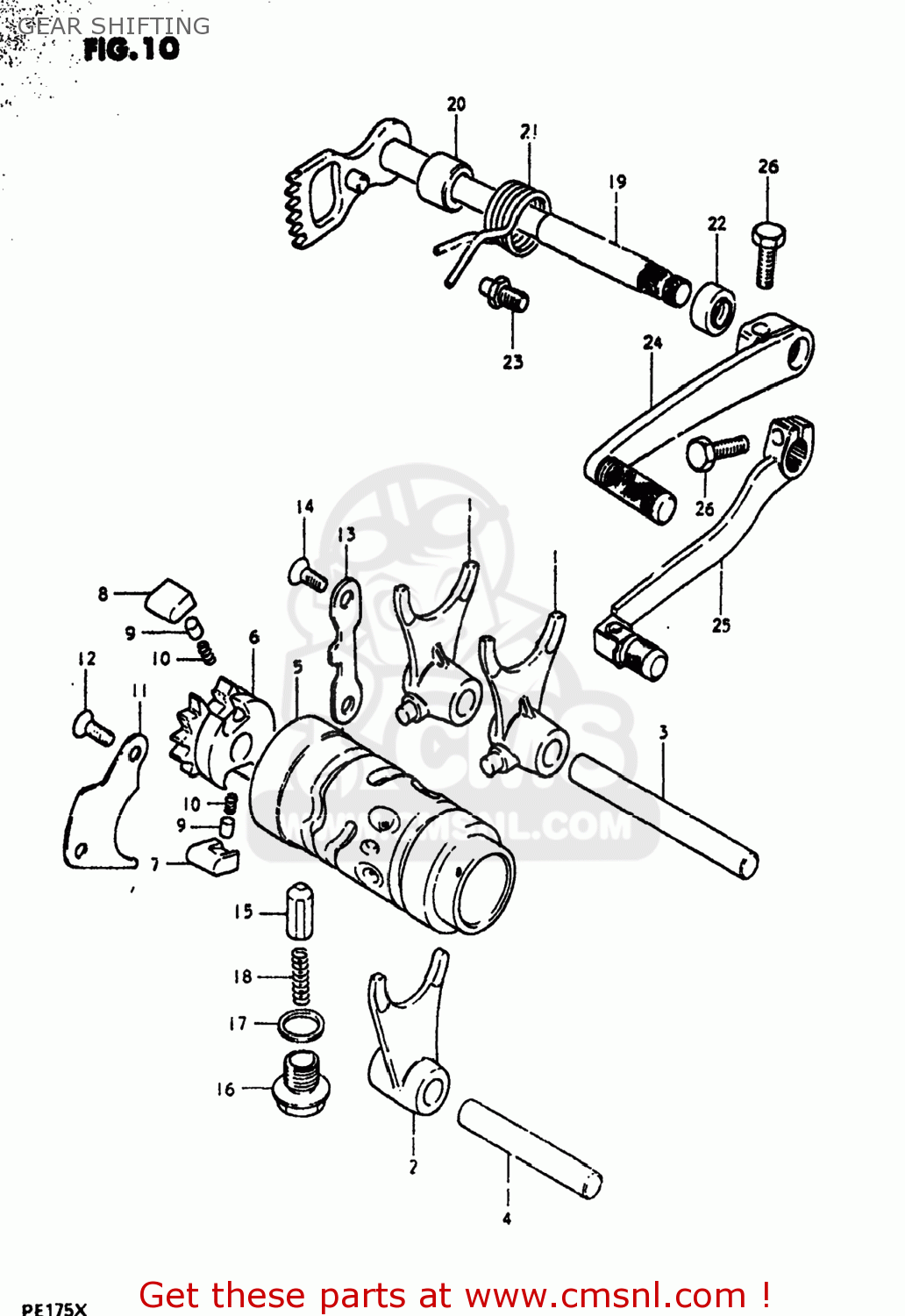

Gear shifting diagram PE175 1980 (T) USA (E03)
GEAR SHIFTING PE175 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521141300
ref: 1
25211-41301
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522141301
ref: 2
25221-41X00
FORK,GEAR SHIFT NO.2
€ 71.50
3
2541116400
ref: 3
25411-48001
SHAFT,GEAR SHIFT FORK
€ 15.00
4
2542140000
ref: 4
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531041300
ref: 5
25310-14100
CAM,GEAR SHIFT
€ 233.00
6
2532211000
ref: 6
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
7
2532311000
ref: 7
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532411000
ref: 8
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533111001
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 2.50
12
0212206128
ref: 12
02122-06127
SCREW
€ 3.00
13
2534140400
ref: 13
25341-40001
GUIDE,GEAR SHIFT CAM
€ 6.50
14
0212206128
ref: 14
02122-06127
SCREW
€ 3.00
15
2535111000
ref: 15
25351-11010
STOPPER,GEAR SHIFTING
€ 6.50
16
2535211000
ref: 16
25352-11010
BOLT,GEAR SHAFT CAM STOPPER
€ 4.50
17
0916814004
ref: 17
GASKET(14X19.2X2) (NAS)
€ 2.50
18
0944005007
ref: 18
SPRING
€ 12.00
19
2551040500
ref: 19
25510-405V0
SHAFT,GEAR SHIFT
€ 79.50
20
0918012083
ref: 20
SPACER(12X20X15.3)
€ 2.50
21
0944426013
ref: 21
SPRING
€ 3.50
22
0928512002
ref: 22
09285-12006
OIL SEAL
€ 7.00
23
2567101000
ref: 23
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
24
2561040302
ref: 24
25600-40304
LEVER ASSEMBLY,GEAR SHIFTING
€ 55.00
25
2560040310
ref: 25
25600-40304
LEVER ASSEMBLY,GEAR SHIFTING
€ 215.00
26
0910006091
ref: 26
01500-06207
BOLT
€ 2.00
