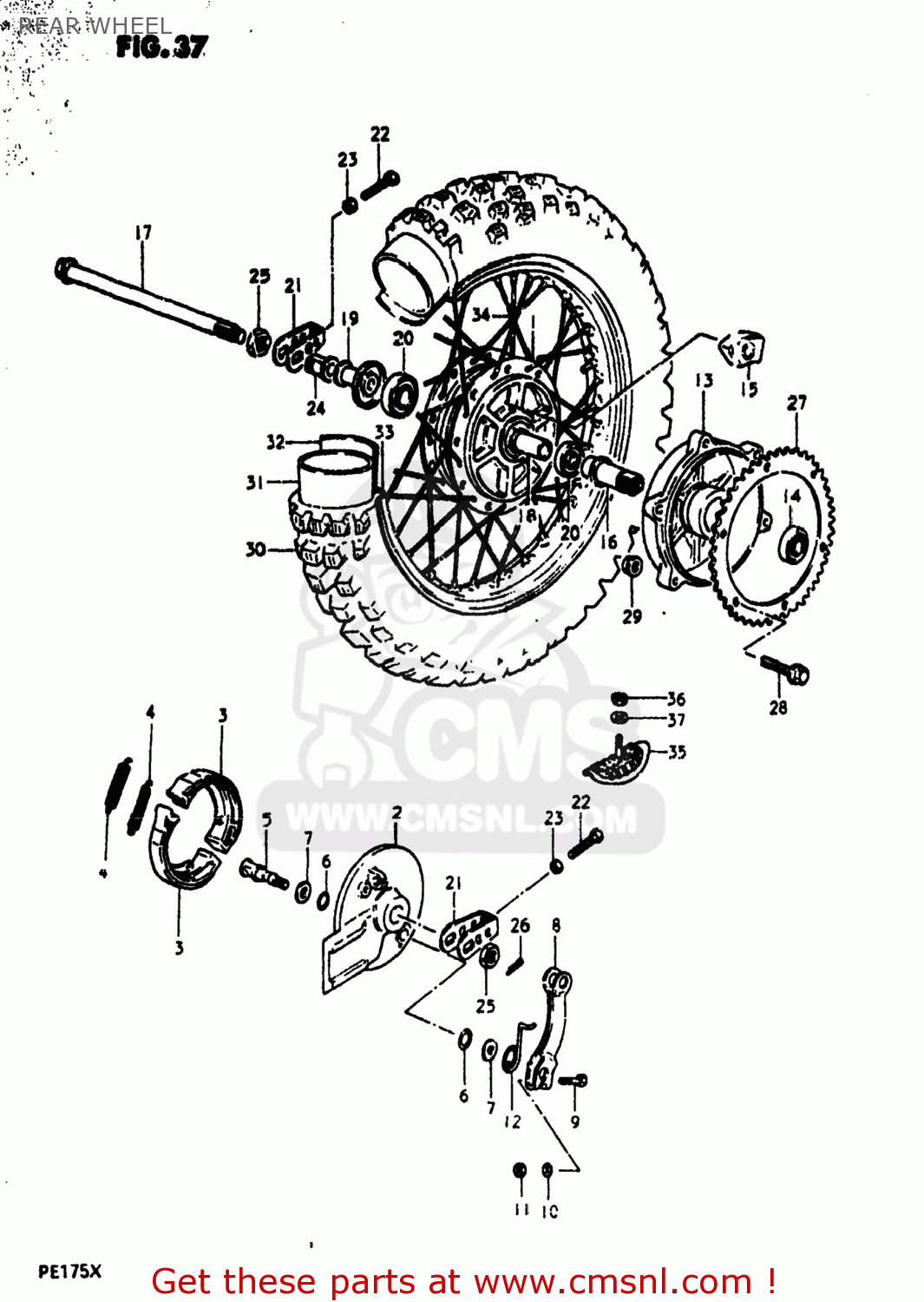

REAR WHEEL

ref

part #

description

quantity

1

6411040500
ref: 1

HUB,REAR

€ 66.00

2

6421040500
ref: 2

PANEL,REAR HUB

€ 70.50

3

5441040500
ref: 3
54400-40840

SHOE,BRAKE

€ 58.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

6444140500
ref: 5
64441-40501

CAM,REAR BRAKE

€ 11.50

6

0928014003
ref: 6
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

7

0916014001
ref: 7
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

8-1

6445140600
ref: 8-1
64451-40601

LEVER,REAR BRAKE CAM

€ 17.50

8-2

6445140601
ref: 8-2

LEVER,REAR BRAKE CAM

€ 17.50

9

0910006050
ref: 9
09100-06150

BOLT

€ 1.50

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0831011068
ref: 11
08310-00067

NUT

€ 2.50

12

0944831018
ref: 12

SPRING

€ 4.50

13

6430940500
ref: 13

DRUM ASSEMBLY,REAR BRAKE

€ 204.50

14

0926222015
ref: 14
09262-22027

BALL BEARING 22X50X14

€ 44.00

15

6465040600
ref: 15

ABSORBER,RR HUB SHOCK

€ 16.00

16

6476140500
ref: 16

SHAFT,REAR BRAKE DRUM

€ 30.50

17

6471140500
ref: 17

AXLE,REAR

€ 28.50

18

6473040500
ref: 18

SPACER,REAR HUB BEARING

€ 11.50

19

6474040500
ref: 19

SPACER,REAR AXLE,RIGHT

€ 14.00

20

0812363027
ref: 20

BEARING

€ 19.00

21

6141040200
ref: 21
61410-40201

ADJUSTER,CHAIN

€ 19.00

22

0910408006
ref: 22
09104-08034

BOLT

€ 3.00

23

0831012088
ref: 23
08310-00087

NUT

€ 2.00

24

6479140200
ref: 24

SPACER,CHAIN ADJUSTER

€ 13.50

25

0914022003
ref: 25

NUT

€ 10.00

26

0411130208
ref: 26
04111-3020A

PIN 30X20

€ 1.50

27-1

6451140510
ref: 27-1

SPROCKET,REAR (NT:48)(AL)

€ 116.50

27-2

6451140500
ref: 27-2

SPROCKET,REAR (NT:46)(AL)

€ 102.00

27-3

6451140520
ref: 27-3

SPROCKET,REAR (NT:50)(AL)

€ 186.50

28

0910308048
ref: 28

BOLT(8X30)

€ 3.50

29

0831931088
ref: 29
08319-3108A

NUT

€ 2.50

30

6510040530
ref: 30

TIRE

€ 69.50

31-1

6520015030
ref: 31-1
65200-49015

TUBE ASSEMBLY,WHEEL,INNER

€ 39.00

31-2

6520045030
ref: 31-2
65200-49015

TUBE ASSEMBLY,WHEEL,INNER

€ 39.00

32

6526133030
ref: 32

PROTECTOR,INNER TUBE

€ 5.50

33-1

6531140200
ref: 33-1

RIM,REAR WHEEL

€ 119.00

33-2

6531140500
ref: 33-2

RIM,REAR WHEEL

€ 81.50

34-1

6532040500
ref: 34-1

SPOKE SET,REAR WHEEL

€ 0.00

34-2

6532040510
ref: 34-2

SPOKE SET,REAR

€ 61.50

35

6527030001
ref: 35
65270-43D00

STOPPER,BEAD

€ 30.50

36

0831012088
ref: 36
08310-00087

NUT

€ 2.00

37

0832211088
ref: 37
08322-01087

WASHER

€ 2.00

all assemblies
