STAND - FOOTREST
PE175 1980 (T) USA (E03)

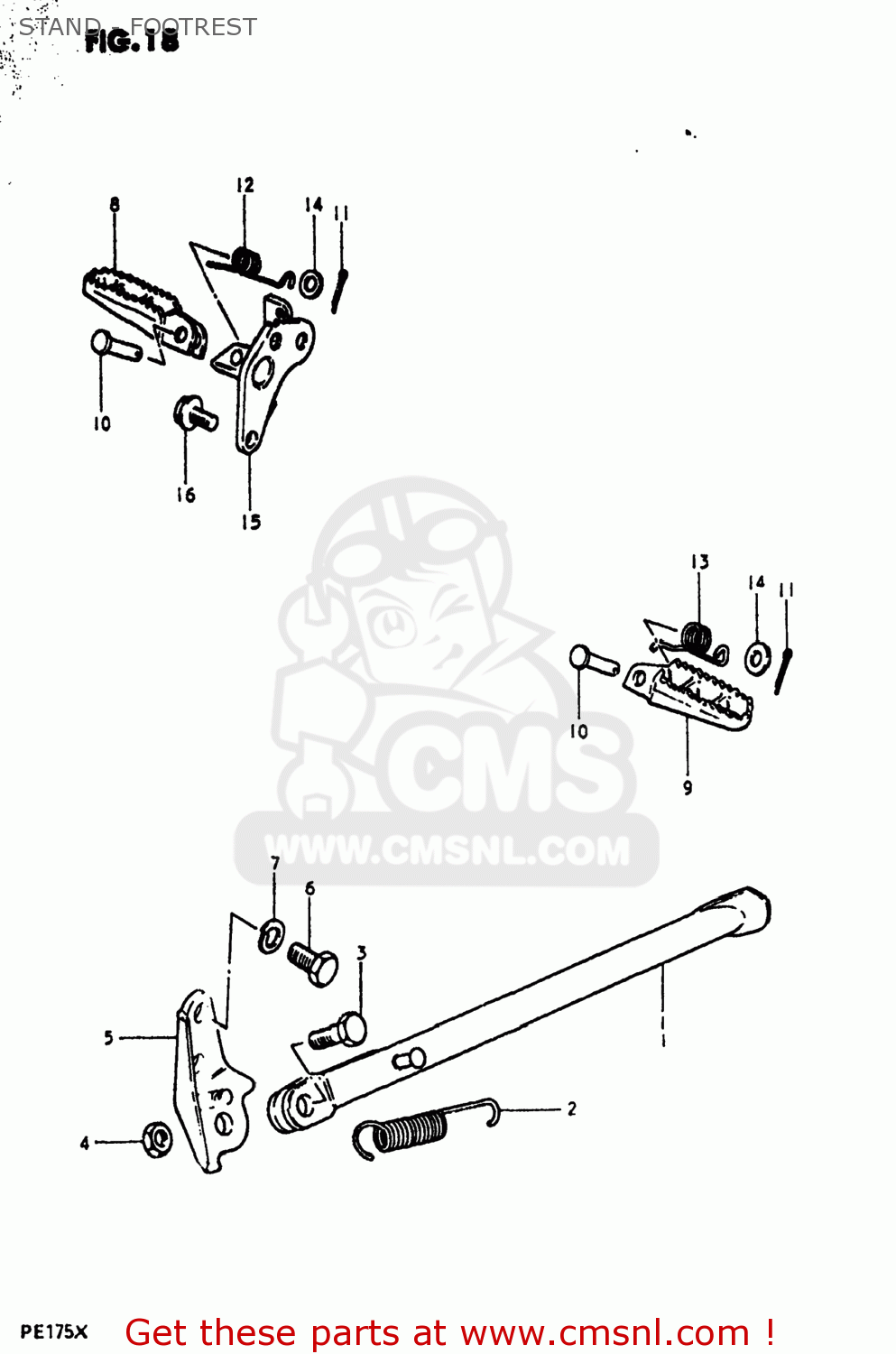

Stand - footrest diagram PE175 1980 (T) USA (E03)
STAND - FOOTREST PE175 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231040500
ref: 1
42310-40600
STAND,SIDE
€ 83.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4233040400
ref: 5
BRACKET,PROP STAND
€ 65.00
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121108
ref: 7
08321-01107
LOCK WASHER
€ 2.00
8
4355140400
ref: 8
43551-37202-019
RUBBER,FRONT FOOTREST
€ 31.00
9
4356140400
ref: 9
43561-40401-019
FOOTREST
€ 24.50
10
0920008035
ref: 10
09200-08064
PIN
€ 6.50
11
0411130208
ref: 11
04111-3020A
PIN 30X20
€ 1.50
12
0944814014
ref: 12
09448-14014-XC0
SPRING
€ 3.00
13
0944814015
ref: 13
SPRING
€ 3.00
14
0832221088
ref: 14
08322-01087
WASHER
€ 2.00
15
4351040500
ref: 15
HOLDER,FRONT FOOTREST,RIGHT
€ 21.00
16
0910310100
ref: 16
BOLT(10X20)
€ 6.00
