CRANKSHAFT

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

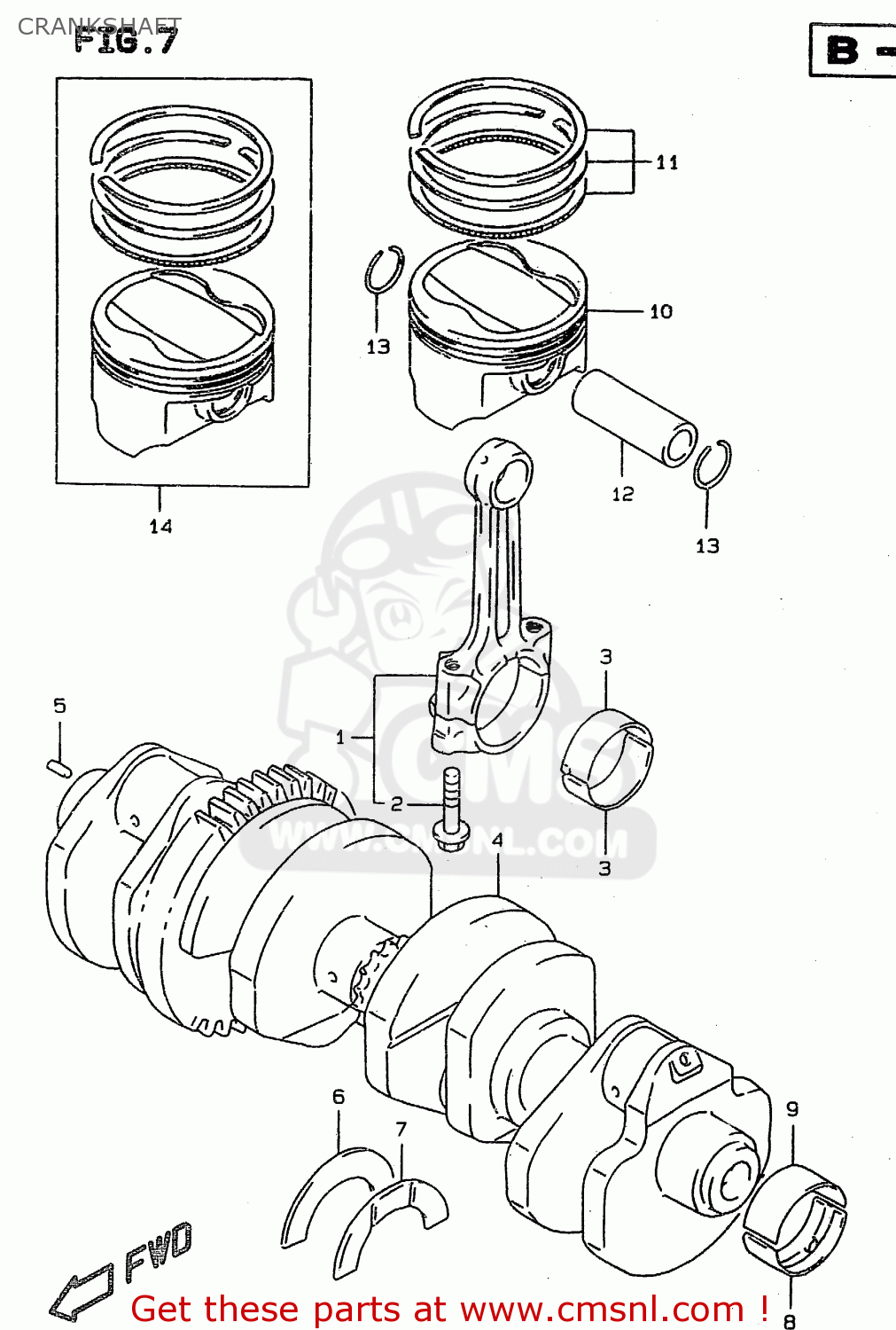

Crankshaft diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

CRANKSHAFT RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
CRANKSHAFT RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
CRANKSHAFT RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
prices are in EUR
ref
part #
description
quantity
1
1216031E02
ref: 1
CONNECTING ROD ASSY
1216031E02
€ 146.00
2
1216317C50
ref: 2
BOLT,CONNCTING ROD
1216317C50
€ 16.50
3-1
1216431E000A0
ref: 3-1
MODEL R/S
BEARING,CRANK PIN
1216431E000A0
€ 19.00
3-2
1216431E000B0
ref: 3-2
MODEL R/S
BEARING,CRANK PIN
1216431E000B0
€ 19.00
3-3
1216431E000C0
ref: 3-3
MODEL R/S
BEARING,CRANK PIN
1216431E000C0
€ 19.00
3-4
1216431E000D0
ref: 3-4
MODEL R/S
BEARING,CRANK PIN
1216431E000D0
€ 19.00
3-5
1216431E500A0
ref: 3-5
MODEL T/V/W
BEARING,CRANK PIN
€ 19.00
3-6
1216431E500B0
ref: 3-6
MODEL T/V/W
BEARING,CRANK PIN
€ 14.00
3-7
1216431E500C0
ref: 3-7
MODEL T/V/W
BEARING,CRANK PIN
1216431E500C0
€ 16.50
3-8
1216431E500D0
ref: 3-8
MODEL T/V/W
BEARING,CRANK PIN
1216431E500D0
€ 17.50
4
1200031810
ref: 4
CRANKSHAFT SET
1200031810
€ 1,310.50
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
1222817E000D0
ref: 6
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-1
1222817E000A0
ref: 7-1
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
7-2
1222817E000B0
ref: 7-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
7-3
1222817E000C0
ref: 7-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
7-4
1222817E000D0
ref: 7-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-5
1222817E000E0
ref: 7-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
7-6
1222817E000F0
ref: 7-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
8-1
1222931E000A0
ref: 8-1
LOWER MODEL R/S
BEARING,CRANKSHAFT LWR
1222931E000A0
€ 15.50
8-2
1222931E000B0
ref: 8-2
MODEL R/S
BEARING,CRANKSHAFT LWR
1222931E000B0
€ 16.50
8-3
1222931E000C0
ref: 8-3
MODEL R/S
BEARING,CRANKSHAFT LWR
1222931E000C0
€ 16.50
8-4
1222931E000D0
ref: 8-4
MODEL R/S
BEARING,CRANKSHAFT LWR
1222931E000D0
€ 15.50
8-5
1222931E500A0
ref: 8-5
MODEL T/V/W
BEARING,CRANKSHAFT LWR(GREEN)
1222931E500A0
€ 15.50
8-6
1222931E500B0
ref: 8-6
MODEL T/V/W
BEARING,CRANKSHAFT LWR(BLACK)
1222931E500B0
€ 20.50
8-7
1222931E500C0
ref: 8-7
MODEL T/V/W
BEARING,CRANKSHAFT LWR(BROWN)
1222931E500C0
€ 17.00
8-8
1222931E500D0
ref: 8-8
MODEL T/V/W
BEARING,CRANKSHAFT LWR(YELLOW)
1222931E500D0
€ 14.50
9-1
1222931E100A0
ref: 9-1
UPPER MODEL R/S
BEARING,CRANKSHAFT UPR
1222931E100A0
€ 14.00
9-2
1222931E100B0
ref: 9-2
MODEL R/S
BEARING,CRANKSHAFT UPR
1222931E100B0
€ 16.50
9-3
1222931E100C0
ref: 9-3
MODEL R/S
BEARING,CRANKSHAFT UPR
1222931E100C0
€ 16.50
9-4
1222931E100D0
ref: 9-4
MODEL R/S
BEARING,CRANKSHAFT UPR
1222931E100D0
€ 15.00
9-5
1222931E600A0
ref: 9-5
MODEL T/V/W
BEARING,CRANKSHAFT UPR
€ 12.50
9-6
1222931E600B0
ref: 9-6
MODEL T/V/W
BEARING,CRANKSHAFT UPR
1222931E600B0
€ 13.00
9-7
1222931E600C0
ref: 9-7
MODEL T/V/W
BEARING,CRANKSHAFT UPR
1222931E600C0
€ 15.50
9-8
1222931E600D0
ref: 9-8
MODEL T/V/W
BEARING,CRANKSHAFT UPR
€ 13.00
10
1211131E020F0
ref: 10
PISTON (73.00MM)
€ 61.50
11
1214031E60
ref: 11
RING SET,PISTON
€ 79.00
12
1215117C00
ref: 12
PIN,PISTON
1215117C00
€ 15.50
13
0938119001
ref: 13
RING,SNAP
0938119001
€ 2.50
14-1
1210031E00050
ref: 14-1
OPT
PISTON SET(OS:0.5)
1210031E00050
€ 108.50
14-2
1210031E00100
ref: 14-2
OPT
PISTON SET (OS:1.0)
€ 84.00
