TURNSIGNAL LAMP (MODEL R/S)

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

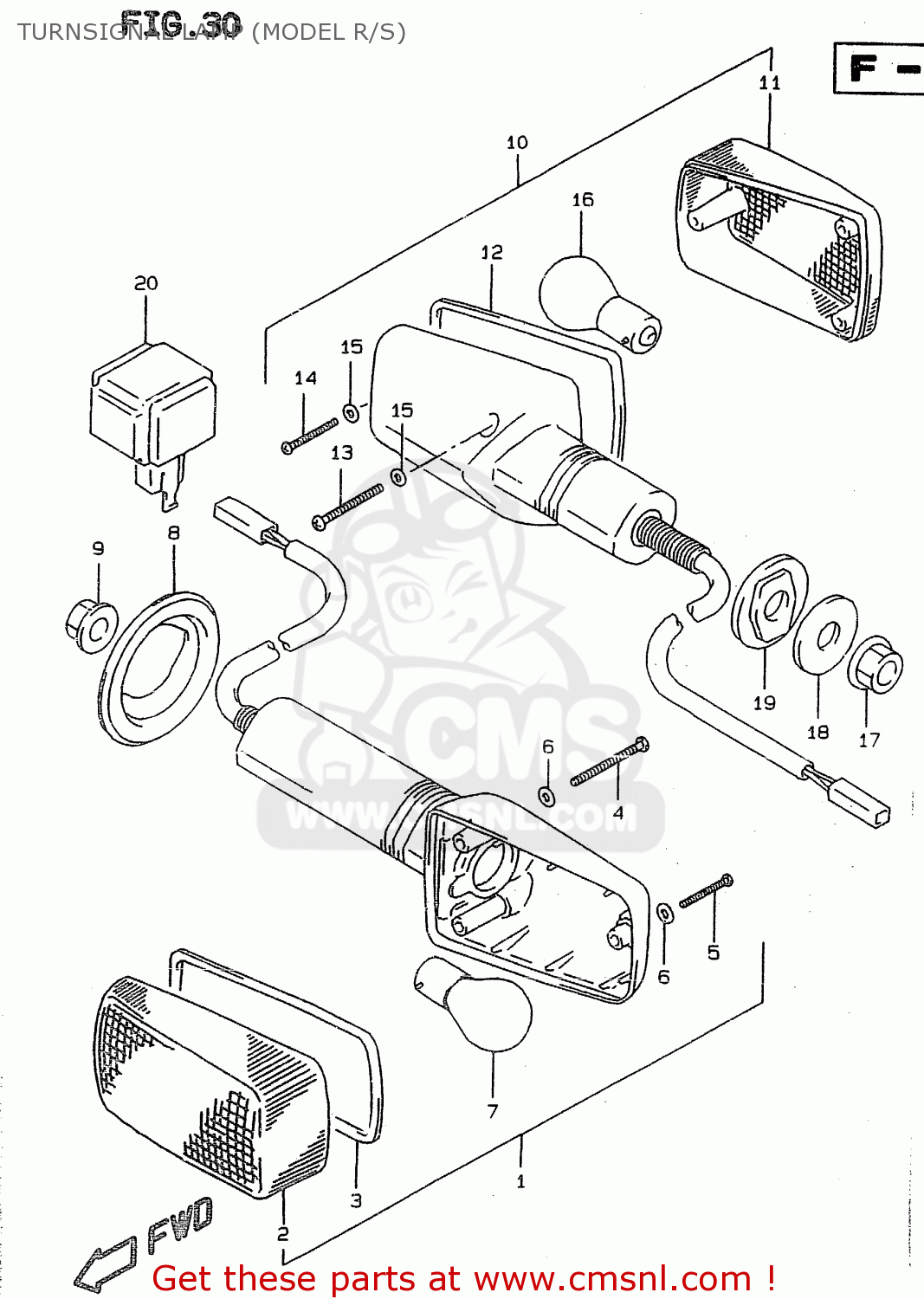

Turnsignal lamp (model r/s) diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

TURNSIGNAL LAMP (MODEL R/S) RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

TURNSIGNAL LAMP (MODEL R/S) RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3560129E10
ref: 1-1
->35601-29E30

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 57.50

1-2

3560129EA0
ref: 1-2
E18, E22, E39 ->3560

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 78.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

3567427A01
ref: 8

GROMMET

€ 13.50

9

0831610103
ref: 9

NUT

€ 2.00

10

3560321EC0
ref: 10

LAMP ASSY,RR TURNSIGNAL

€ 93.50

11

3565217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17-1

0831610103
ref: 17-1
MODEL R

NUT

€ 2.00

17-2

0831000103
ref: 17-2
MODEL S

NUT

€ 2.00

18

0916010501
ref: 18

WASHER(10.5X30X2.3)

€ 2.50

19

3569517C00
ref: 19

SPACER,RR TURNSIGNAL

€ 3.00

20

3861045D01
ref: 20

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50
