SECOND AIR (E18, E39)

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

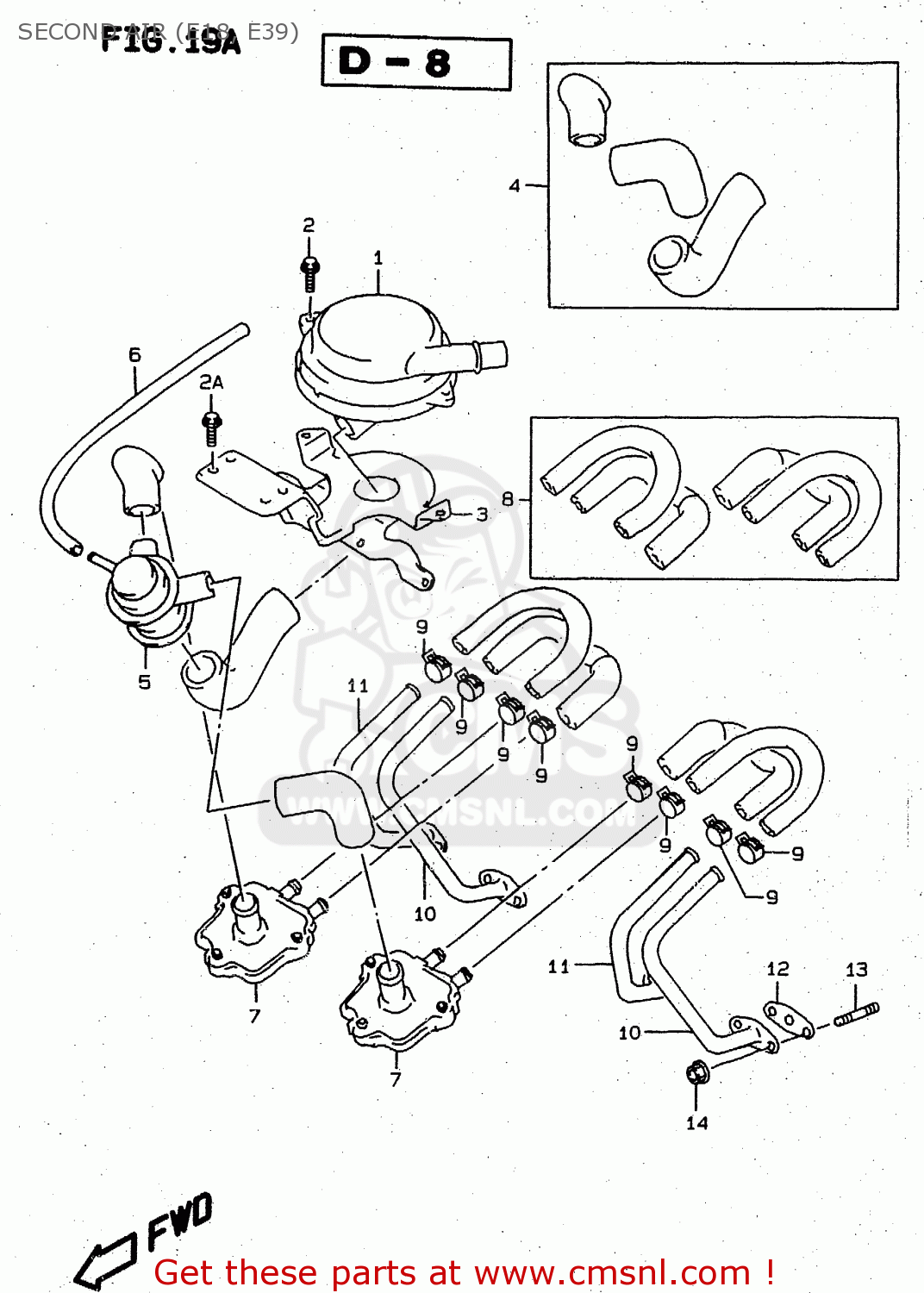

Second air (e18, e39) diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

SECOND AIR (E18, E39) RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

SECOND AIR (E18, E39) RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

prices are in EUR

ref

part #

description

quantity

1

1870017C03
ref: 1

CLEANER ASSEMBLY,SECOND AIR

€ 38.00

2

0155006123
ref: 2

BOLT

€ 2.50

2A

0154706123
ref: 2A

BOLT

€ 2.00

3

1875021E00
ref: 3

BRACKET COMP,SECOND AIR

€ 0.00

4

1842017810
ref: 4

HOSE SET,2ND AIR NO.2

€ 0.00

5

1851046E00
ref: 5

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

6

0935545855600
ref: 6

HOSE(4.5X8.5X600)

€ 14.00

7

1845048B00
ref: 7

VALVE ASSY,2ND AIR REED

€ 125.50

8

1841021810
ref: 8

HOSE SET,2ND AIR NO.1

€ 0.00

9-1

0940113413
ref: 9-1
MODEL R/S/T

CLIP

€ 2.50

9-2

0940113417
ref: 9-2
MODEL W

CLIP

€ 2.50

10

1841021E00
ref: 10

PIPE COMP,SECOND AIR NO.1

€ 0.00

11

1842021E00
ref: 11

PIPE COMP,SECOND AIR NO.2

€ 0.00

12

1844145C00
ref: 12

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

13

0142106163
ref: 13

STUD BOLT

€ 2.00

14

0831610063
ref: 14

NUT

€ 2.50
