FRONT FENDER

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

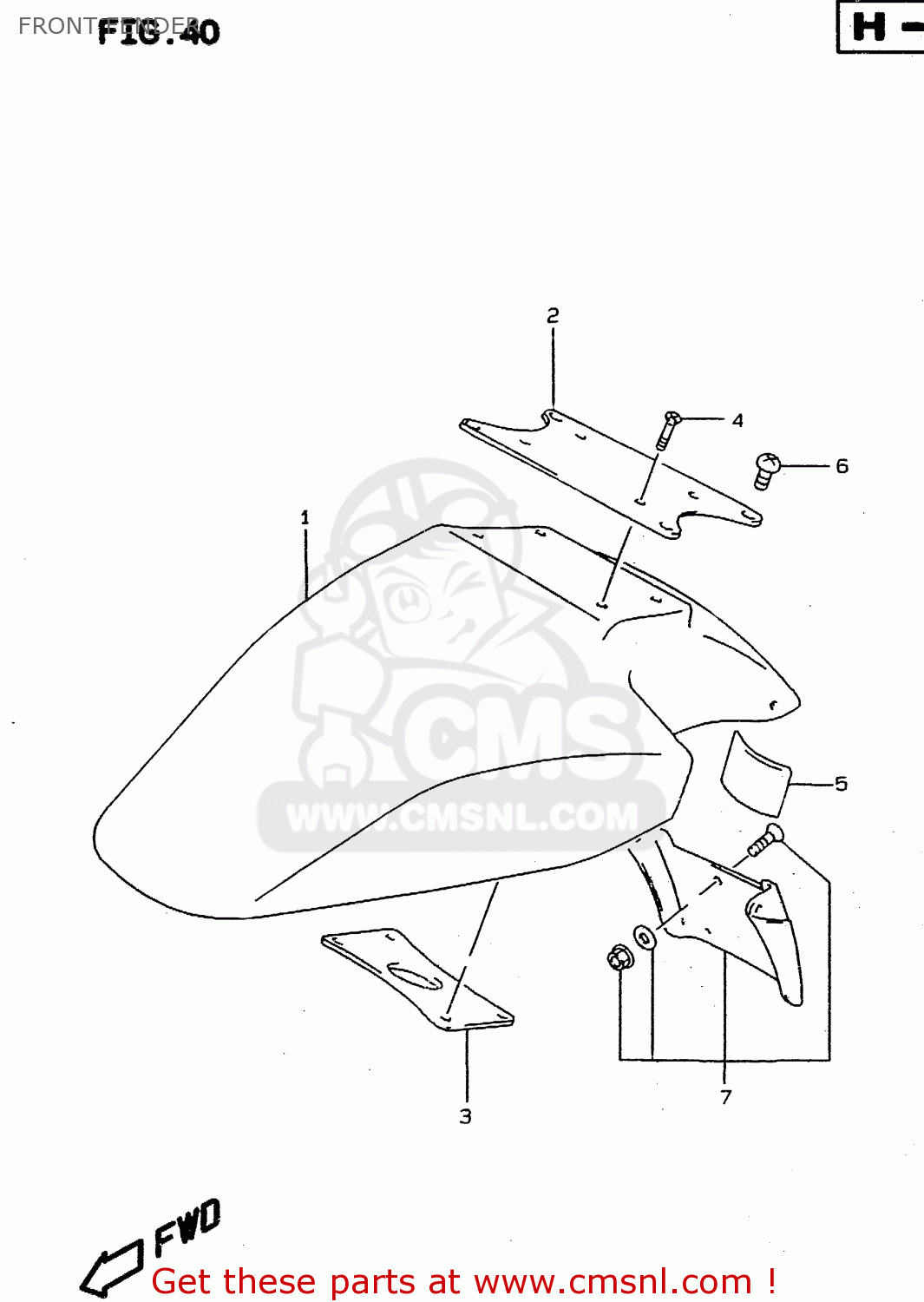

Front fender diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

FRONT FENDER RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

FRONT FENDER RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

prices are in EUR

ref

part #

description

quantity

1-1

5311117C2119A
ref: 1-1
MODEL R/S

FENDER,FR

€ 101.50

1-2

5311117C2133J
ref: 1-2
MODEL R MODEL T FOR

FENDER,FR

€ 245.00

1-3

5311117C211HU
ref: 1-3
MODEL S

FENDER,FR

€ 114.50

1-4

5311117C211UH
ref: 1-4
MODEL S

FENDER,FR

€ 140.00

1-5

5311117C2117U
ref: 1-5
MODEL T FOR F3C

FENDER,FR

€ 148.00

1-6

5311117C1119A
ref: 1-6
OPT

FENDER,FRONT

€ 124.50

1-7

5311117C1133J
ref: 1-7
OPT

FENDER,FR

€ 245.00

1-8

5311117C111HU
ref: 1-8
OPT

FENDER,FRONT

€ 124.50

1-9

5311117C111UH
ref: 1-9
OPT

FENDER,FRONT

€ 124.50

1-10

5311117C1117U
ref: 1-10
OPT

FENDER,FRONT

€ 124.50

1-11

5311117C210FP
ref: 1-11
RF900RS2 FOR D8A

FENDER,FRONT

€ 101.50

1-12

5311117C110FP
ref: 1-12
OPT RF900RS2 FOR D8A

FENDER,FRONT

€ 124.50

1-13

5311117C21019
ref: 1-13
MODEL V

FENDER,FR

€ 169.50

1-14

5311117C11019
ref: 1-14
OPT, MODEL V

FENDER,FRONT

€ 0.00

1-15

5311117C2122U
ref: 1-15
MODEL W

FENDER,FRONT

€ 101.50

1-16

5311117C1122U
ref: 1-16
OPT, MODEL W

FENDER,FR

€ 169.50

1-17

5311117C1133J
ref: 1-17
OPT, MODEL W

FENDER,FR

€ 245.00

2

5311431E00
ref: 2

BRACE,FR FENDER

€ 40.50

3

5321017C00
ref: 3

BRACE,FR FENDER INNER

€ 9.00

4

0913905032
ref: 4

SCREW(5X18)

€ 2.50

5

5314517C11
ref: 5

CUSHION,FR FENDER

€ 5.00

6

0913908007
ref: 6

SCREW(8X16)

€ 4.50

7

5330017810
ref: 7
OPT

MUDGUARD SET,FR FENDER

€ 22.00
