REAR CALIPER (MODEL R/S)

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

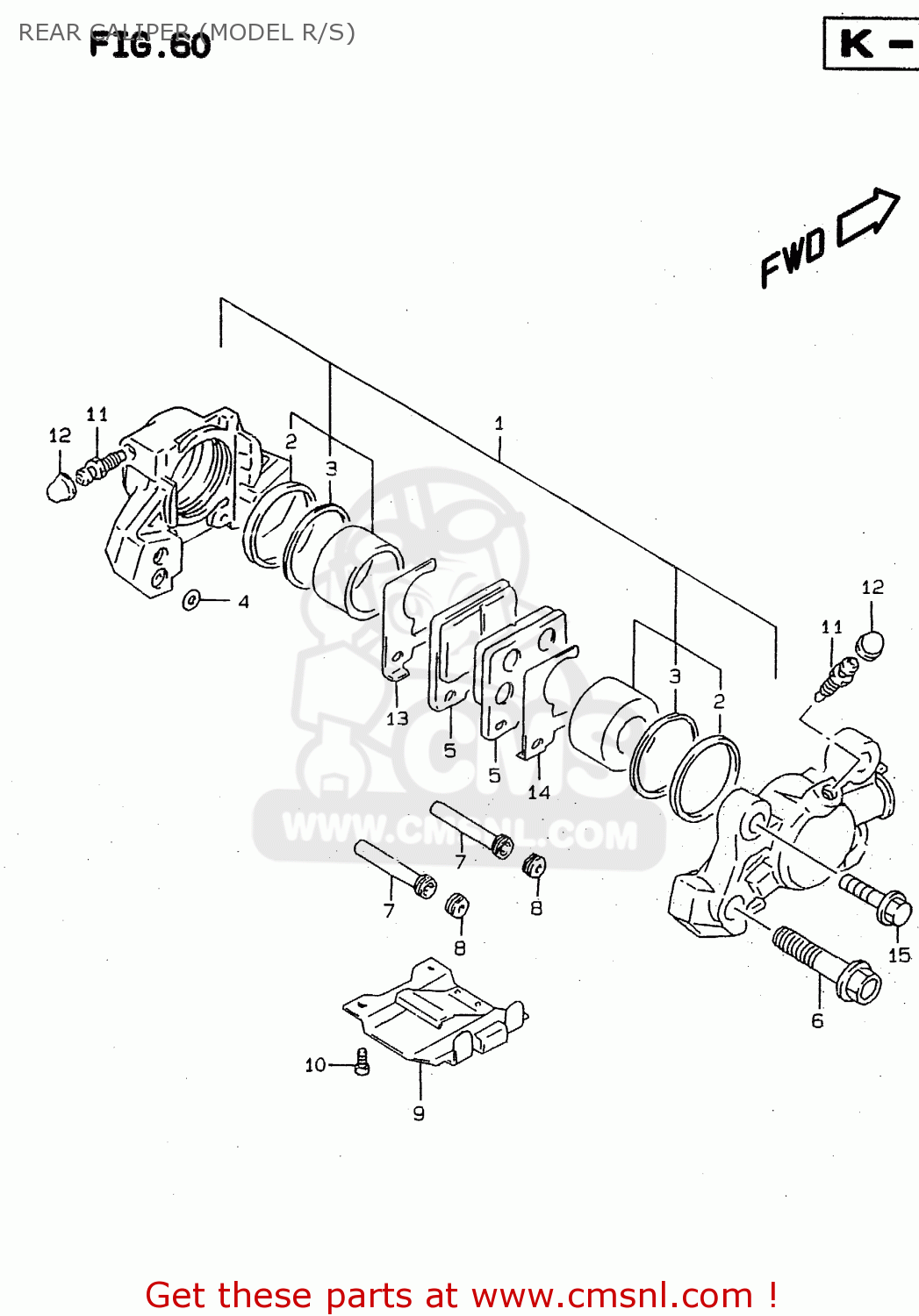

Rear caliper (model r/s) diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

prices are in EUR

ref

part #

description

quantity

6910031E00
ref: 0

CALIPER ASSEMBLY,REAR

€ 447.00

6910032810
ref: 1

PISTON SET

€ 122.50

5910718410
ref: 2

SEAL,PISTON

€ 17.00

6910832B00
ref: 3

SEAL,WIPER

€ 26.50

6910734200
ref: 4

SEAL,JOINT

€ 12.00

6913031E00
ref: 5
->69100-31830

PAD,BRAKE

€ 43.00

5914517C00
ref: 6

BOLT

€ 7.00

6914131E00
ref: 7

PIN,PAD

€ 29.50

6914631E00
ref: 8

PLUG,PAD PIN

€ 14.00

6915131E00
ref: 9

COVER

€ 22.00

5915322D00
ref: 10

SCREW

€ 4.50

5912118410
ref: 11

BLEEDER

€ 8.00

5912218410
ref: 12

CAP,BREATHER

€ 6.00

6913331E00
ref: 13

SHIM,PAD,INNER

€ 10.00

6913431E00
ref: 14

SHIM,PAD,OUTER

€ 10.50

0155008303
ref: 15

BOLT

€ 3.00
