REAR FENDER (MODEL T/V/W)

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

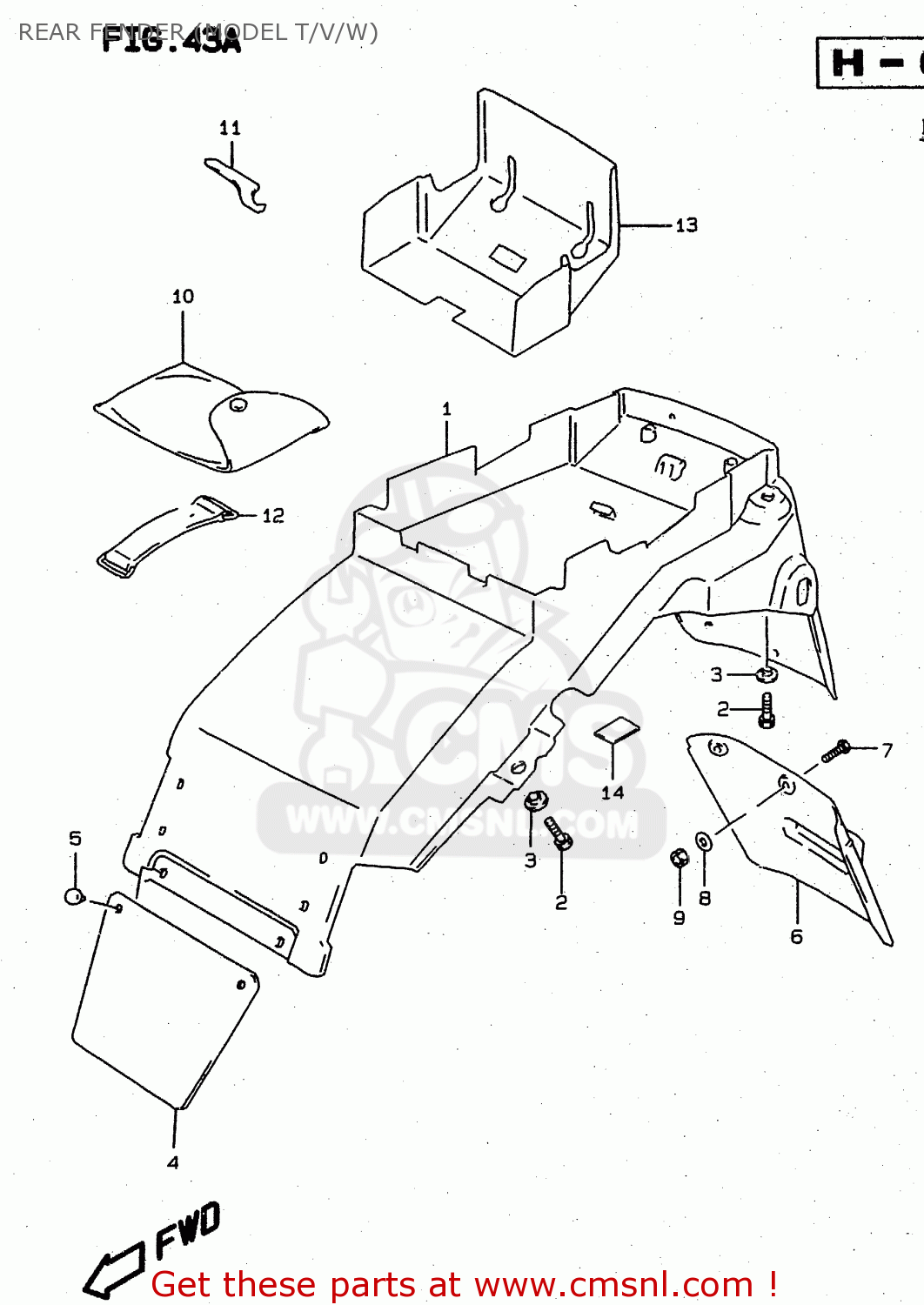

Rear fender (model t/v/w) diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

REAR FENDER (MODEL T/V/W) RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

REAR FENDER (MODEL T/V/W) RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

prices are in EUR

ref

part #

description

quantity

1-1

6311121E01
ref: 1-1

FENDER,RR

€ 93.00

1-2

6311121E21
ref: 1-2
E22

FENDER,RR

€ 89.50

1-3

6311121E11
ref: 1-3
E18, E39

FENDER,REAR

€ 89.50

2

0155006203
ref: 2

BOLT

€ 2.50

3

0916906028
ref: 3

WASHER

€ 2.00

4

6341121E00
ref: 4

GUARD,RR FENDER MUD

€ 19.00

5

6341510D00
ref: 5

CLIP,MUDGUARD

€ 4.00

6-1

6331121E20
ref: 6-1
E22

EXTENSION,RR FENDER

€ 0.00

6-2

6331121E00
ref: 6-2
E18, E39

EXTENSION,REAR FENDER

€ 0.00

7

0214206163
ref: 7
E18, E22, E39

SCREW

€ 2.50

8

0916006132
ref: 8
E18, E22, E39

WASHER(6.5X18X1.6)

€ 2.00

9

0831921068
ref: 9
E18, E22, E39

NUT 6MM

€ 2.00

10

0980021008
ref: 10

TOOL ASSY

€ 74.50

11

0982200005
ref: 11

CLAMP

€ 22.00

12

0946200008
ref: 12

BAND

€ 4.50

13

6325131E01
ref: 13

GUARD,REAR FENDER

€ 41.00

14

6311506C00
ref: 14

TAPE,RR FENDER

€ 7.00
