HANDLE SWITCH

RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

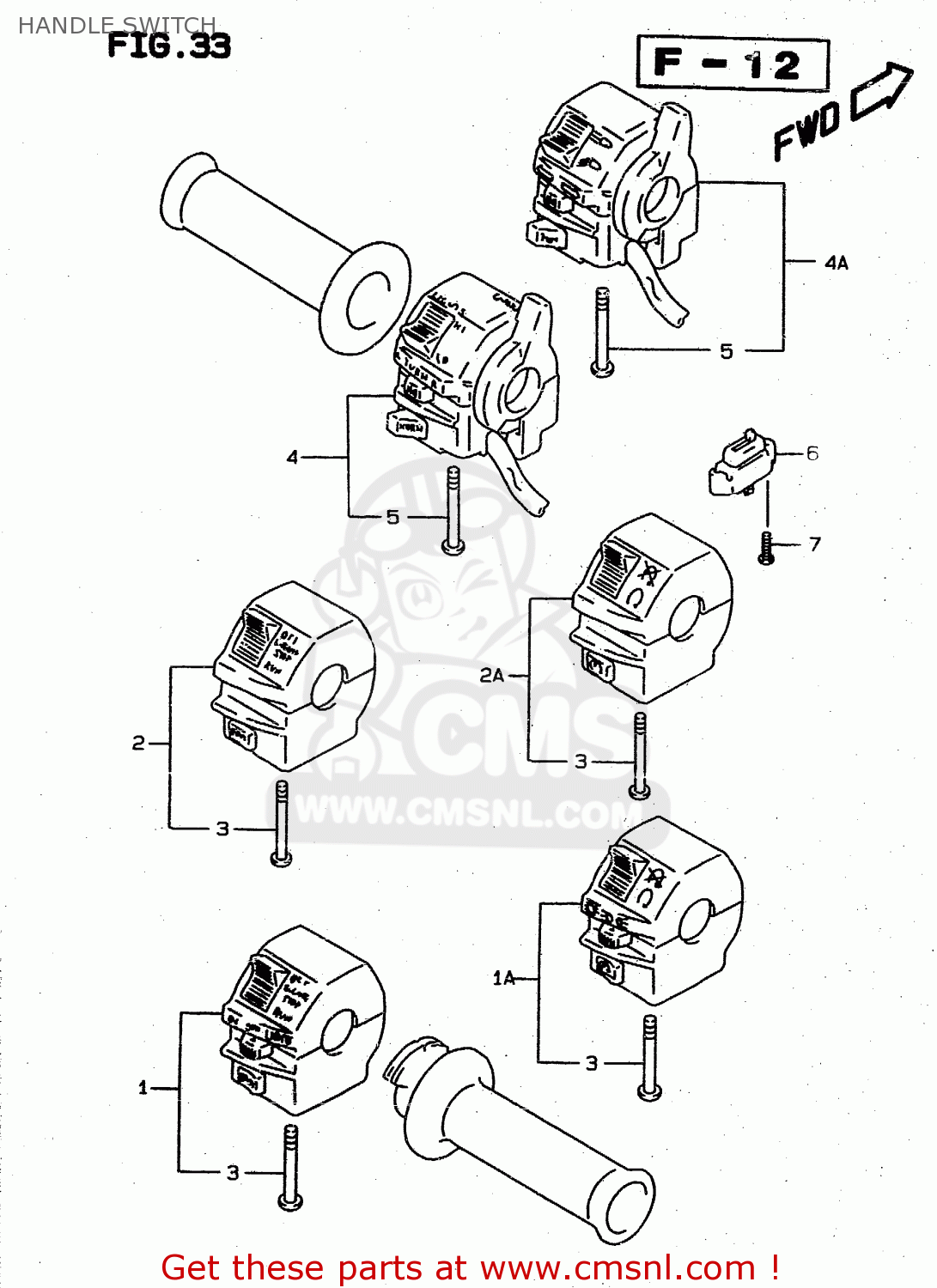

Handle switch diagram RF900R 1996 (T) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3720017E13
ref: 1-1
MODEL R/S/T

SWITCH,HANDLE,

€ 121.00

1-2

3720017E14
ref: 1-2
MODEL V

SWITCH ASSY,RH

€ 121.00

3720026E10
ref: 1A
MODEL W

SWITCH ASSY,HANDLE,R

€ 121.00

2-1

3720017E31
ref: 2-1
MODEL R/S E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

2-2

3720017E40
ref: 2-2
MODEL T E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

2-3

3720017E41
ref: 2-3
MODEL V E24

SWITCH ASSEMBLY,RIGHT

€ 108.00

3720026E30
ref: 2A
MODEL W E24

SWITCH ASSY,HANDLE,R

€ 108.00

0211205455
ref: 3

SCREW, 5X45

€ 4.00

3740017E11
ref: 4
MODEL R/S/T/V

SWITCH,HANDLE,

€ 157.00

3740017E20
ref: 4A
MODEL W

SWITCH ASSY,HANDLE,L

€ 157.00

0211205455
ref: 5

SCREW, 5X45

€ 4.00

3756038A00
ref: 6

SWITCH ASSY,CLUTCH

€ 20.00

3756426E00
ref: 7

SCREW

€ 3.00
