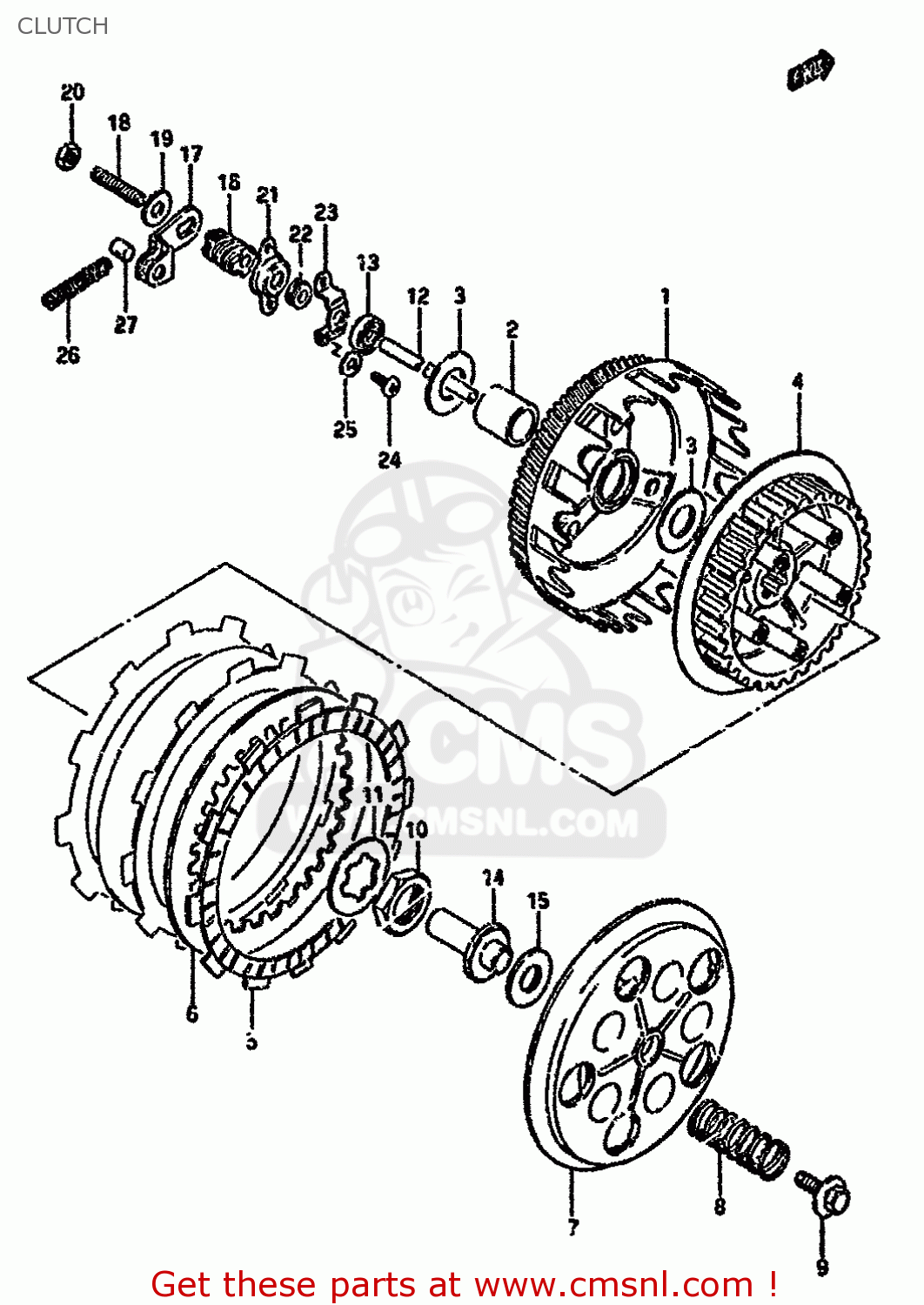

CLUTCH

ref

part #

description

quantity

1

2120013702
ref: 1
NT:17/74,-21200-1370

GEAR ASSY,PRIMARY DRIVEN

€ 219.50

2

0918017049
ref: 2

SPACER(17X22X28.5)

€ 20.50

3

0821117282
ref: 3

WASHER

€ 3.00

4

2141146901
ref: 4

HUB,CLUTCH SLEEVE

€ 55.00

5

2144113A01
ref: 5
-21441-13A00

PLATE,CLUTCH DRIVE(T:3.0) (NAS)

€ 8.50

6

2145119A00
ref: 6
-21451-28000

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

7

2146202B40
ref: 7
-21462-46901

DISC,CLUTCH PRESSURE

€ 21.00

8

0944015008
ref: 8

SPRING

€ 2.00

9

0911605003
ref: 9

BOLT 5X16

€ 2.50

10

0914016014
ref: 10

NUT

€ 4.50

11

0916717002
ref: 11

WASHER,LOCK

€ 2.00

12

2311101A00
ref: 12

ROD,CLUTCH PUSH

€ 12.50

13

0928505004
ref: 13

SEAL,OIL(5.5X16X8)

€ 12.00

14

2312139101
ref: 14

PIECE,CLUTCH PUSH

€ 14.00

15

0926310002
ref: 15

BEARING(10X22X2.8)

€ 8.50

16

2321136200
ref: 16

SCREW,CLUTCH RELEASE

€ 20.50

17

2321246A00
ref: 17

ARM,CLUTCH RELEASE

€ 13.50

18

0913406010
ref: 18

SCREW(6X25)

€ 3.00

19

0916006066
ref: 19
-09160-06020

WASHER(6.5X20X1.6)

€ 2.00

20

0831000067
ref: 20

NUT

€ 2.50

21

2324136201
ref: 21

COVER,CLUTCH RELEASE SCREW

€ 4.50

22

0928105001
ref: 22

SEAL,DUST(5.3X13X5)

€ 2.50

23

2324536200
ref: 23

HOLDER,DUST SEAL

€ 5.50

24

0311205123
ref: 24

SCREW

€ 1.50

25

0832201057
ref: 25

WASHER

€ 2.50

26

0944008026
ref: 26

SPRING

€ 2.00

27

2322236A00
ref: 27
-23222-39300

HOOK,CLUTCH RELEASE SCREW ARM

€ 5.50

all assemblies
