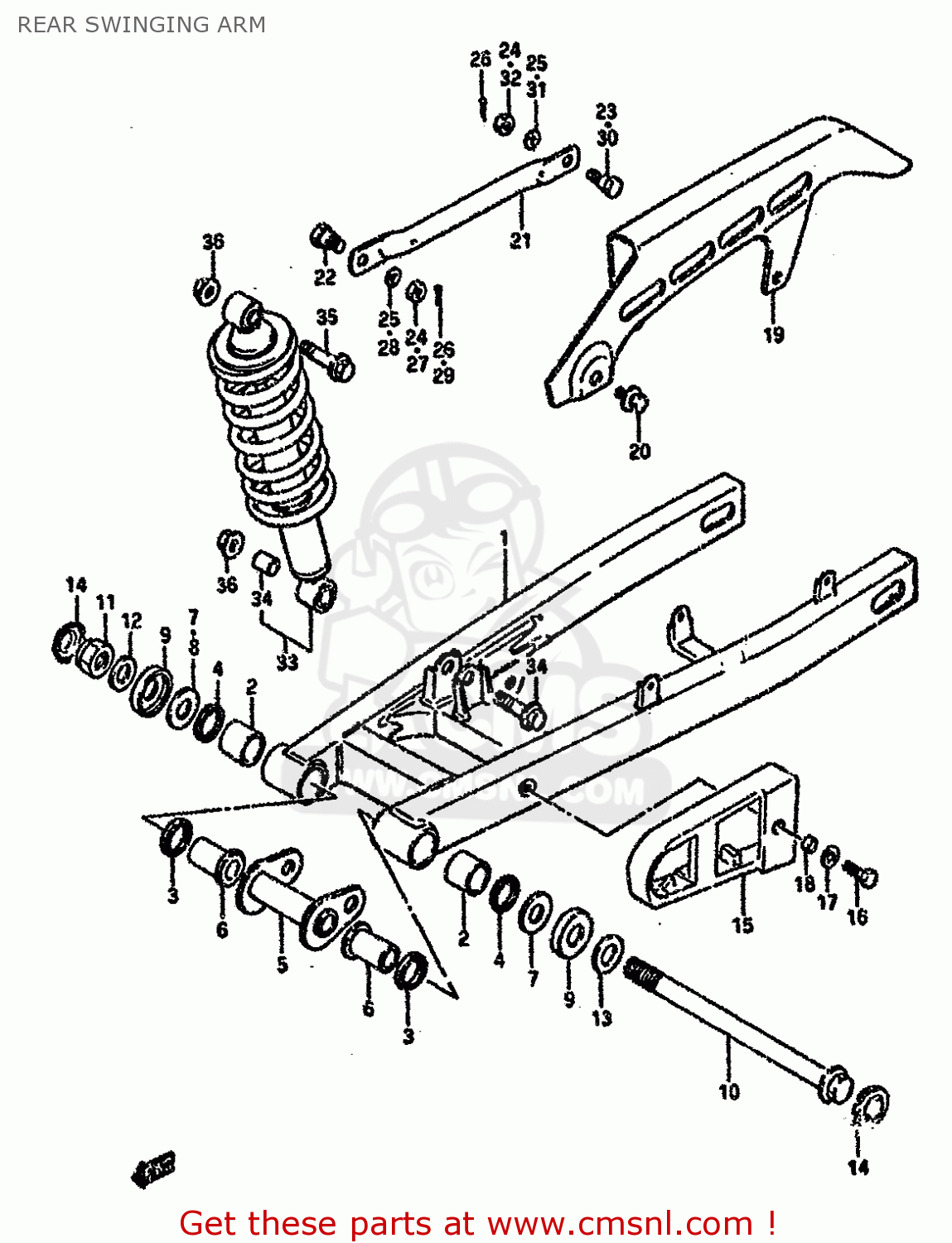

REAR SWINGING ARM

ref

part #

description

quantity

1

6100036A0313L
ref: 1
SILVER

SWINGING ARM ASSY, REAR

€ 221.50

2

6126113700
ref: 2

BUSHING,RR SWGARM PIVOT

€ 8.00

3

0928620001
ref: 3

SEAL,OIL(20X27X5)

€ 2.50

4

0928520005
ref: 4

OIL SEAL

€ 5.00

5

6128046A04
ref: 5

SPACER,CENTER

€ 0.00

6

6125136A00
ref: 6

SPACER,RR SWGARM PIVOT

€ 17.50

7

0821114321
ref: 7

WASHER

€ 4.00

8

0821114322
ref: 8

WASHER

€ 2.50

9

6262444B10
ref: 9

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

10

6121136A03
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 85.00

11

0915914019
ref: 11

NUT

€ 8.50

12

0916014027
ref: 12

WASHER(14.2X24X2.3)

€ 2.50

13

0916014047
ref: 13

WASHER

€ 3.00

14

4149914A00019
ref: 14

CAP,CUSHION LEVER

€ 3.00

15

6127336A01
ref: 15

BUFFER, CHAIN TOUCH DIFFENCE

€ 24.00

16

0110706206
ref: 16

BOLT,M6X1X20

€ 2.00

17

0916006019
ref: 17

WASHER(6.5X16X1.2)

€ 1.50

18

0918006142
ref: 18

SPACER

€ 1.50

19

6131136A00
ref: 19

CASE,CHAIN

€ 30.50

20

0911606060
ref: 20

BOLT 6X8

€ 2.50

21

6431136A0013L
ref: 21

TORQUELINK,RR

€ 11.50

22

0911108012
ref: 22

BOLT(8X22.5)

€ 3.00

23

0911108013
ref: 23
E4

BOLT(8X26.5)

€ 3.00

24

0914008008
ref: 24
E4

NUT

€ 1.50

25

0832121088
ref: 25
E4

LOCK WASHER

€ 2.00

26

0411120208
ref: 26
E4

PIN 20X20

€ 1.50

27

0914008008
ref: 27
E22

NUT

€ 1.50

28

0832121088
ref: 28
E22

LOCK WASHER

€ 2.00

29

0411120208
ref: 29
E22

PIN 20X20

€ 1.50

30

0911108067
ref: 30
E22

BOLT(8X24)

€ 4.00

31

0832221088
ref: 31
E22

WASHER

€ 2.00

32

0831921088
ref: 32
E22

NUT

€ 1.50

33

6210036A02
ref: 33

SHOCK ABSORBER ASSY,REAR

€ 309.00

34

6218736A10
ref: 34

COLLAR,ABSORBER ASSY BUSHING

€ 9.50

35

0910310044
ref: 35

BOLT(10X40)

€ 3.00

36

0831931107
ref: 36

NUT

€ 3.00
