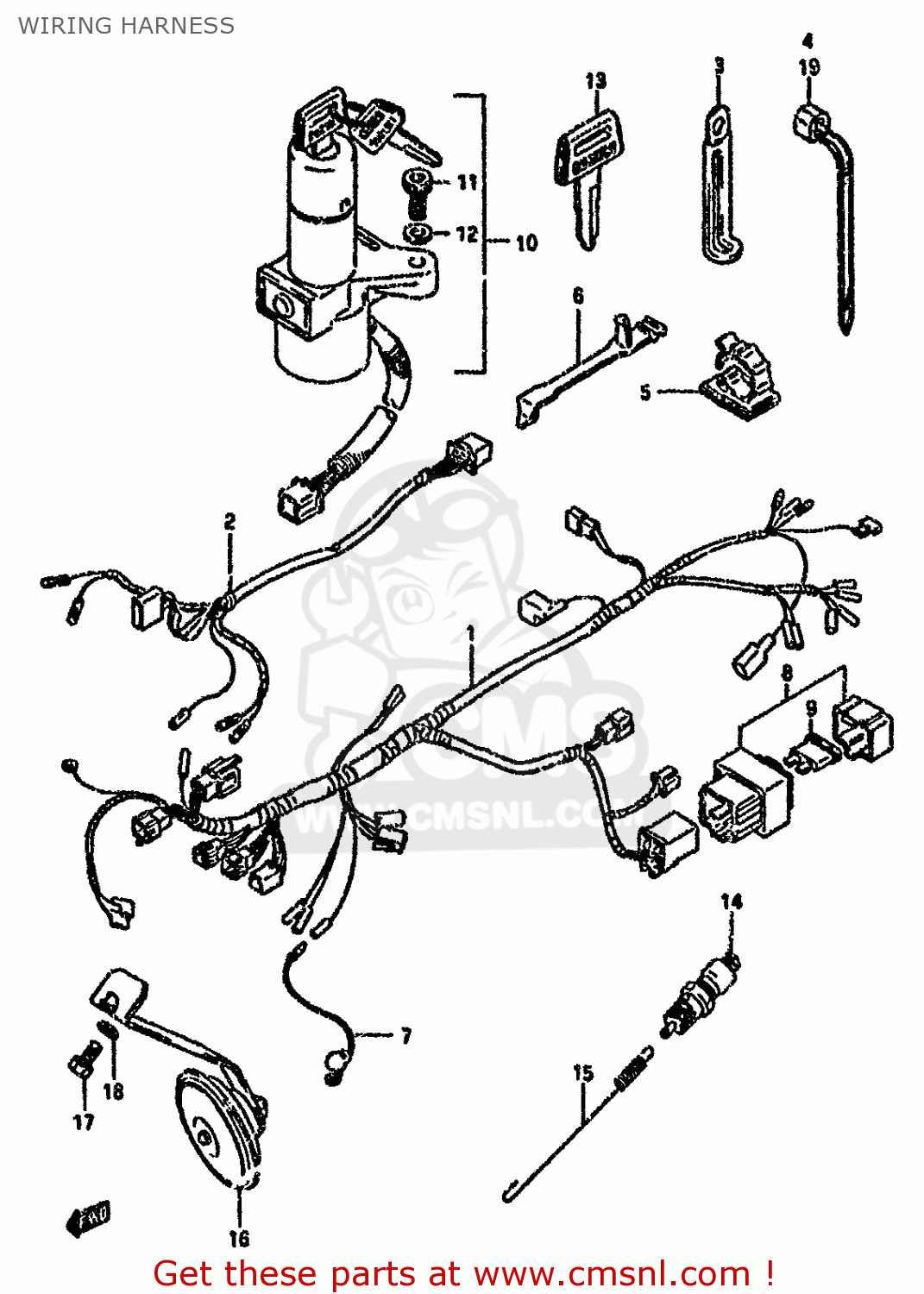

WIRING HARNESS

ref

part #

description

quantity

1-1

3661046A00
ref: 1-1
MODEL F

HSTNRDD,EITINH NO.1

€ 0.00

1-2

3661046A10
ref: 1-2
MODEL H/J/M,~F.NO.10

HARNESS,WIRING NO.1

€ 102.50

1-3

3661046A11
ref: 1-3
MODEL M,F.NO.107948~

HARNESS,WIRING NO.1

€ 102.50

2

3662046A00
ref: 2

HARNESS,WIRING NO.2

€ 20.50

3

0940406426
ref: 3

CLAMP

€ 3.00

4-1

0940714403
ref: 4-1

CLAMP(L:125)

€ 2.50

4-2

0940718403
ref: 4-2

CLAMP L:165

€ 2.50

5

0940800098
ref: 5

CLAMP

€ 5.50

6

0940707401
ref: 6

CLAMP(L:55)

€ 1.50

7

3685138401
ref: 7

WIRE,WATER TEMPERATURE GAUGE

€ 4.50

8

3674004701
ref: 8

BOX ASSY,FUSE

€ 16.00

9

0948115101
ref: 9

FUSE(15A)

€ 1.50

10-1

3710046A02
ref: 10-1
MODEL F E4

SWITCH ASSY,IGNITION

€ 0.00

10-2

3711046A02
ref: 10-2
MODEL F E22

SWITCH ASSY,IGNITION

€ 110.00

10-3

3710046A10
ref: 10-3
MODEL H/J/M E4

LOCK ASSY,STEERING

€ 0.00

10-4

3711046A10
ref: 10-4
MODEL H/J/M E22

SWITCH ASSY,IGNITION

€ 108.00

11

0711006165
ref: 11
FROM 37152-47011

BOLT

€ 3.00

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

13

3714516700
ref: 13
OPT

KEY,BLANK

€ 11.00

14

3774024A00
ref: 14

SWITCH ASSY,STOP LAMP

€ 20.50

15

0944306005
ref: 15

SPRING

€ 6.00

16-1

3850036A11
ref: 16-1
E4

HORN ASSY

€ 53.50

16-2

3850036A01
ref: 16-2
E22

HORN ASSY

€ 0.00

17

0110706125
ref: 17

BOLT

€ 2.00

18

0832121064
ref: 18

WASHER,LOCK

€ 2.00

19

0940725401
ref: 19

CLAMP(L:235)

€ 4.00

all assemblies
