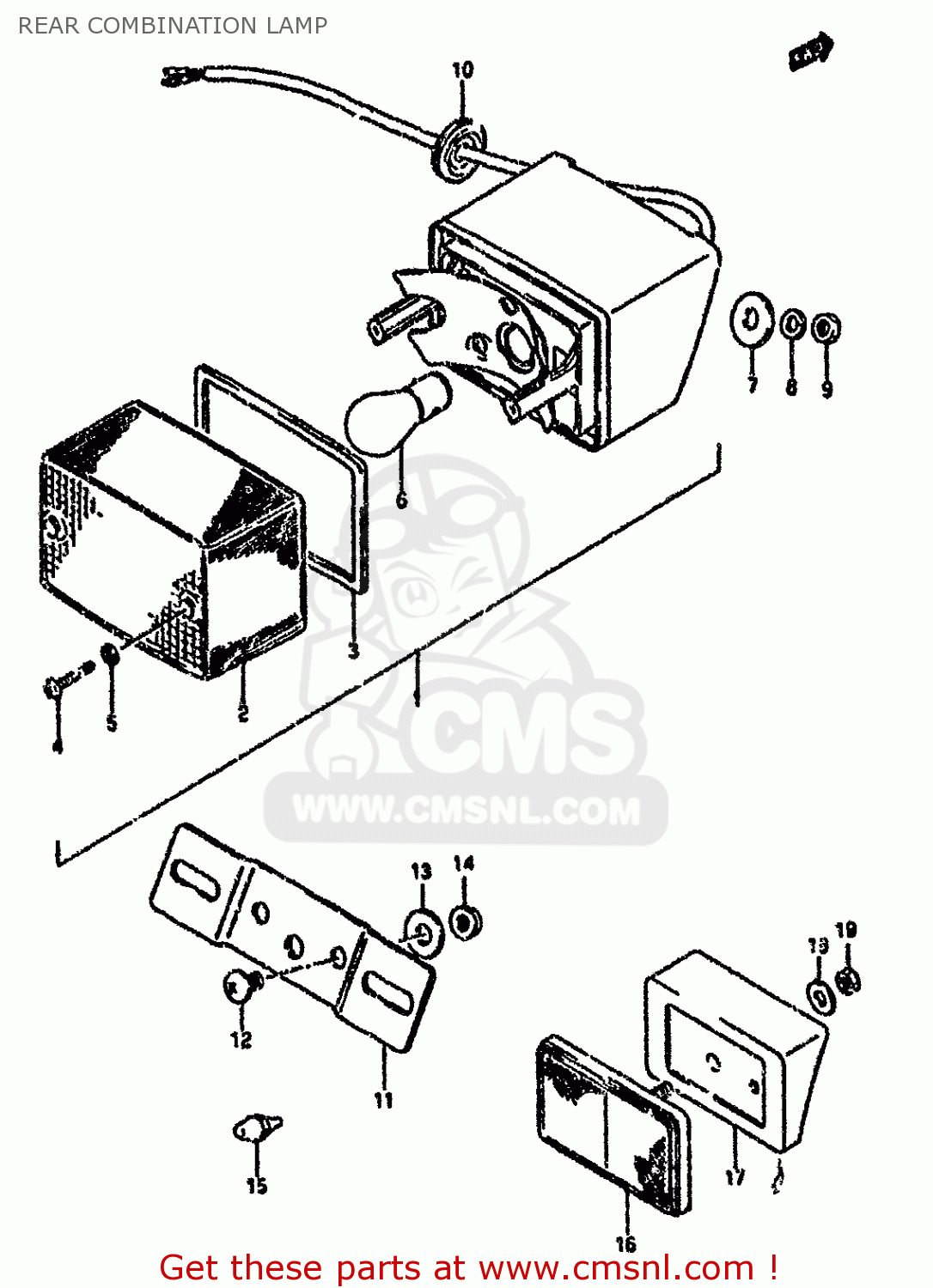

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3571036A21
ref: 1-1
E4

LAMP ASSY, REAR COMBINATION

€ 106.00

1-2

3571036A60
ref: 1-2
E22

LAMP ASSY,REAR COMBINATION

€ 106.00

2-1

3571213600
ref: 2-1
E4

LENS,LAMP RR

€ 19.00

2-2

3571236A70
ref: 2-2
E22

LENS

€ 19.00

3

3571313600
ref: 3

GASKET,RR COMBI LAMP LENS (NAS)

€ 3.50

4

0321104207
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6

BULB(12V21/5W)

€ 6.00

7

0916006012
ref: 7

WASHER(6,5X22X1.6)

€ 2.00

8

0832101063
ref: 8

LOCK WASHER

€ 2.00

9

0831000063
ref: 9

NUT 6MM

€ 2.00

10-1

0930807011
ref: 10-1
MODEL F/H/J

GROMMET

€ 3.50

10-2

0930807013
ref: 10-2
MODEL M

GROMMET

€ 3.50

11

3592736510
ref: 11

BRACKET,PLATE LICENSE

€ 8.50

12

0214206123
ref: 12

SCREW 6X12

€ 2.00

13

0916006060
ref: 13

WASHER

€ 2.00

14

0831610063
ref: 14

NUT

€ 2.50

15

0932106023
ref: 15

CUSHION

€ 2.00

16

3597036A00
ref: 16

REFLEX REFIECTOR, REAR

€ 13.00

17

3597736A00
ref: 17

SPACER

€ 3.50

18

0832201053
ref: 18

WASHER

€ 2.50

19

0831000053
ref: 19

NUT

€ 2.50
