FRONT MASTER CYLINDER

RG80C 1987 (H) FRANCE GERMANY (E04 E22)

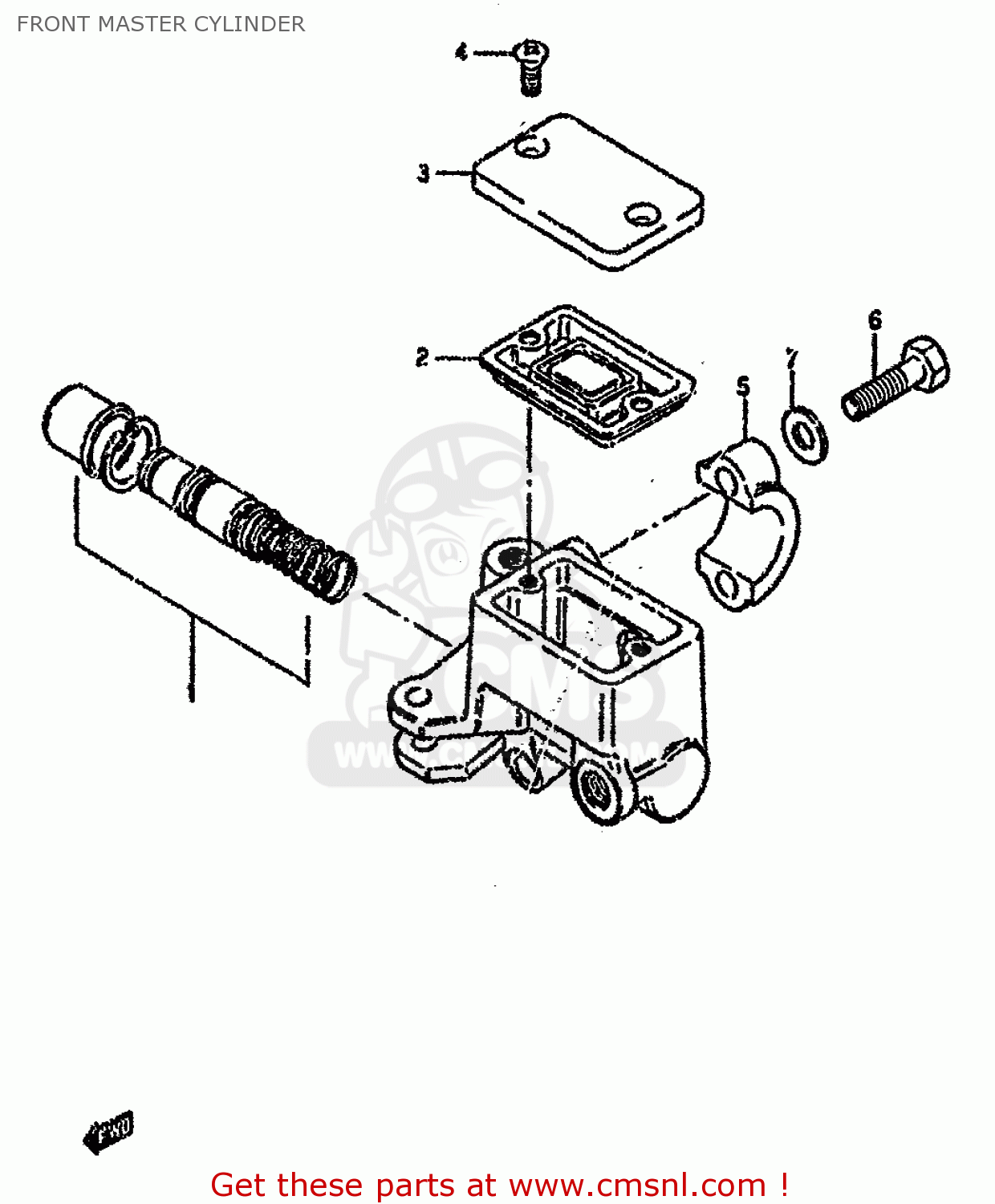

Front master cylinder diagram RG80C 1987 (H) FRANCE GERMANY (E04 E22)

FRONT MASTER CYLINDER RG80C 1987 (H) FRANCE GERMANY (E04 E22)

FRONT MASTER CYLINDER RG80C 1987 (H) FRANCE GERMANY (E04 E22)

prices are in EUR

ref

part #

description

quantity

0

5960004710
ref: 0

CYLINDER ASSY,FR MASTER

€ 212.00

1

5960036810
ref: 1

PISTON & CUP SET

€ 38.50

2

5966704700
ref: 2

DIAPHRAGM

€ 8.00

3

5966904710
ref: 3
-69669-24A01

CAP

€ 12.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967136500
ref: 5

HOLDER

€ 10.00

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
