COWLING (MODEL M AG3,1ZX)

RG80C 1987 (H) FRANCE GERMANY (E04 E22)

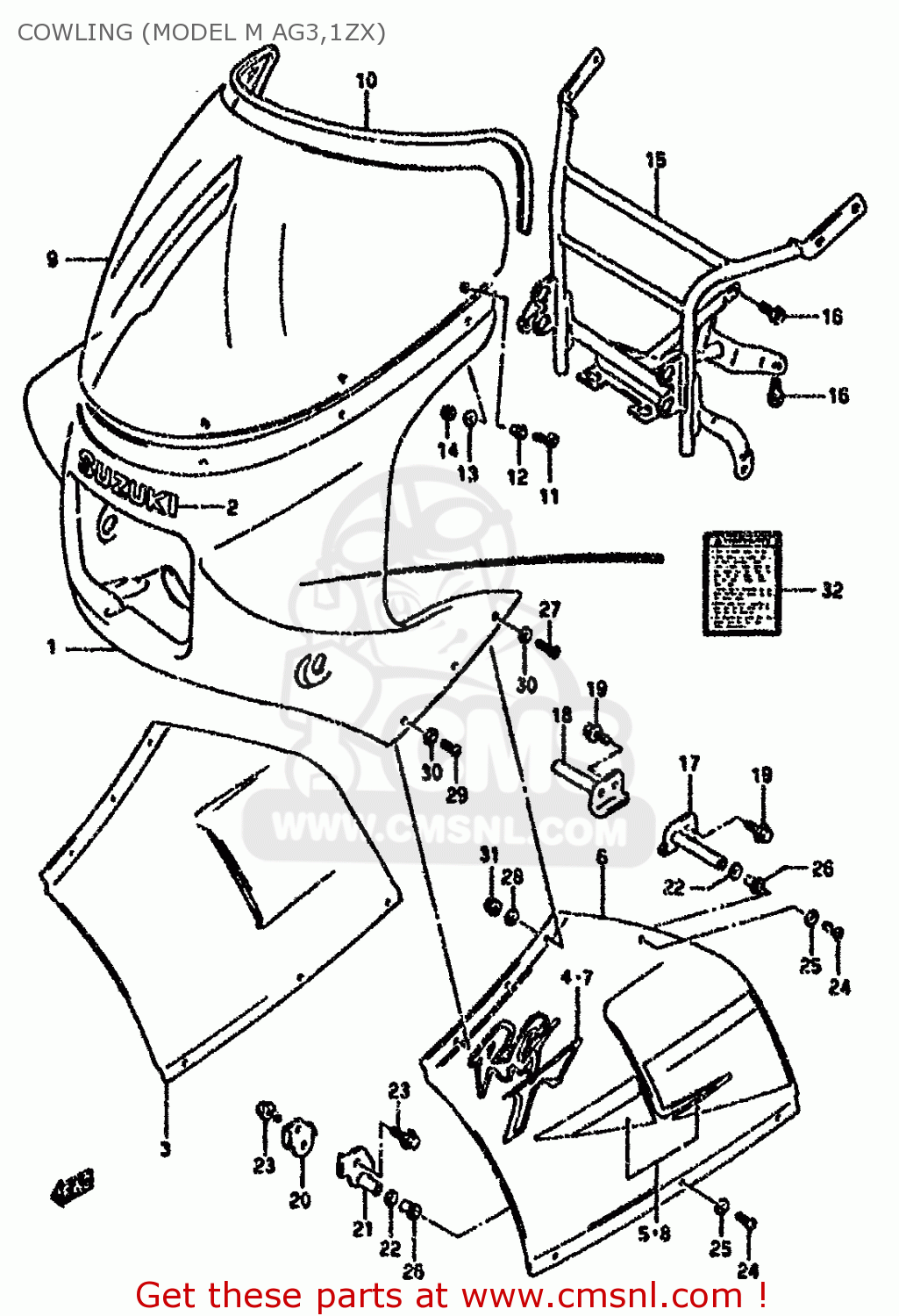

Cowling (model m ag3,1zx) diagram RG80C 1987 (H) FRANCE GERMANY (E04 E22)

COWLING (MODEL M AG3,1ZX) RG80C 1987 (H) FRANCE GERMANY (E04 E22)
COWLING (MODEL M AG3,1ZX) RG80C 1987 (H) FRANCE GERMANY (E04 E22)
COWLING (MODEL M AG3,1ZX) RG80C 1987 (H) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
9441048A301TU
ref: 1-1
FOR AG3
BODY,COWLING (PURPLE)
€ 0.00
1-2
9441048A30019
ref: 1-2
FOR 1ZX
BODY,COWLIG (BLACK)
€ 302.50
2
6818505C1013L
ref: 2
EMBLEM,COWLING UPR
6818505C1013L
€ 10.50
3-1
9443048A401TU
ref: 3-1
FOR AG3
COVER,COWL SIDE RH (PURPLE)
€ 145.50
3-2
9443048A40019
ref: 3-2
FOR 1ZX
COVER,COWL SIDE RH (BLACK)
€ 0.00
4-1
6868148A00AH8
ref: 4-1
FOR 1TU
EMBLEM,RG
€ 0.00
4-2
6868148A00AH9
ref: 4-2
FOR 019
EMBLEM,RG
€ 0.00
5-1
6868048A00B8T
ref: 5-1
FOR 1TU
TAPE SET,SIDE RH
€ 0.00
5-2
6868048A00AH5
ref: 5-2
FOR 019
TAPE SET,SIDE RH
€ 0.00
6-1
9444048A401TU
ref: 6-1
FOR AG3
COVER,COWL SIDE LH (PURPLE)
€ 145.50
6-2
9444048A40019
ref: 6-2
FOR 1ZX
COVER,COWL SIDE LH (BLACK)
€ 145.50
7-1
6868148A00AH8
ref: 7-1
FOR 1TU
EMBLEM,RG
€ 0.00
7-2
6868148A00AH9
ref: 7-2
FOR 019
EMBLEM,RG
€ 0.00
8-1
6869048A00B8T
ref: 8-1
FOR 1TU
TAPE SET,SIDE LH
€ 0.00
8-2
6869048A00AH5
ref: 8-2
FOR 019
TAPE SET,SIDE LH
€ 0.00
9
9461146A00
ref: 9
E22
WIND SCREE,COWLING
€ 238.00
10
9463136A00
ref: 10
MOLDING, SCREEN
9463136A00
€ 15.00
11
0913905024
ref: 11
SCREW(5X14)
0913905024
€ 2.50
12
0932005008
ref: 12
CUSHION
0932005008
€ 5.00
13
0832201053
ref: 13
WASHER
0832201053
€ 2.50
14
0831921055
ref: 14
NUT 8MM
0831921055
€ 1.50
15
9451036A01
ref: 15
BRACE,COWLING
€ 85.00
16
0712006163
ref: 16
BOLT MAGNETO S
0712006163
€ 2.50
17
9452036A00
ref: 17
BRACE,COWLING RR
9452036A00
€ 9.00
18
9459036A00
ref: 18
BRACE,REAR RH
9459036A00
€ 8.00
19
0155006163
ref: 19
BOLT
0155006163
€ 2.50
20
9453036A00
ref: 20
BRACE,SIDE RH
9453036A00
€ 6.50
21
9454036A00
ref: 21
BRACE,SIDE LH
€ 8.00
22
0916010026
ref: 22
WASHER (10.5X18X1)
0916010026
€ 2.00
23
0155006163
ref: 23
BOLT
0155006163
€ 2.50
24
0214205257
ref: 24
SCREW
0214205257
€ 1.00
25
0916105010
ref: 25
WASHER(5.2X11X1)
0916105010
€ 2.00
26
9461936A10
ref: 26
NUT
9461936A10
€ 6.50
27
0214206167
ref: 27
SCREW
0214206167
€ 2.00
28
0916006027
ref: 28
WASHER (6.5X20X1.2)
0916006027
€ 2.00
29
0214206207
ref: 29
SCREW
0214206207
€ 2.00
30
0916106008
ref: 30
WASHER(6.5X13X1)
0916106008
€ 1.50
31
0831620063
ref: 31
NUT
0831620063
€ 2.00
32
6861248B20
ref: 32
LABEL (WARNING,SCREEN)
6861248B20
€ 6.50
39
0151706167
ref: 39
OPT
BOLT 6X16
0151706167
€ 1.50
40
0214205207
ref: 40
OPT
SCREW
0214205207
€ 2.00
41
0832221057
ref: 41
OPT
WASHER
0832221057
€ 2.50
42
9461936A10
ref: 42
OPT
NUT
9461936A10
€ 6.50
43
0214205128
ref: 43
OPT
SCREW
0214205128
€ 1.50
44
0914805023
ref: 44
OPT
NUT
0914805023
€ 1.50
45
0914805023
ref: 45
OPT
NUT
0914805023
€ 1.50
42
0214205128
ref: 42
OPT
SCREW
0214205128
€ 1.50
43
0914805023
ref: 43
OPT
NUT
0914805023
€ 1.50
