SEAT TAIL COVER (MODEL M)

RG80C 1987 (H) FRANCE GERMANY (E04 E22)

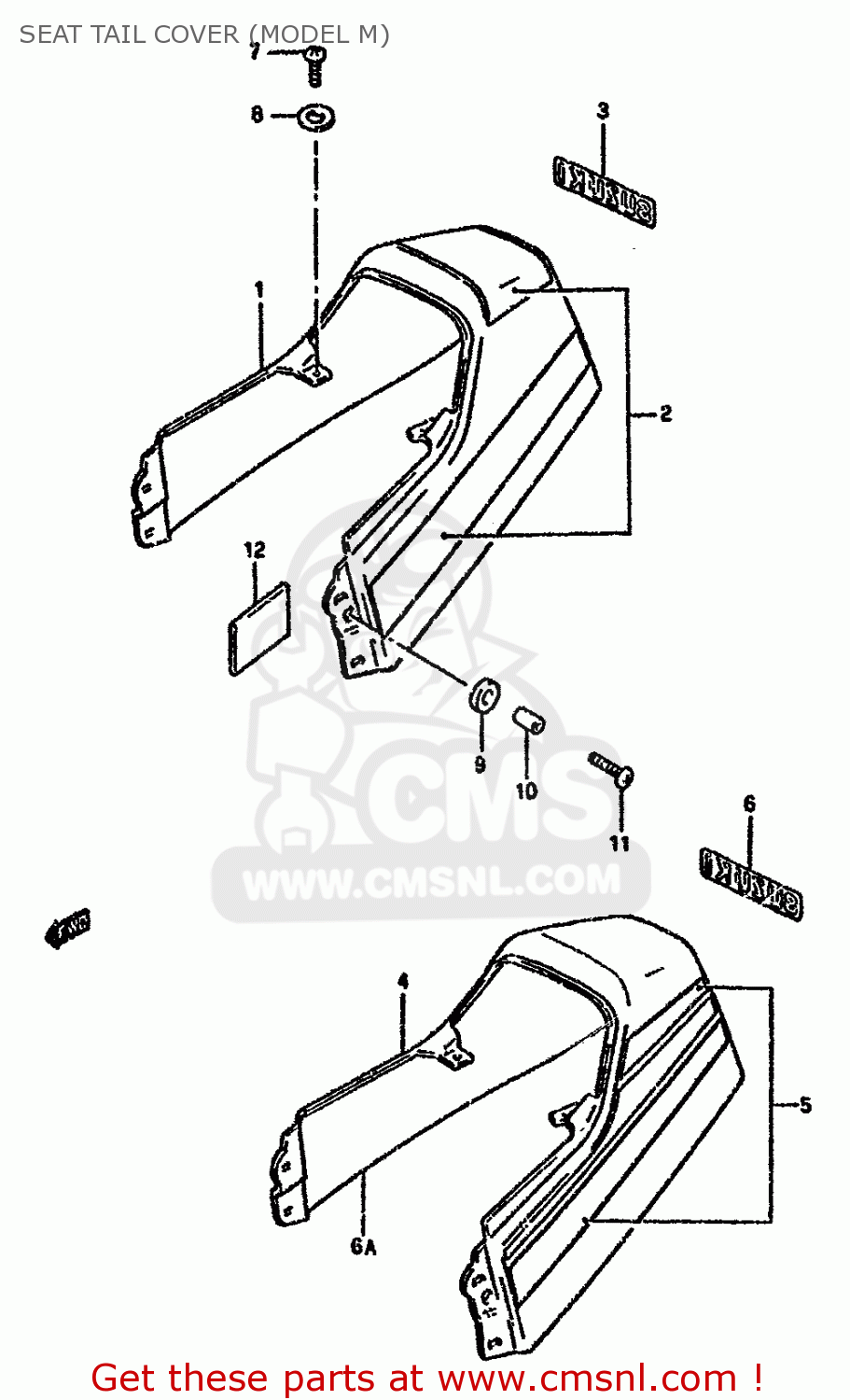

Seat tail cover (model m) diagram RG80C 1987 (H) FRANCE GERMANY (E04 E22)

SEAT TAIL COVER (MODEL M) RG80C 1987 (H) FRANCE GERMANY (E04 E22)
SEAT TAIL COVER (MODEL M) RG80C 1987 (H) FRANCE GERMANY (E04 E22)
SEAT TAIL COVER (MODEL M) RG80C 1987 (H) FRANCE GERMANY (E04 E22)
prices are in EUR
ref
part #
description
quantity
1-1
4551046A500CY
ref: 1-1
FOR 3HZ
COVER, SEAT TAIL (BLACK)
€ 182.00
1-2
4551008A400CY
ref: 1-2
E22,FOR 3HZ
COVER,SEAT TAIL (BLACK)
€ 0.00
2
6816037A103JA
ref: 2
FOR 0CY
TAPE SET, SEAT TAIL
€ 54.00
3
6816516B00742
ref: 3
FOR 0CY
EMBLEM
€ 5.50
4-1
4551048A1030H
ref: 4-1
FOR 3UA
COVER,SEAT TAIL (WHITE)
€ 0.00
4-2
4551048A3030H
ref: 4-2
E22,FOR 3UA
COVER,SEAT TAIL (WHITE)
€ 149.50
5
6816036A80C09
ref: 5
FOR 30H
TAPE SET, SEAT TAIL
€ 0.00
6
68166313000NE
ref: 6
FOR 30H
EMBLEM
68166313000NE
€ 7.00
6A-1
4551136A101UJ
ref: 6A-1
E22,FOR AG3
COVER,SEAT TAIL (SILVER)
€ 149.50
6A-2
4551136A1017U
ref: 6A-2
E22,FOR 1ZX
COVER,SEAT TAIL (GRAY)
€ 149.50
7-1
0214206207
ref: 7-1
FOR 3HZ,3UA
SCREW
0214206207
€ 2.00
7-2
0214206203
ref: 7-2
FOR AG3,1ZX
SCREW
0214206203
€ 2.00
8
0832201067
ref: 8
FOR 3HZ,3UA
WASHER
0832201067
€ 2.00
9
0932009004
ref: 9
CUSHION
0932009004
€ 2.50
10
0918006073
ref: 10
SPACER
0918006073
€ 2.00
11
0913606017
ref: 11
SCREW(6X16)
0913606017
€ 2.50
12
4551536A00
ref: 12
CUSHION
€ 0.00
11-2
4551046A2039K
ref: 11-2
E22,FOR 9EK
COVER,SEAT TAIL (BLUE)
€ 149.50
12
6816036A509EK
ref: 12
FOR 39K
TAPE SET,TAIL COVER
€ 37.00
13
6816631300064
ref: 13
FOR 39K
EMBLEM(WHITE)
6816631300064
€ 3.50
14-1
4551046A0025G
ref: 14-1
FOR 2KN
COVER,SEAT TAIL (ORANGE)
€ 0.00
14-2
4551046A3025G
ref: 14-2
E22,FOR 2KN
COVER,SEAT TAIL (ORANGE)
€ 149.50
15
6816036A602RL
ref: 15
FOR 25G
TAPE SET,TAIL COVER
€ 0.00
16
6816631300019
ref: 16
FOR 25G
EMBLEM
6816631300019
€ 4.00
17
0211206207
ref: 17
SCREW
0211206207
€ 2.00
18
0832201067
ref: 18
WASHER
0832201067
€ 2.00
19
0916006028
ref: 19
WASHER(6.5X18X1)
0916006028
€ 1.50
20
0918006073
ref: 20
SPACER
0918006073
€ 2.00
21
0932009004
ref: 21
CUSHION
0932009004
€ 2.50
22
0214206167
ref: 22
SCREW
0214206167
€ 2.00
23
4551536A00
ref: 23
CUSHION
€ 0.00
24
4155049200
ref: 24
HOLDER,TOOL
€ 10.00
25
0916006006
ref: 25
WASHER
0916006006
€ 2.00
26
0831000063
ref: 26
NUT 6MM
0831000063
€ 2.00
27
0946200072
ref: 27
BAND
0946200072
€ 3.50
28
0980000298
ref: 28
TOOL ASSY
€ 24.00
26
0980000298
ref: 26
TOOL ASSY
€ 24.00
